Электрический велосипед Raymon Trailray 170 Pro 29" 2025 black stealth-iridiscent

Bicycle specifications

Yamaha PW-X3: Elevating the Pure Ride Concept

Yamaha takes its Pure Ride concept to the next level with the all-new PW-X3. Lighter, smaller, and with higher torque output than ever before, this next-generation drive unit delivers instant response for outstanding off-road performance.

High Output

Through a complete drive unit redesign, PW-X3 delivers 85Nm of motor torque throughout a wide cadence range. The PW-X3 design is committed to motor performance, maintaining high torque output figures despite the drastic size and weight reduction.

Natural and Agile Response to Pedaling

Right from the beginning, every PW-X series drive unit has featured the 128mm ISIS interface bottom bracket axle that gives the best Q-factor in any e-bike system. Yamaha Motor’s PW-X3 continues with this idealized layout, making it especially attractive to expert riders.

Exclusive mechanical components and control programs realize an unparalleled level of maneuverability. The reduced backlash of the ratchet mechanism and lightweight designs for major moving parts, such as the axle shaft and reduction gear, contribute to a quicker, more direct response to pedaling.

Fundamental design choices create the Yamaha distinctive feature of providing instant support with full torque immediately after pressure is applied to the pedal, not after certain crank turns.

Compact & Lightweight

The PW-X3 is approximately 20% smaller and 10% lighter than the PW-X2 model. Its ultra-compact dimensions offer e-bike manufacturers greater freedom to develop nice-looking bikes aiming for ideal frame geometry and suspension kinematics, as well as increased ground clearance.

Automatic Support Mode for E-MTB Ride

The PW-X3's exclusively tuned Automatic Support Mode delivers optimal assist in settings ranging from trail riding to racing by choosing from the bike's three riding modes - Eco, Standard, and High - as conditions demand. The system reduces assist on level roads but boosts power on steep inclines to offer fine-grained assist feel that makes it seem like it's reading the rider's mind.

Specifications

• Drive unit: Center Motor
• Weight: 2.75 kg
• Rated Output: 250 W
• Max. Torque: 85 Nm
• Max. Assist Speed: 25 km/h
• Assist Modes: 5 modes
• EXPW
• HIGH
• STD
• ECO
• +ECO
• Automatic Support Mode: Available

Yamaha PW-X3: Naujos kartos elektros variklis

Yamaha savo Pure Ride koncepcijа perkelia б kitа lygmenб, pristatydama visiрkai naujа PW-X3. Lengvesnis, maюesnis ir didesnб sukimo momentа nei bet kada anksиiau iрvystantis naujos kartos elektros variklis uюtikrina greitа reakcijа ir puikias eksploatacines savybes bekelлje.

Didelл galia

PW-X3 visiрkai pertvarkytas variklis uюtikrina 85 Nm sukimo momentа plaиiame minimo daюnio diapazone. PW-X3 konstrukcija skirta variklio naрumui, todлl, nepaisant smarkiai sumaюлjusio dydюio ir svorio, iрlaikomi dideli sukimo momento rodikliai.

Natыrali ir verюli reakcija б pedalш mynimа

Nuo pat pradюiш kiekviename PW-X serijos variklyje buvo naudojamas 128 mm ISIS miniklio veleno standartas, kuris uюtikrina geriausiа Q-faktoriш bet kurioje el. dviraиio sistemoje. Naujasis Yamaha Motor PW-X3 tжsia рб idealizuotа iрdлstymа, todлl jis ypaи patrauklus patyrusiems dviratininkams.

Iрskirtiniai mechaniniai komponentai ir valdymo programa realizuoja neprilygstamа manevringumo lygб. Sumaюintas terkрlinio mechanizmo atsilikimas ir lengvos pagrindiniш judanиiш daliш, tokiш kaip aрies velenas ir reduktorius, konstrukcijos padeda greiиiau ir tiesiau reaguoti б pedalш mynimа.

Kompaktiрkas ir lengvas

Naujasis PW-X3 yra maюdaug 20 % maюesnis ir 10 % lengvesnis uю PW-X2 modelб. Dлl itin kompaktiрkш matmenш el. dviraиiш gamintojai gali laisviau kurti graюiai atrodanиius dviraиius, siekdami idealios rлmo geometrijos ir pakabos kinematikos, taip pat didesnлs proрvaisos.

Automatinis galios palaikymo reюimas

PW-X3 iрskirtinai sureguliuotas automatinis galios palaikymo reюimas uюtikrina optimaliа pagalbа nuo paprasto vaюiavimo iki lenktyniш, pasirinkus vienа iр trijш dviraиio vaюiavimo reюimш - ekologiрkа, standartinб ir aukрtа, priklausomai nuo sаlygш. Sistema sumaюina pagalbа vaюiuojant lygiais keliais, bet padidina galiа vaюiuojant staиiomis бkalnлmis, kad uюtikrintш tiksliа pagalbа, dлl kurios atrodo, kad sistema skaito dviratininko mintis.

Specifikacijos

• Variklis: Бmontuotas centre
• Svoris: 2,75 kg
• Nominali galia: 250 W
• Didю. Sukimo momentas: 85 Nm
• Maksimalus pagalbinis greitis: 25 km/val.
• Reюimai:
  • EXPW
  • DIDELIS
  • STD
  • ECO
  • +ECO
• Automatinis galios palaikymo reюimas: Taip

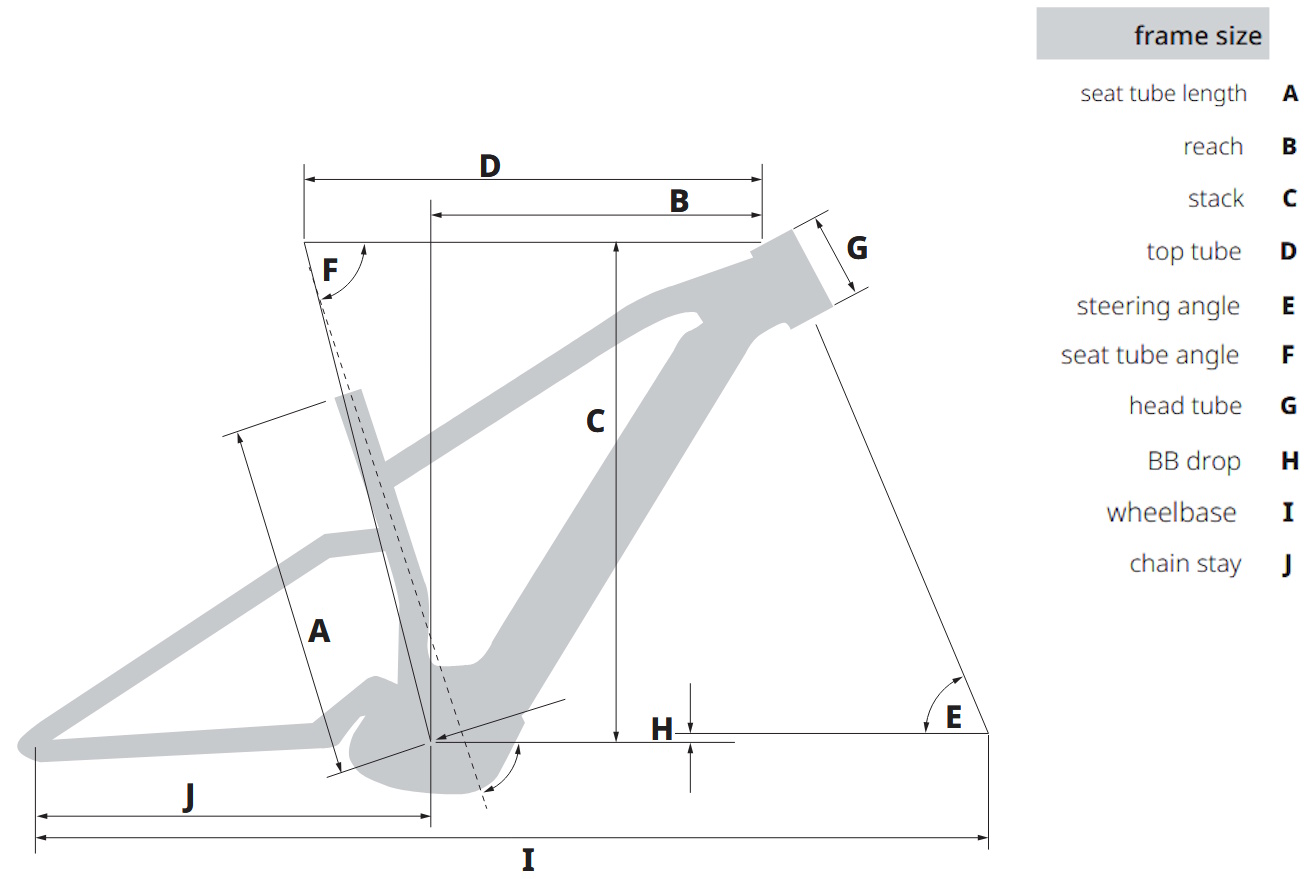

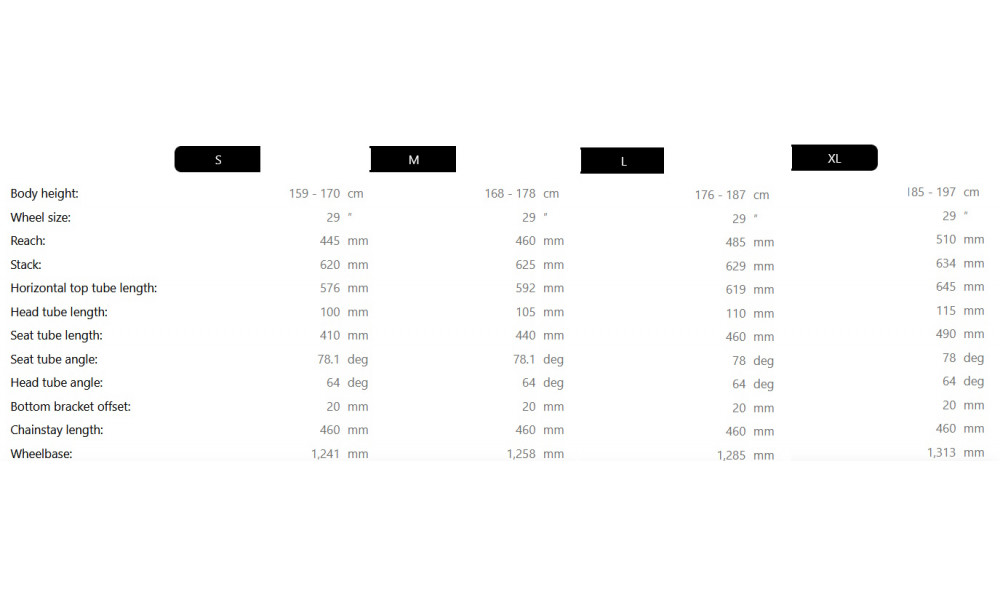

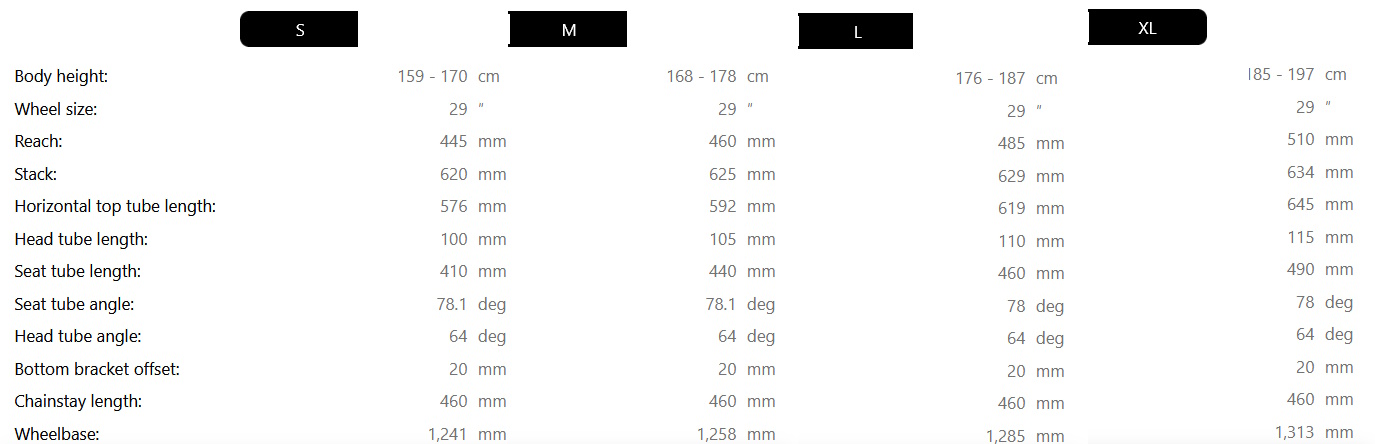

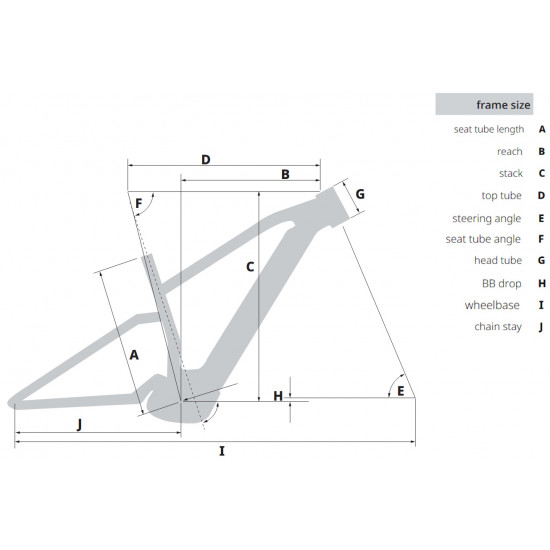

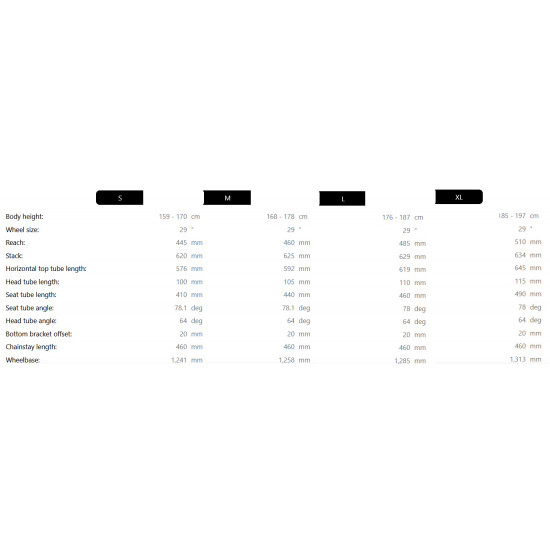

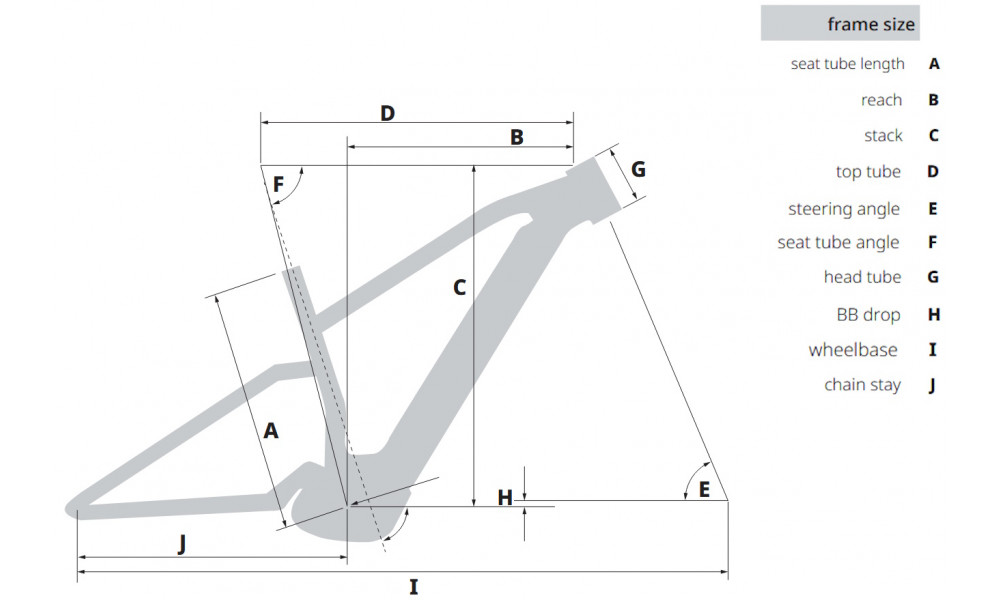

Frame geometry

• Seat tube length: 410 mm
• Reach: 445 mm
• Stack: 620 mm
• Top tube: 576 mm
• Steering angle: 64 mm
• Seat tube angle: 72 mm
• Head tube: 100 mm
• BB drop: 20 mm
• Wheelbase: 1241 mm
• Chain stay: 460 mm
• Crank length: 114 mm
• Stem length: 40 mm
• Handlebar width: 780 mm
• Seatpost drop: 125 mm
• Ground clearance: 270 mm
• Standover: 770 mm
