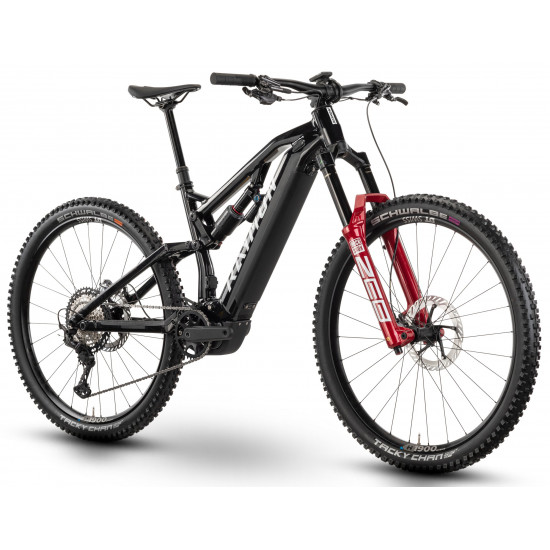

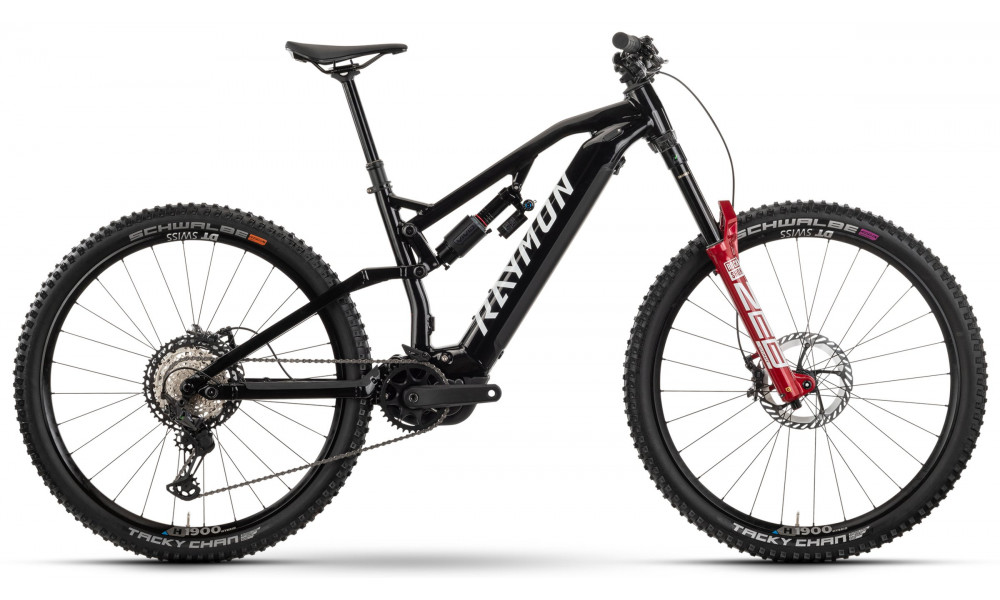

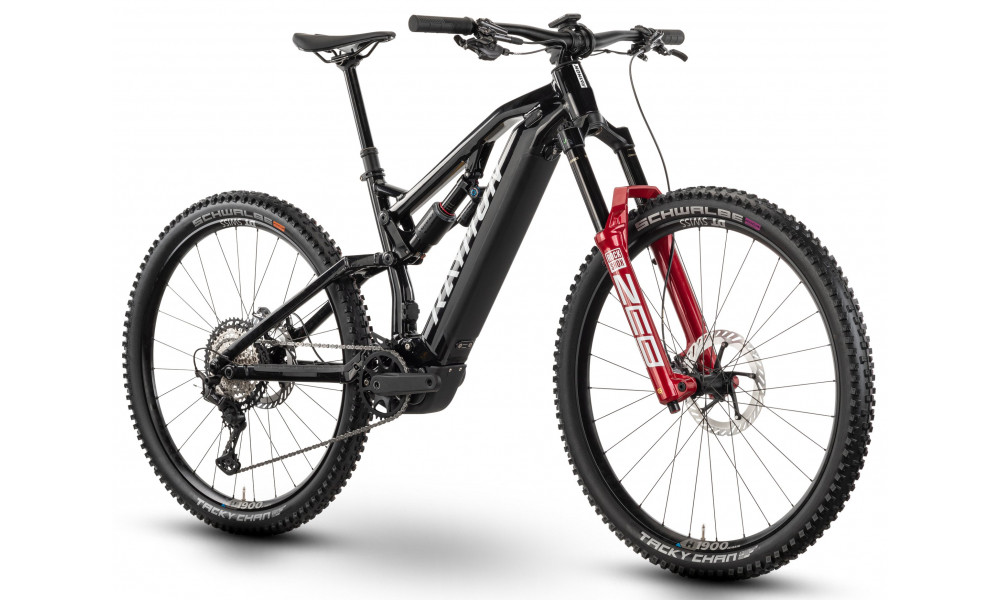

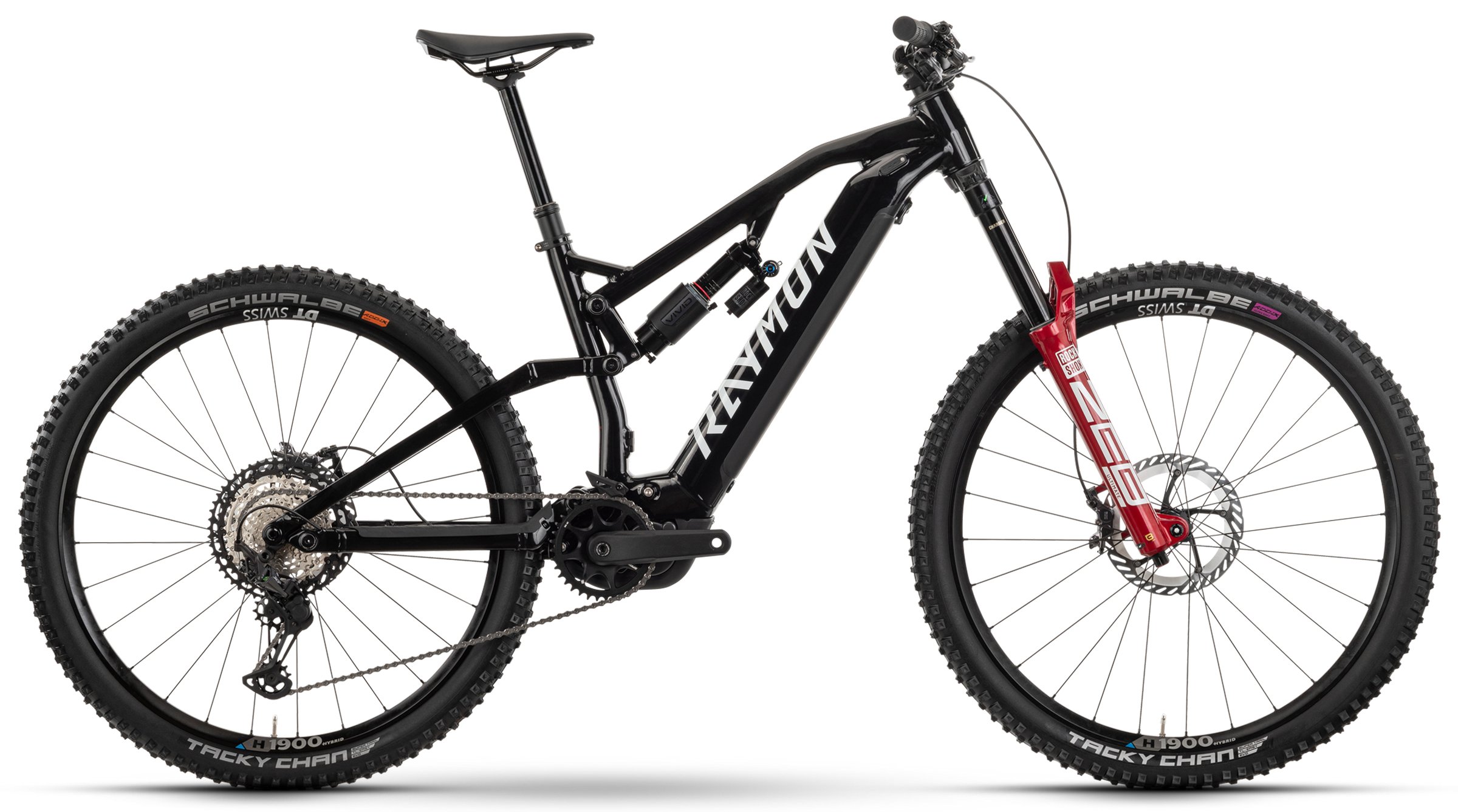

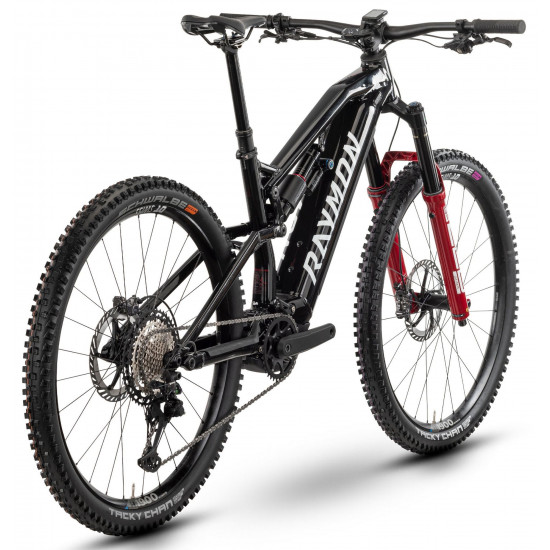

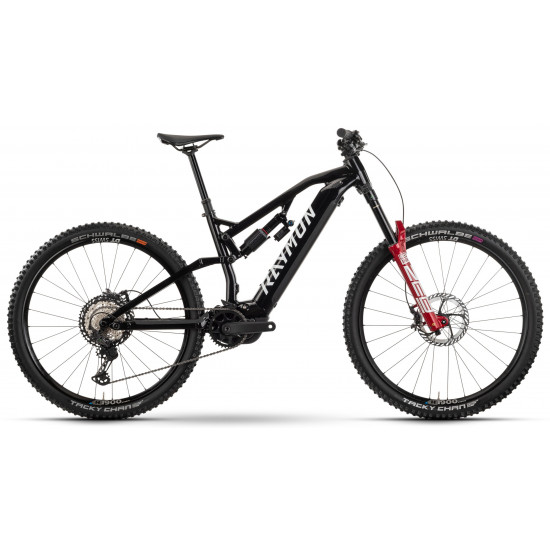

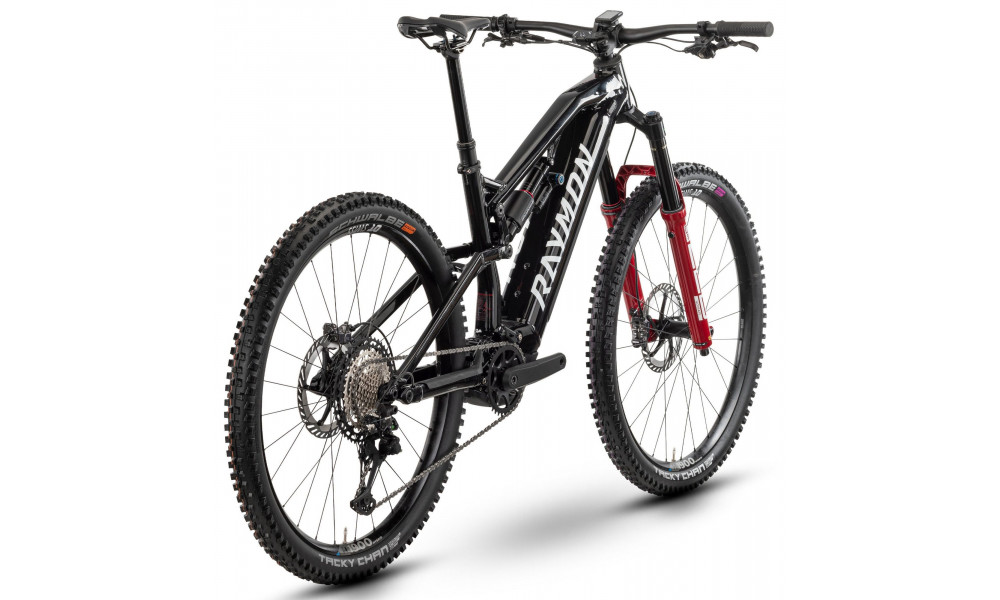

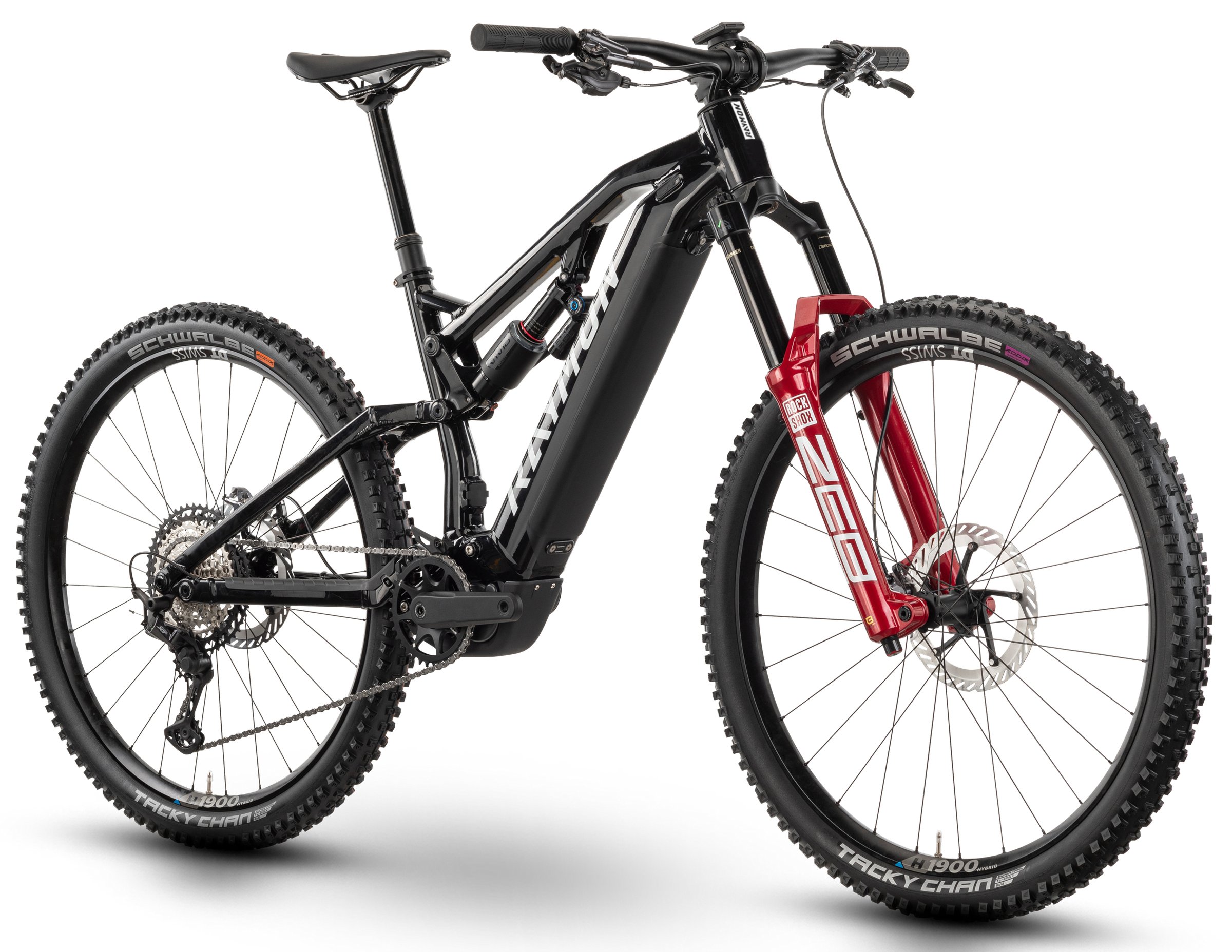

Электрический велосипед Raymon Trailray 170 Ultra 29" 2025 black-white-red

Bicycle specifications

PW-XM Drive Unit

With a maximum torque of 85 Nm and weighing only 2.6 kg, the PW-XM is Yamaha Motor's premium eMTB drive unit. Equipped with lightweight Magnesium housing, produced using Yamaha's extensive casting know-how, this high-tech motor has the highest torque-to-weight ratio among Yamaha eBike Systems.

Pure Ride DNA

To accomplish the Mission, the PW-XM carries in its DNA the "Pure Ride" development concept inherited from our X series of flagship drive units. The unit delivers 85 Nm of motor torque throughout a wide cadence range. Mechanical parts and software settings come together for sharp response, creating the distinctive Yamaha feature of providing instant support with full torque immediately after pressure is applied to the pedal, not after a certain crank turn.

Pedaling Efficiency

The 128mm ISIS interface bottom bracket axle allows for an ideal Q-factor, maximizing pedaling efficiency.

Innovative Magnesium Casting

To step up its game, Yamaha leverages its extensive magnesium casting know-how acquired through years of motorsports applications. The high strength-to-weight ratio of magnesium material used in the motor housing plays a key role in achieving the low weight of 2.6 kg. Yamaha's expertise in working with complex materials also enhances heat management measures, ensuring consistent performance and high reliability.

Manufacturing Excellence

The PW-XM pays homage to its birthplace: Mori-machi, Japan. Yamaha Motor Electronics factory, located in Mori-machi, is the world's longest-running eBike drive unit factory, known for its unyielding commitment to quality through the alignment of experience and refined autonomous processes. As a regional hub for mountain biking and cycling tourism, Mori-machi provides a bicycle-loving atmosphere ideal for the birth of the PW-XM.

Specifications

• Drive unit: Center Motor
• Weight: 2.6 kg
• Rated Output: 250 W
• Max. Torque: 85 Nm
• Max. Assist Speed: 25 km/h
• Assist Mode: 5 modes

Assist Modes:

• EXPW
• HIGH
• STD
• ECO
• +ECO

Automatic Support Mode

PW-XM Yamaha Motor eMTB Variklis

PW-XM yra aukриiausios klasлs Yamaha Motor eMTB variklis, kurio didюiausias sukimo momentas yra 85 Nm, o svoris - tik 2,6 kg. Рis paюangiшjш technologijш variklis, turintis lengvа magnio korpusа, pagamintа naudojant Yamaha iрsamiа liejimo patirtб, pasiюymi didюiausiu sukimo momento ir svorio santykiu tarp Yamaha eBike sistemш.

Kad бvykdytш рiа misijа, PW-XM savo DNR turi Pure Ride kыrimo koncepcijа, paveldлtа iр mыsш X serijos pavyzdiniш varikliш. Бrenginys uюtikrina 85 Nm variklio sukimo momentа plaиiame minimo daюnio diapazone.

Mechaninлs dalys ir programinлs бrangos nustatymai kartu uюtikrina aрtriа reakcijа. Dлl pasirinktш konstrukciniш sprendimш sukuriama iрskirtinл Yamaha savybл - momentinis palaikymas, kai visas sukimo momentas pasiekiamas iр karto paspaudus pedalа, o ne po tam tikro рvaistiklio pasukimo.

128 mm ISIS standarto miniklio velenas leidюia pasiekti idealш Q faktoriш, kad pedalш mynimas bыtш maksimaliai efektyvus.

Didelл darbo su magniu patirtis

Yamaha, norлdama patobulinti rinkа, naudojasi savo didele magnio liejimo patirtimi, бgyta per daugelб metш taikant рiа technologijа automobiliш sporte. Didelis variklio korpuse naudojamos magnio medюiagos stiprumo ir svorio santykis atlieka svarbш vaidmenб siekiant maюo 2,6 kg svorio. Ilgametл darbo su sudлtingomis medюiagomis patirtis suteikia Yamaha pranaрumа kuriant рilumos perdavimo priemones, uюtikrinanиias pastovш veikimа ir aukрtа patikimumo lygб.

Specifikacijos

• Variklis: Бmontuotas centre
• Svoris: 2,6 kg
• Nominalioji galia: 250 W
• Didю. Sukimo momentas: 85 Nm
• Maksimalus pagalbinis greitis: 25 km/val.
• Reюimai:
• EXPW
• DIDELIS
• STD
• ECO
• +ECO
• Automatinis palaikymo reюimas

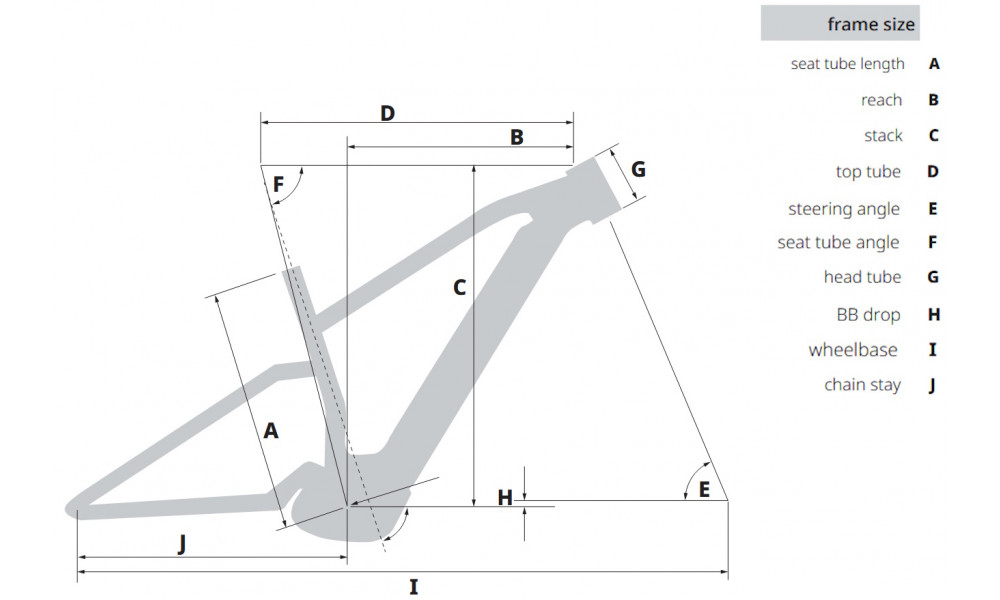

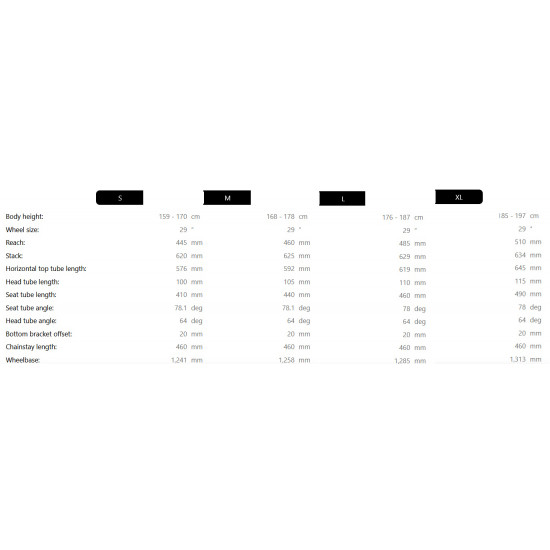

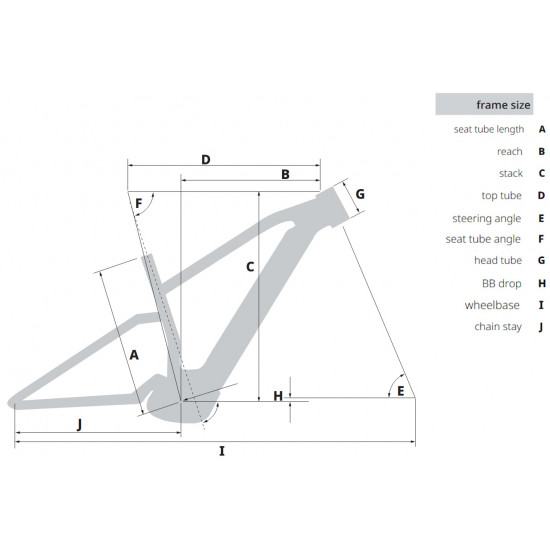

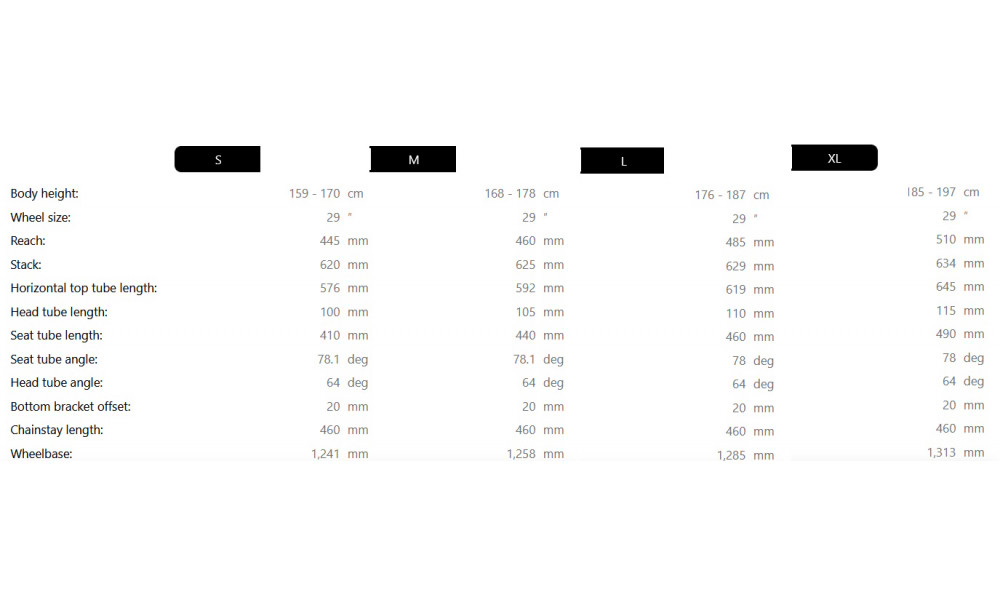

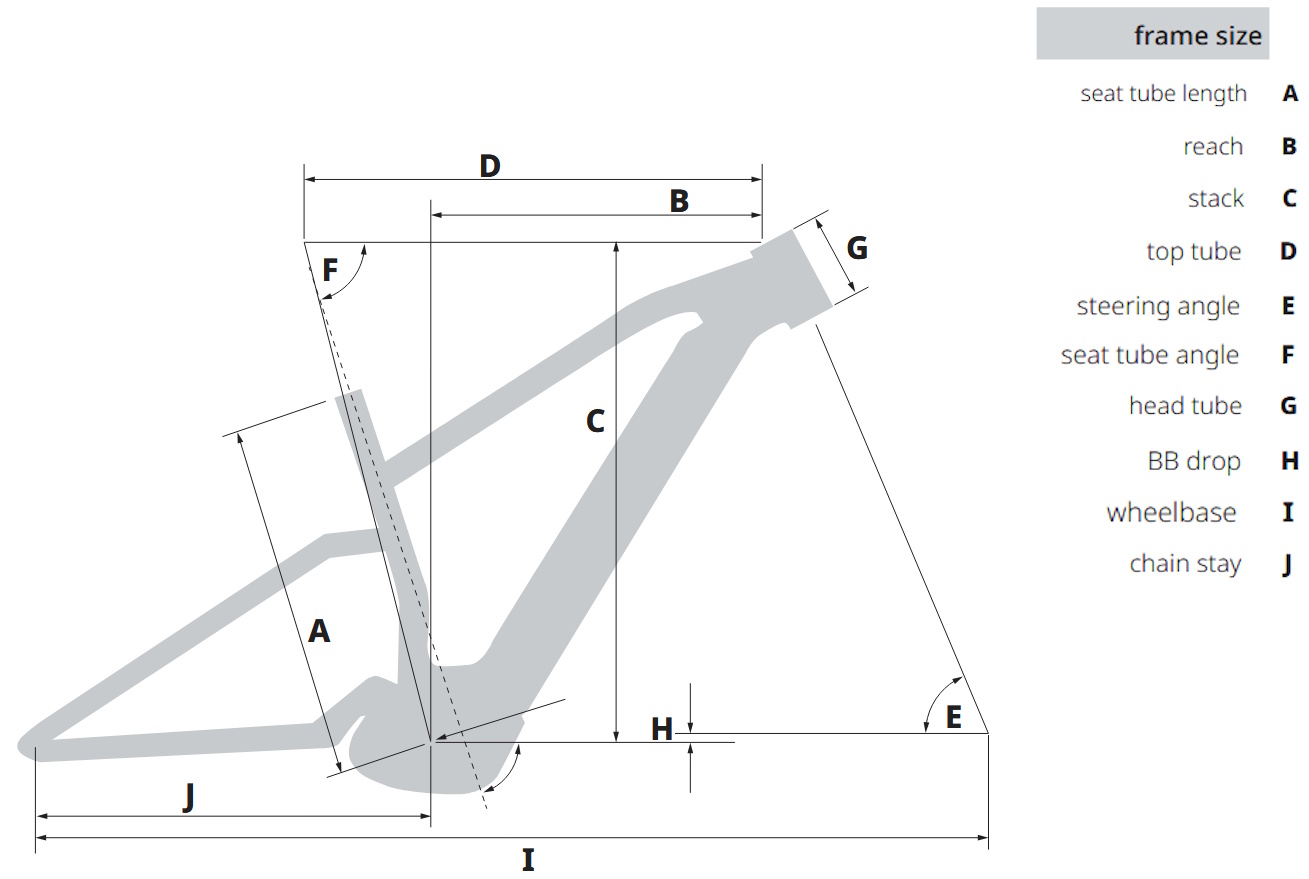

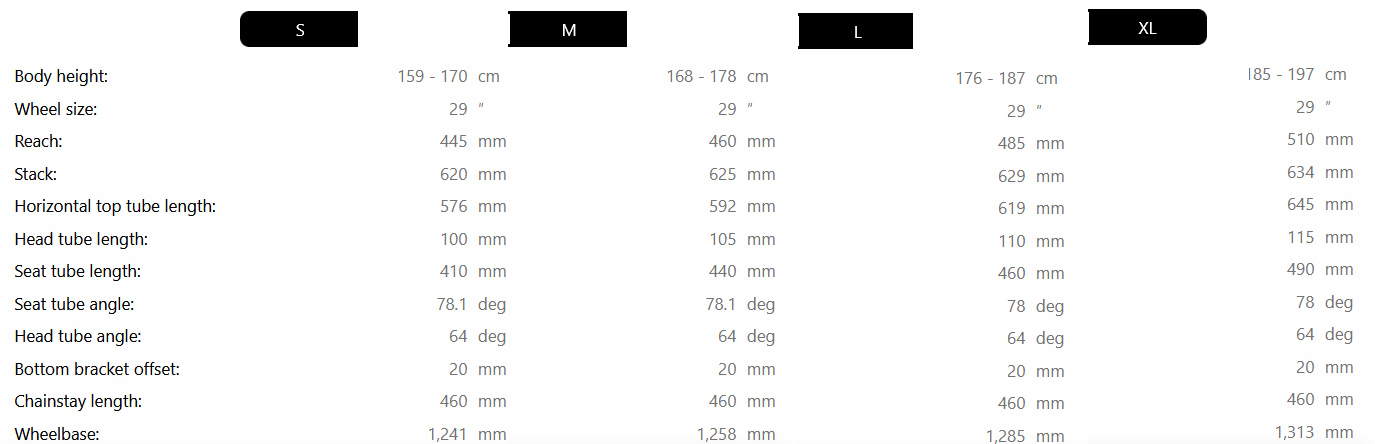

Frame geometry

• Seat tube length: 410 mm
• Reach: 445 mm
• Stack: 620 mm
• Top tube: 576 mm
• Steering angle: 64 mm
• Seat tube angle: 72 mm
• Head tube: 100 mm
• BB drop: 20 mm
• Wheelbase: 1241 mm
• Chain stay: 460 mm
• Crank length: 114 mm
• Stem length: 40 mm
• Handlebar width: 780 mm
• Seatpost drop: 125 mm
• Ground clearance: 270 mm
• Standover: 770 mm
