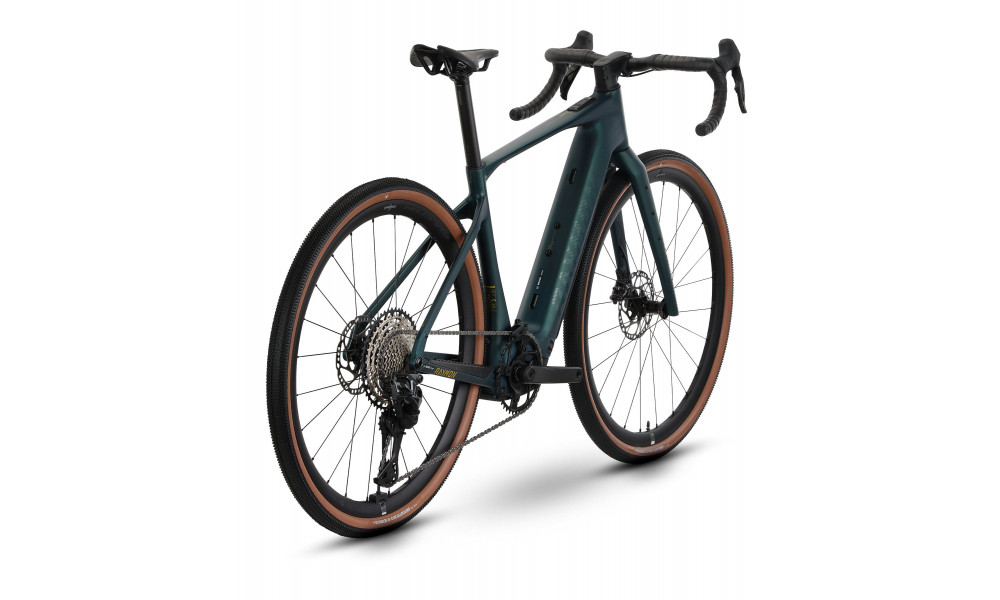

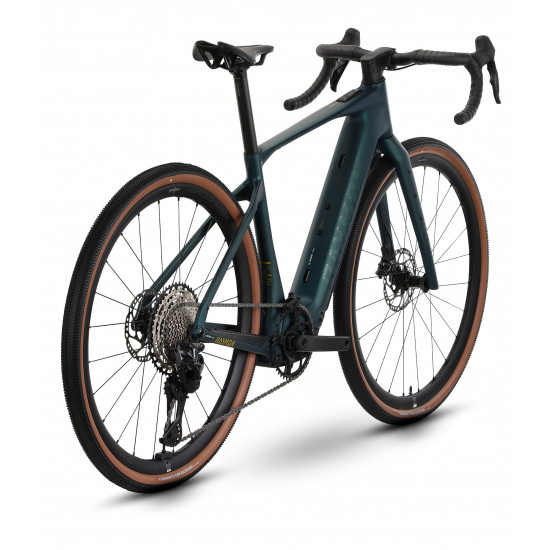

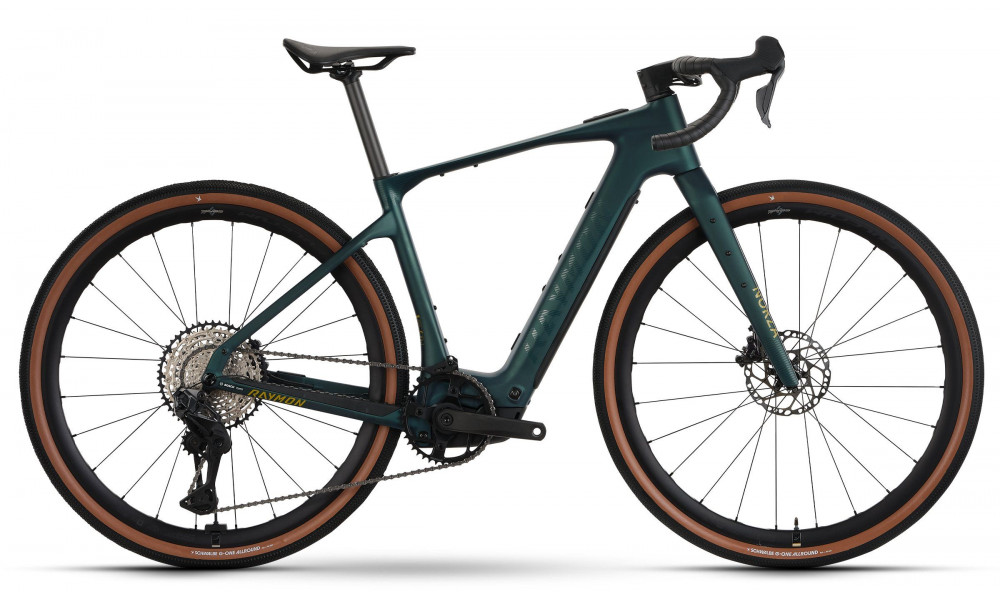

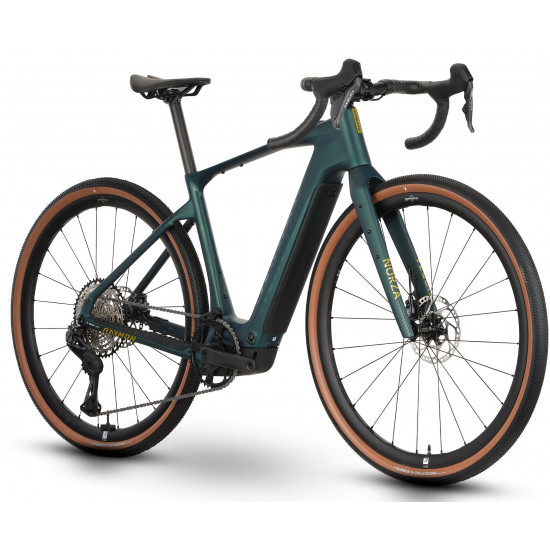

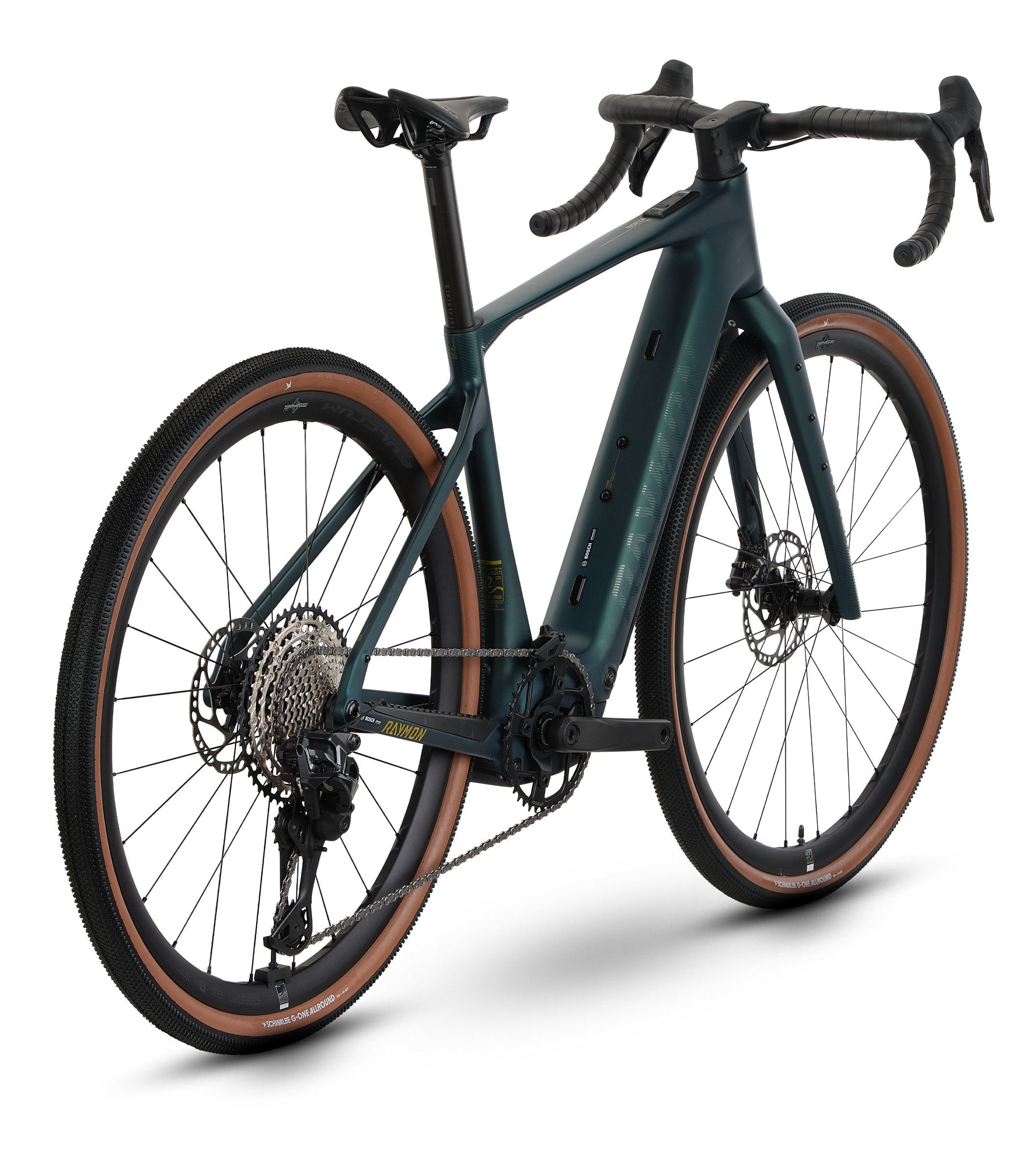

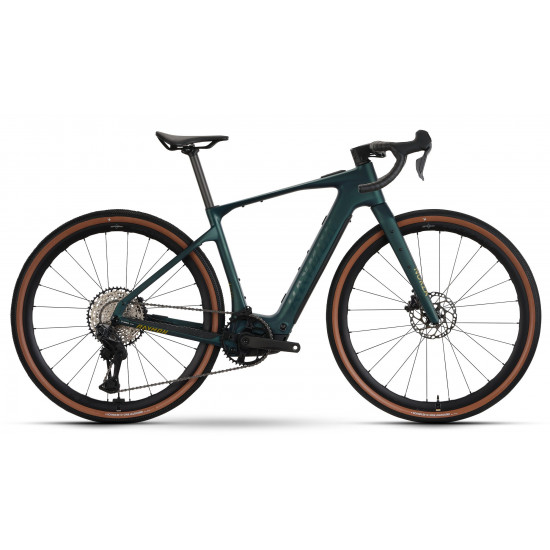

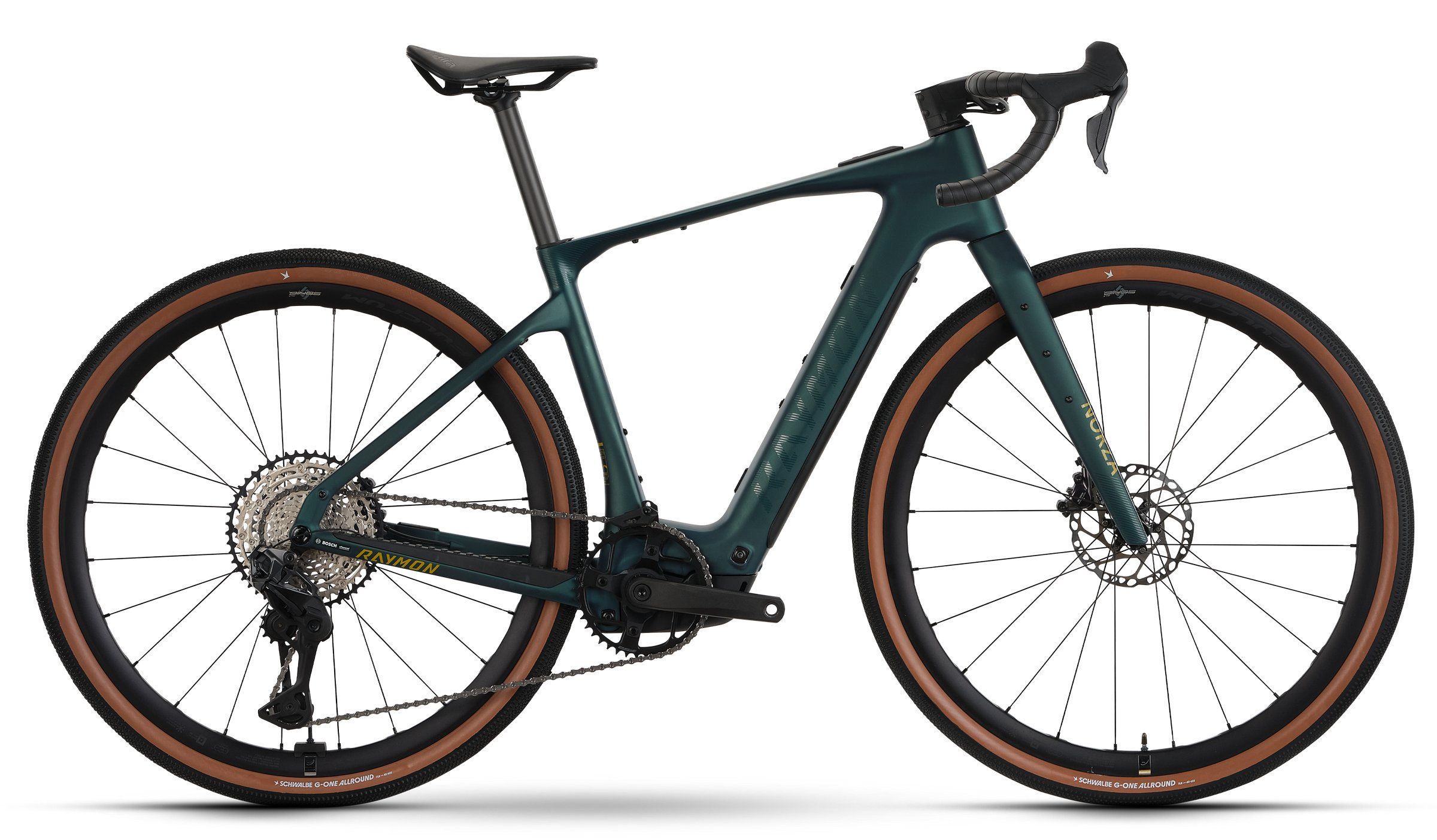

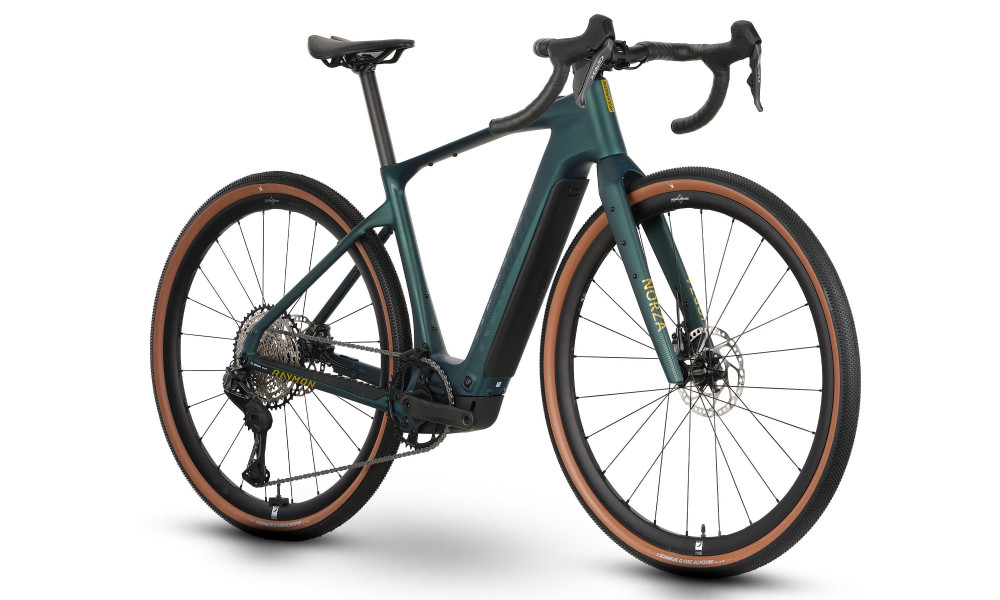

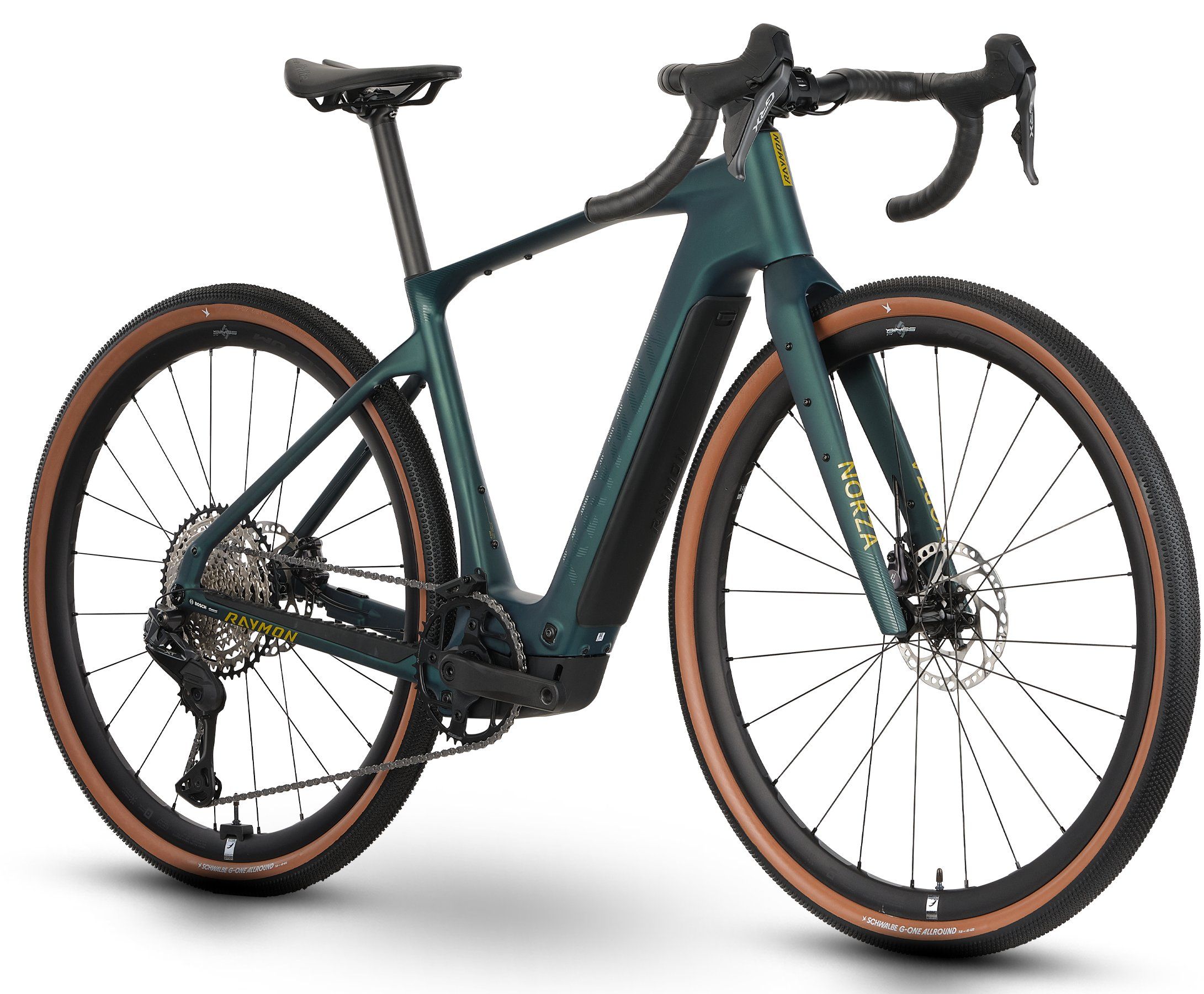

E-bike Raymon Norza Pro 400 2026 pine green

Product code: 2402600330

Frame size:

Product availability will be shown after you select the product size
Ask about a product
close
INQUIRY ABOUT PRODUCT

Description - E-bike Raymon Norza Pro 400 2026 pine green
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.

Bicycle technical specifications

E-bike system
Engine:
Bosch Performance Line SX
Engine power:
250 W
Engine torque:
60 Nm
Remote:
Bosch Mini Remote, Bluetooth
Battery:
Bosch CompactTube, 400 Wh, 36 V
Charger:
Bosch Charger, 4 A
Frame and suspension
Frame:
Carbon MLC, removable battery, ground clearance: 190
Fork:
Carbon Gravel Disc
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Shimano Deore XT Di2, RD-M8260, 12-speed
Shifters:
Shimano GRX Di2, ST-RX825
Crankset:
Raymon FC58, forged Aluminium, ISIS, Chainring: Raymon Narrow Wide 42T, Crank length depending on frame size: 165 / 170
Cassette:
Shimano CS-M6100, 10-51T
Chain:
Shimano CN-M6100
Pedals:
Raymon, thermoplastic
Brake system
Front brakes:
Shimano GRX BR-RX820, 2-piston, hydr. disc brake
Rear brakes:
Shimano GRX BR-RX820, 2-piston, hydr. disc brake
Type of brakes:
Hydraulic Disc
Brake discs:
Front: Shimano SM-RT64, 160 mm, Center Lock / Rear: Shimano SM-RT64, 160 mm, Center Lock
Cockpit
Handlebar:
Raymon Aluminium 31,8 mm, Width: 400
Stem:
Raymon, 31,8mm Length: 70
Grips:
Raymon anti slip
Headset:
Token TK2156-AB1-CHHC IS52/28.6 IS52/40
Wheels
Wheel size:
28"
Wheelset:
Fulcrum E-Racing Lite DB, Center Lock, 12x100/12x142 mm
Tires:
Schwalbe G-ONE ALLROUND Perf, Race Guard, 45-622
Saddle and components
Saddle:
Selle Italia Model X Evo
Seat post:
Raymon, 31,6 mm Length: 350
Seat post clamp:
integrated
Weight and dimensions
Weight:
14.7 kg
Maximum load (rider+bicycle):
130 kg

Battery Capacity – Measured in Wh (watt-hours) or Ah (ampere-hours) and directly affects the maximum distance that can be traveled on a fully charged battery. A larger capacity means a greater range.

Range – The approximate distance in kilometers that you can travel on a fully charged battery. The range depends on the cyclist's weight, battery capacity, weather conditions, terrain (uphill/downhill), and the selected level of motor assistance. It is important to note that over several years, the battery's capacity will gradually decrease. This is a normal chemical aging process of lithium-ion batteries. Improper use or modifications can further reduce the maximum range. BOSCH system range assistant (in English): https://www.bosch-ebike.com/en/service/range-assistant.

Bicycle Weight – The total weight of all bicycle components, including the motor, battery, frame, parts, and accessories. RAYMON bicycles are known for their excellent power-to-weight ratio.

Motor Power – The nominal power generated by the electric bike motor. This power complies with the legal power requirements for electric bicycles in most European Union countries.

Maximum Speed – The motor can support a speed of up to 25 km/h. Once this limit is reached, the motor switches off and reactivates only when the speed decreases. The motor assists only when pedaling. The bike does not have a throttle. The assistance levels and other settings can be adjusted using the controller located on the handlebars.

Product Details
Product name
E-bike Raymon Norza Pro 400 2026 pine green
Product code
2402600330
Manufacturer
RAYMON
Barcode
788364355492
Type
Man
Frame material
Carbon
Front suspension
No
Rear suspension
No
Disc brakes
Yes
Year
2026
Color
GREEN
More
Less
Bicycle preparation options
Delivery
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself - Free / Delivery time 5-10 business days

The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
