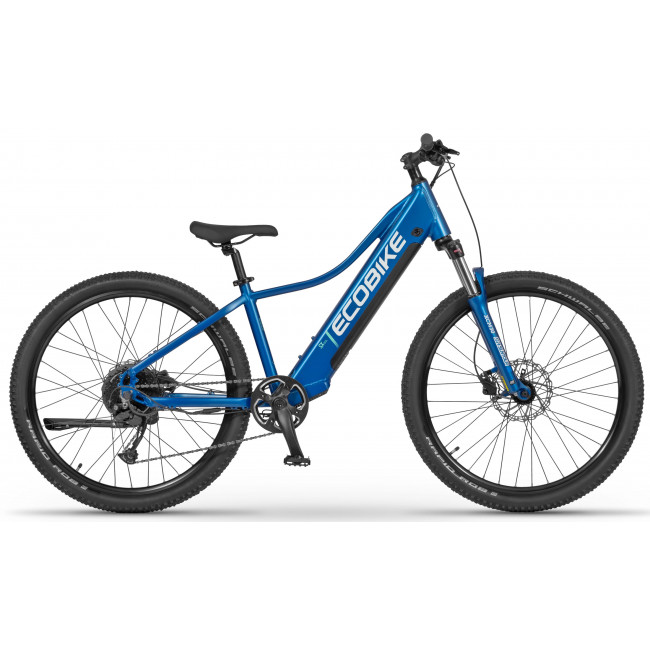

Ergonomic and solid construction defined for younger users will be perfect for cycling adventures, and reliable technology will provide young riders with emotions that will take them away from computer games for a long time.

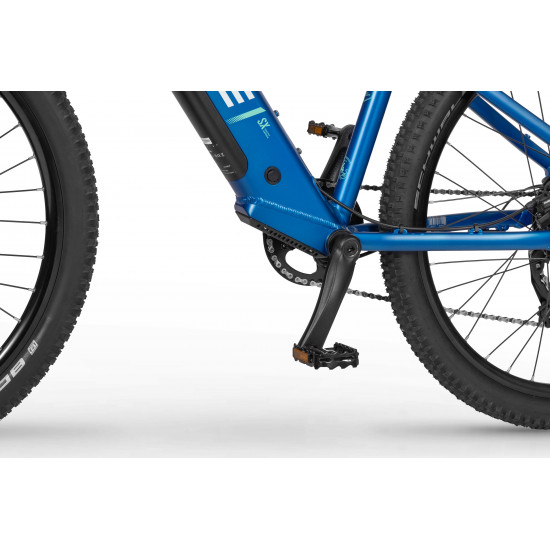

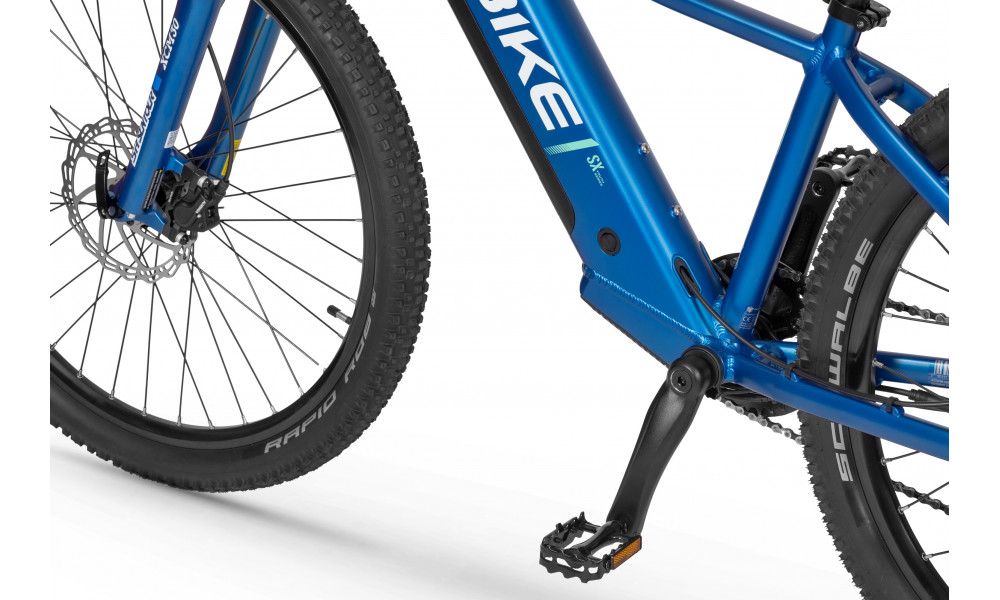

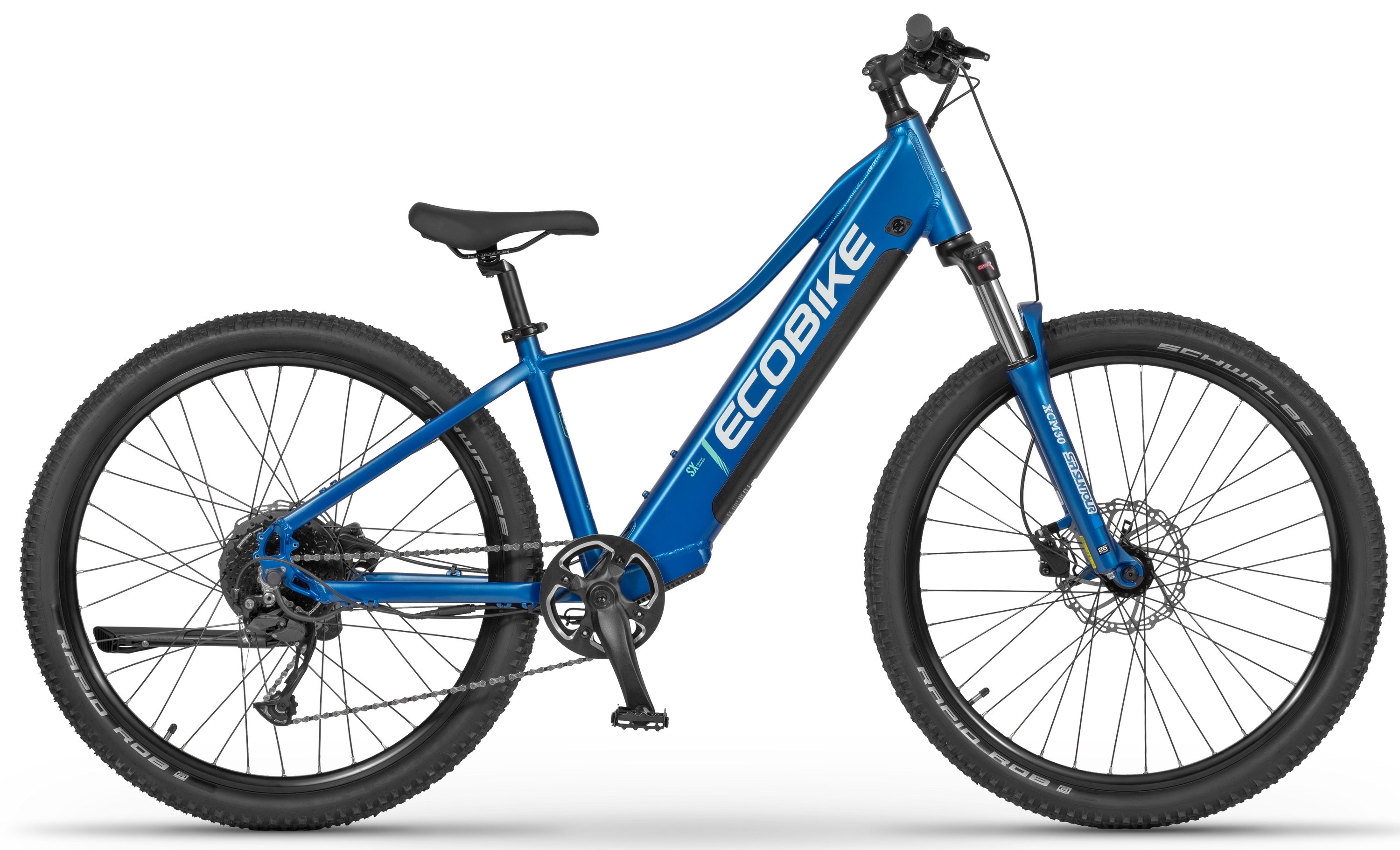

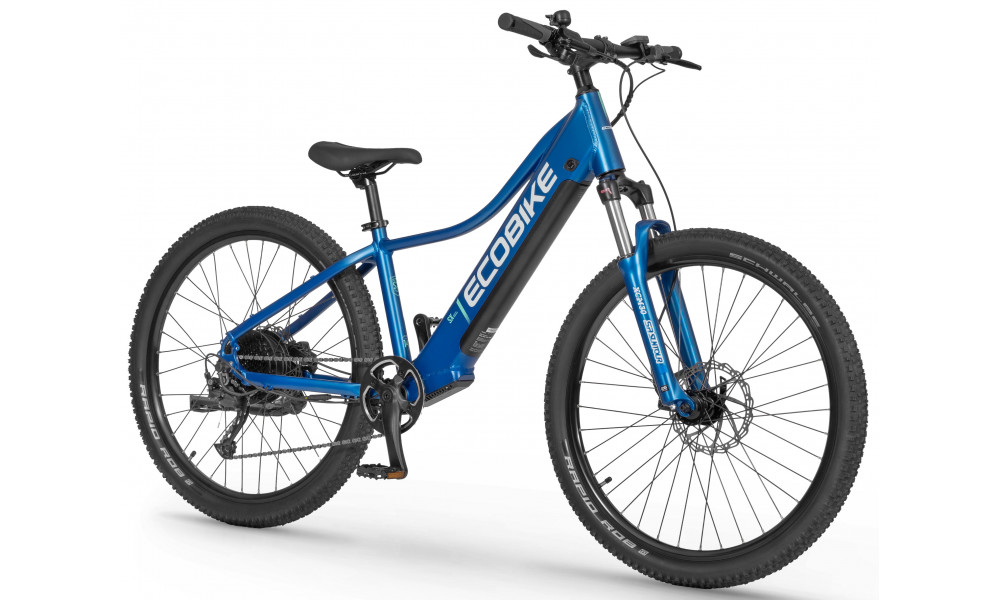

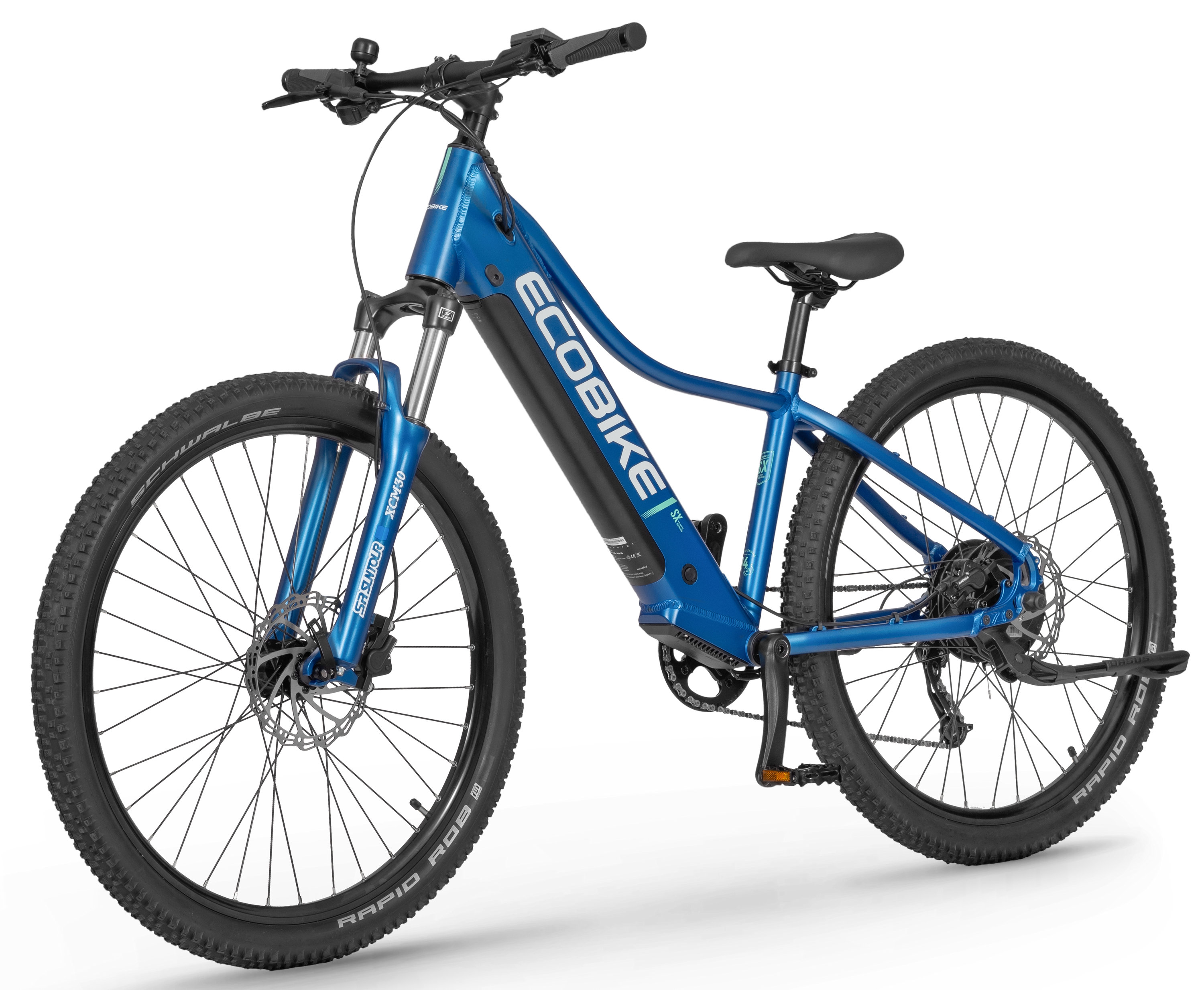

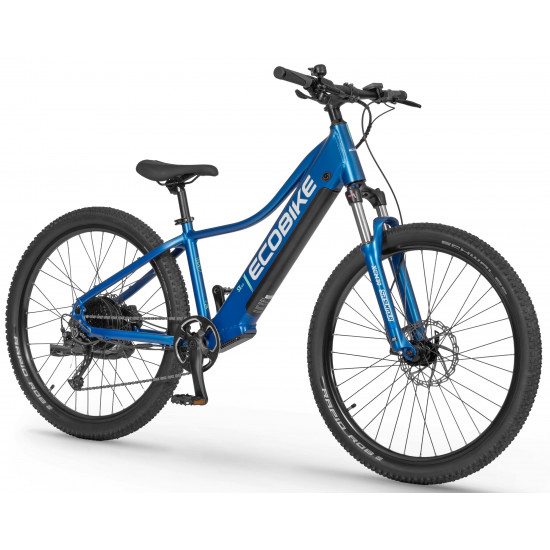

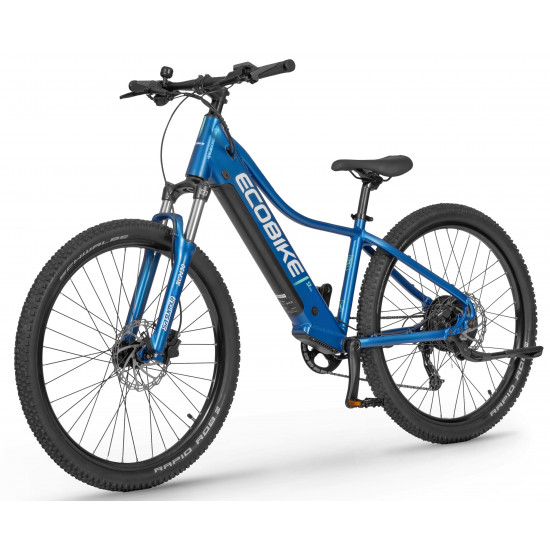

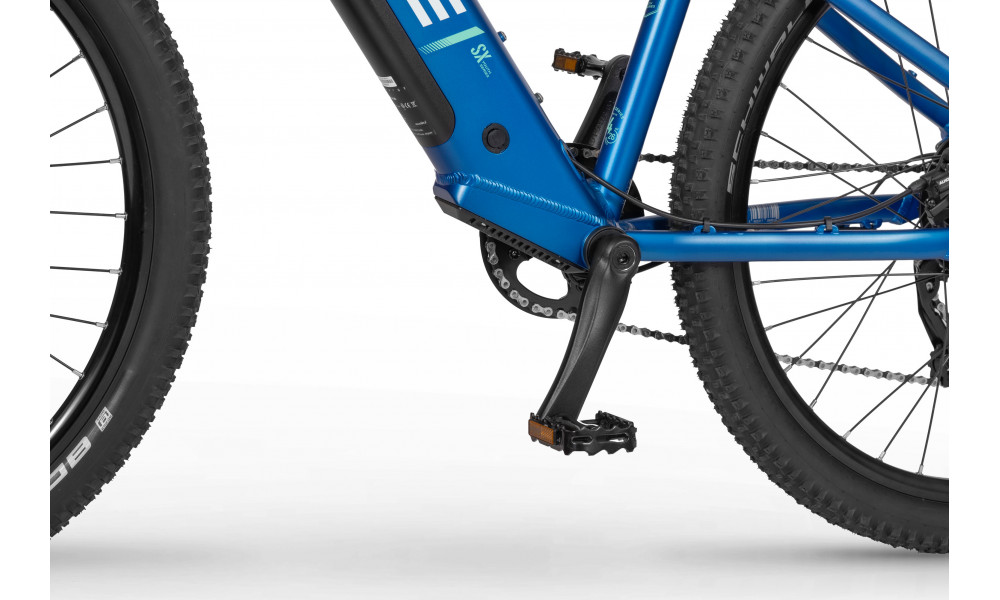

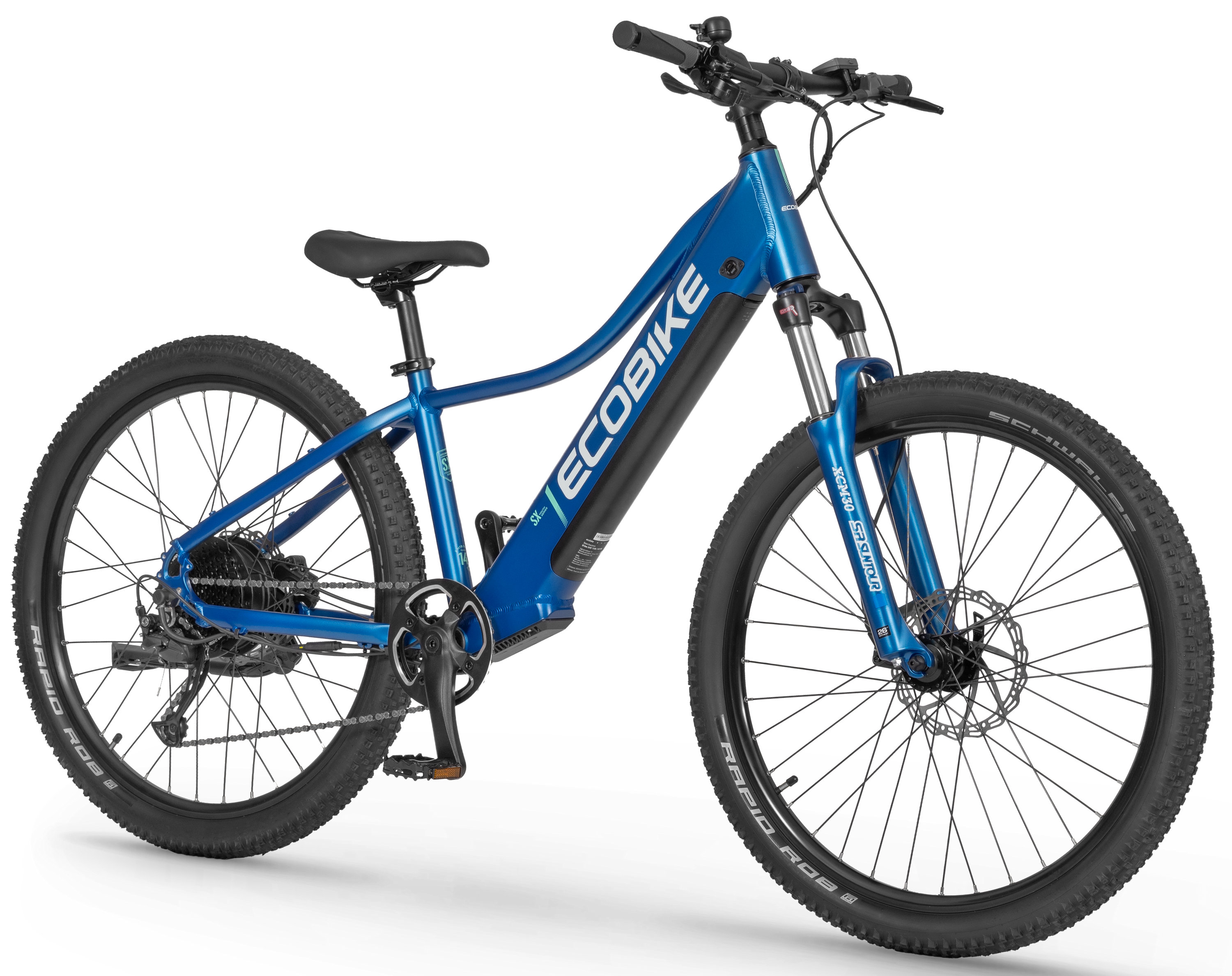

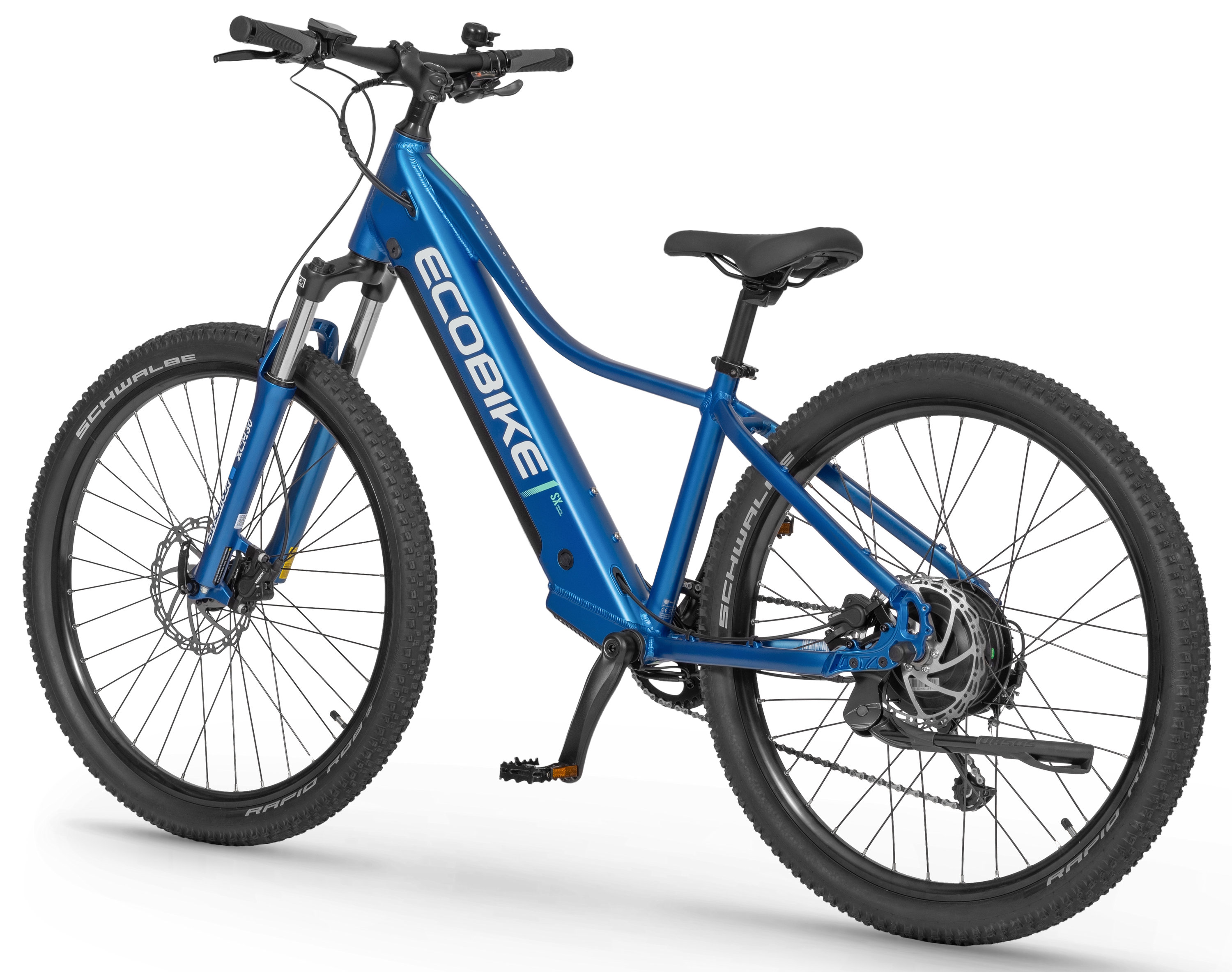

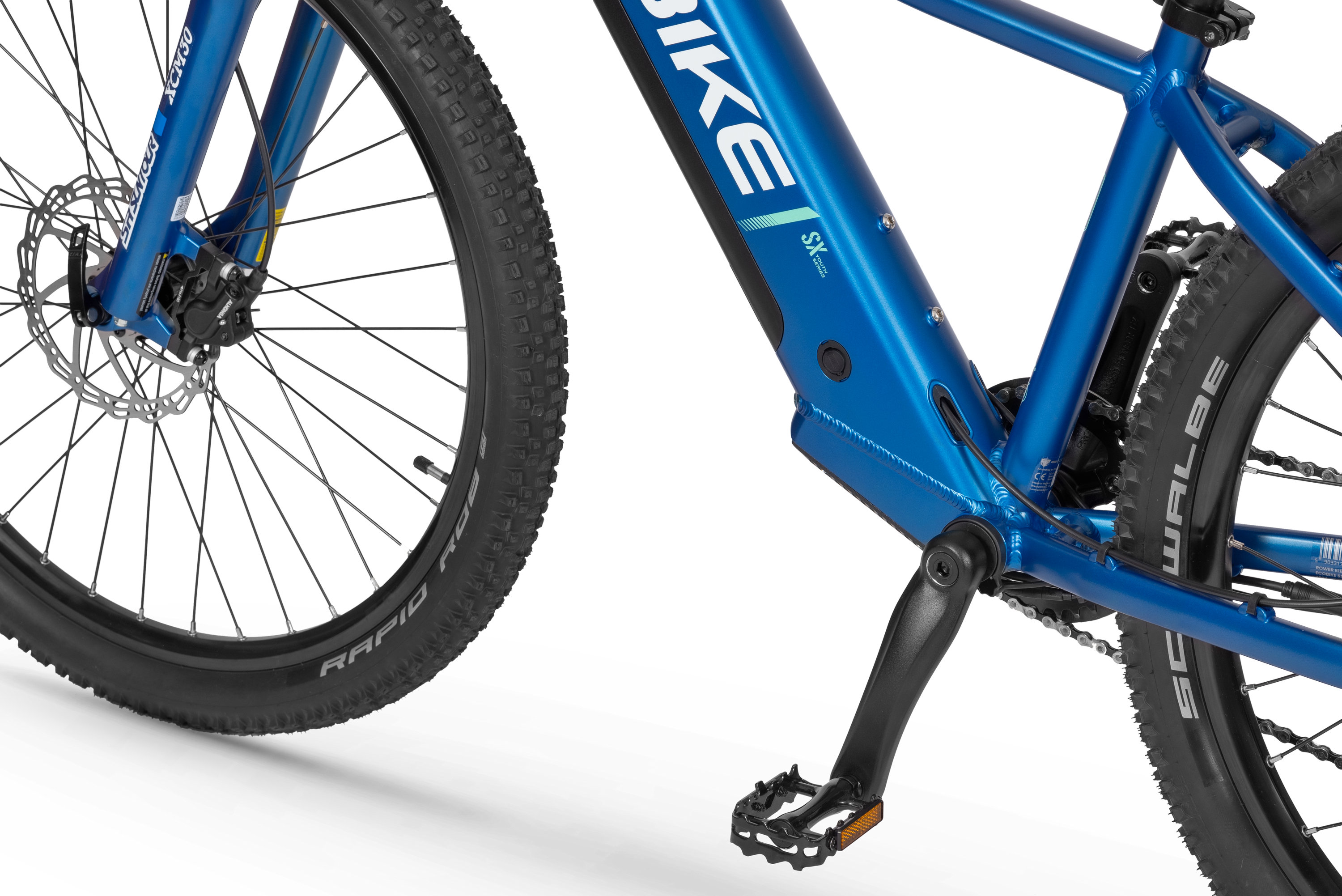

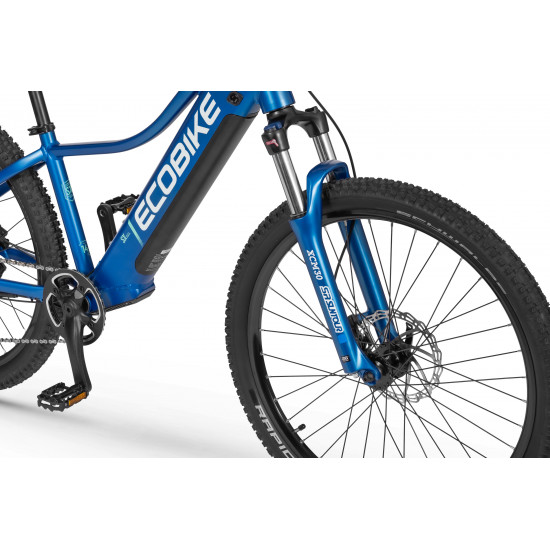

The bike is based on durable frame construction, proven in other models. The battery integrated into the lower frame and the motor in the rear hub provides well weight distribution, which is especially important for young riders.

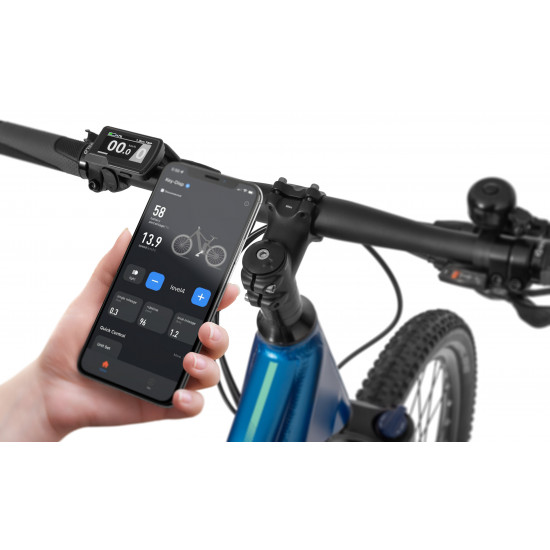

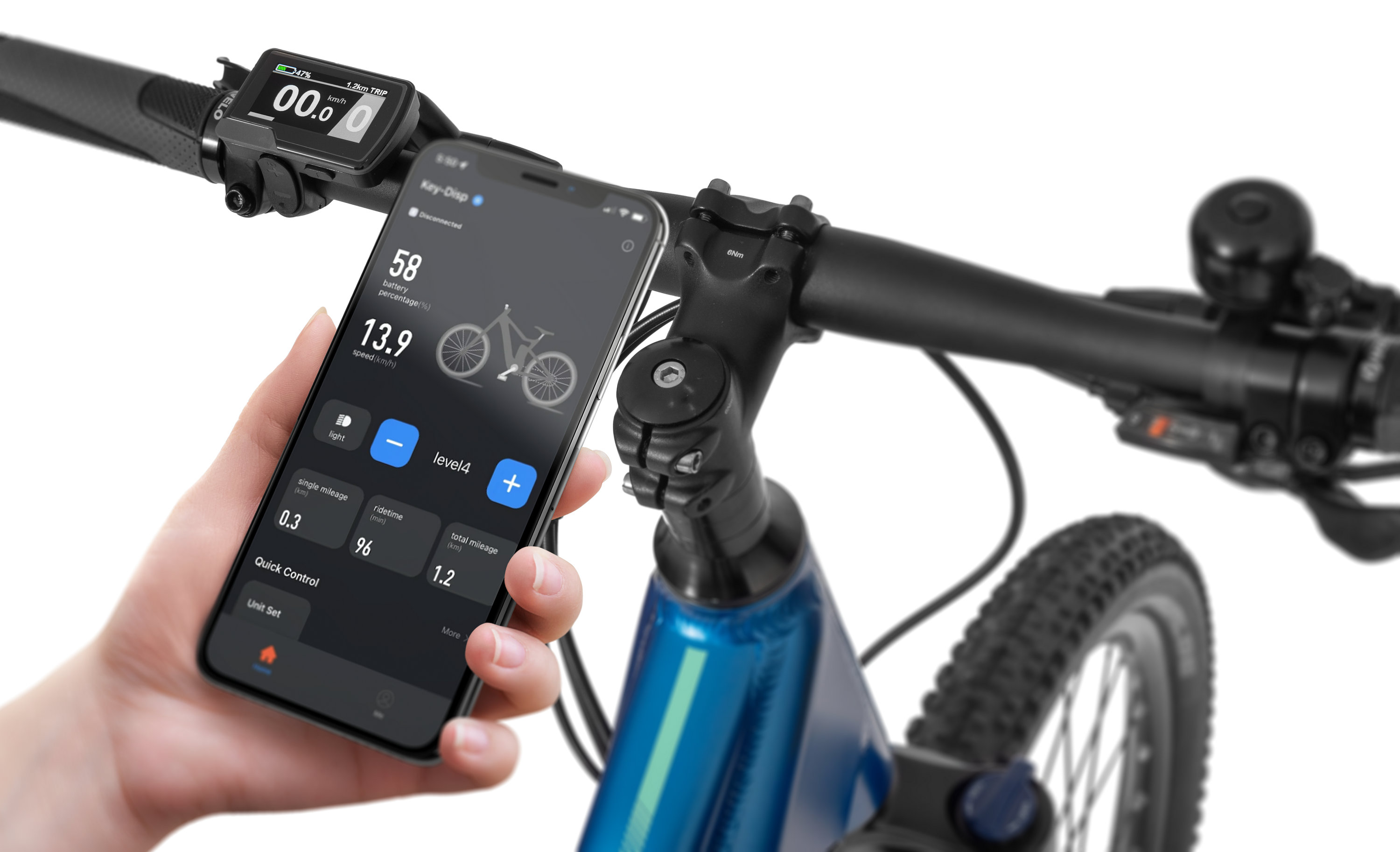

The electric system is powered by a powerful and durable Bafang hub-motor, a strong 468 Wh battery, and its manned by an intuitive LCD display offering some of useful functions. Terrain elevations and long distances will no longer stand in the way of forwarding your child's passion for cycling.
Safety is our top priority, and e-bikes for kids come equipped with advanced features to ensure worry-free rides. From sturdy frames and responsive brakes to adjustable speed limits and user-friendly controls, these bikes are designed with utmost care to keep your child secure while having a blast.
The fun doesn't stop there! E-bikes for kids open up a whole new world of family adventures. Plan thrilling excursions, explore nature trails, and create unforgettable memories together. Watch as your child's confidence soars while they master new skills and gain a deep appreciation for the great outdoors.
Product technical specifications

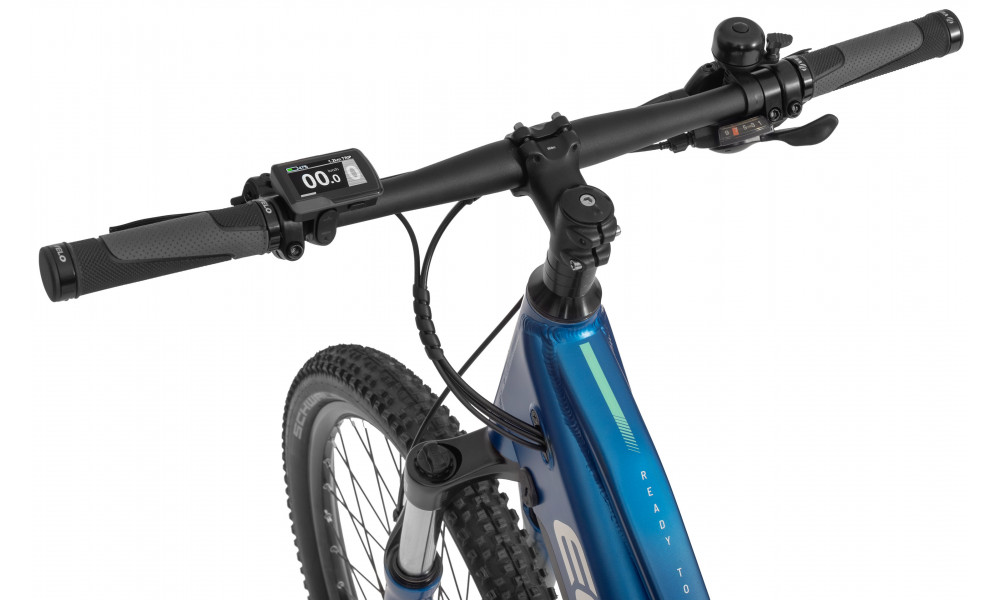

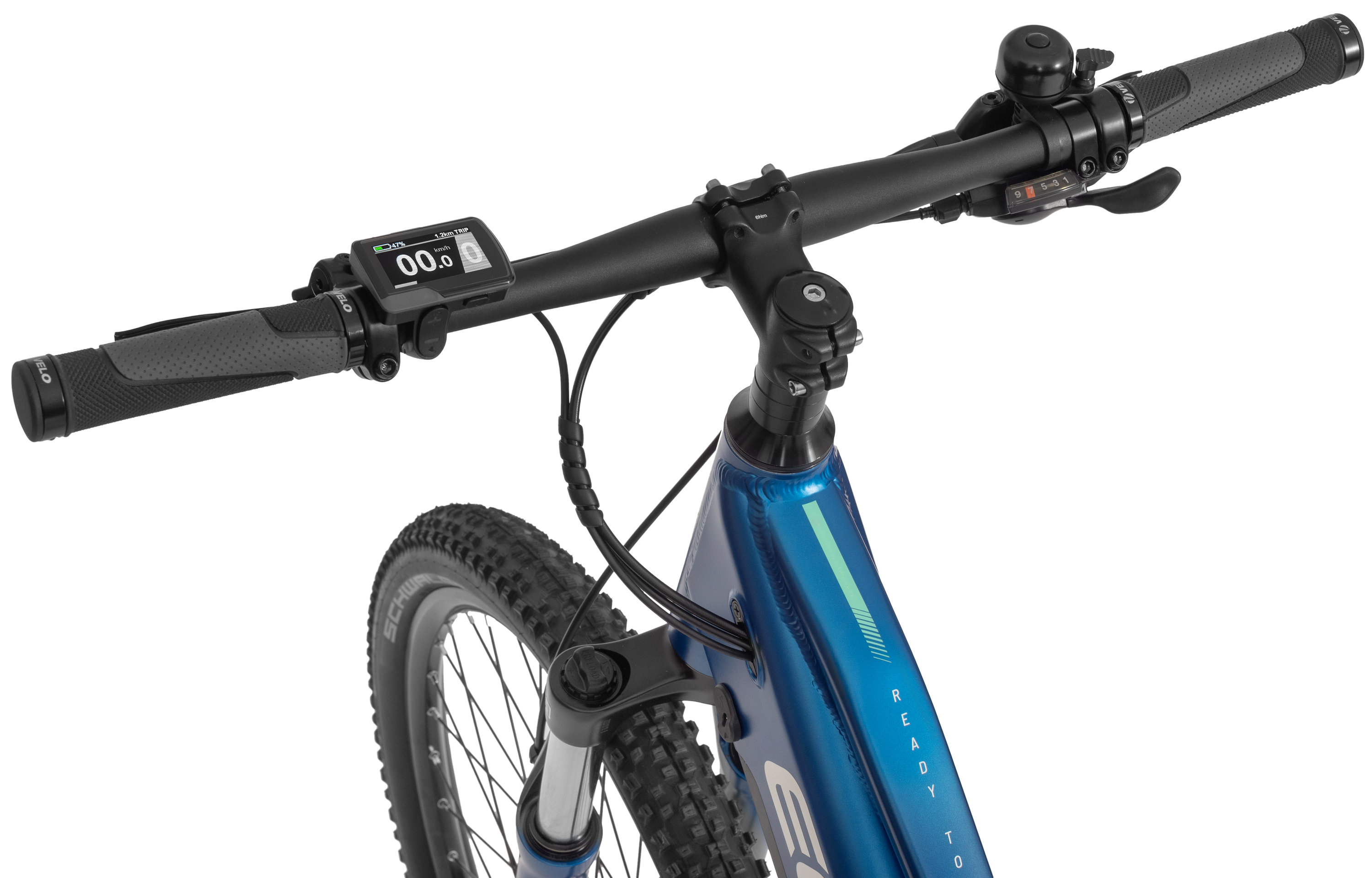

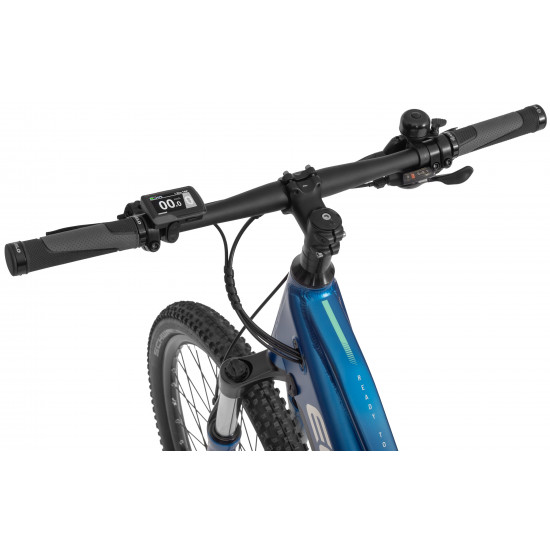

- Display model: KD-386
- Display type: Color LCD
DISPLAY:
- Capacity and range:
- 522 Wh: MAX 140 km
- Voltage: 36 V

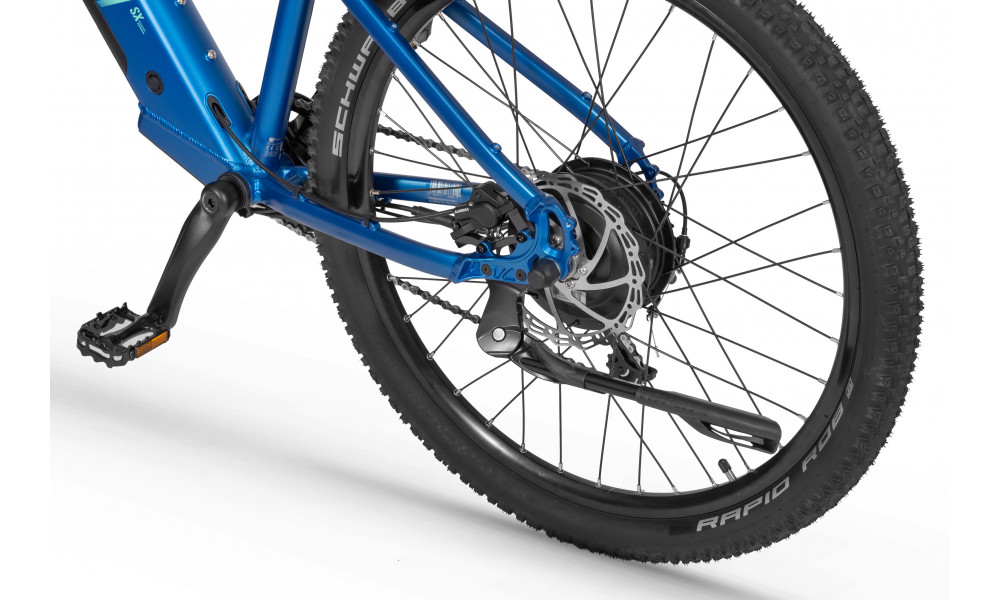

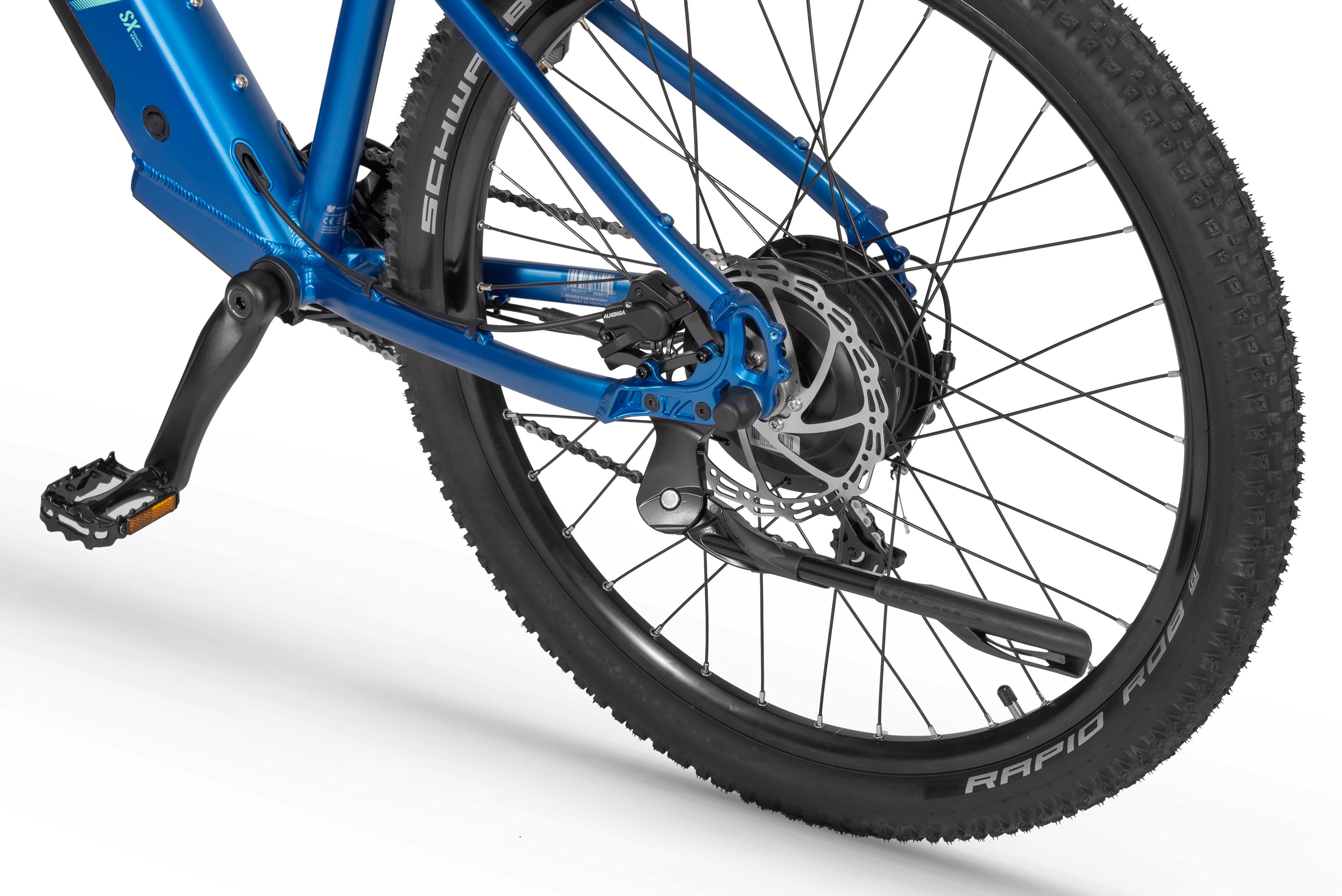

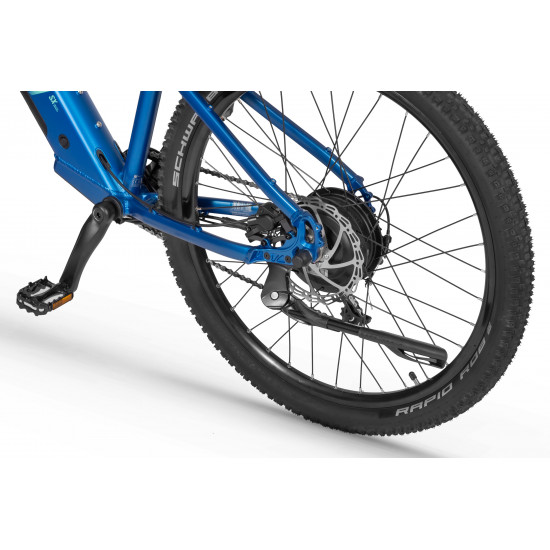

- Mount: Rear hub
- Motor assisted speed: 20 km/h, unlockable up to 25 km/h
- Torque: 45 Nm
- Motor's brand: Bafang
- Power: 250 W
DISTANCE:
ENGINE:
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 36 V
- Cells brand: EVE
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 14"

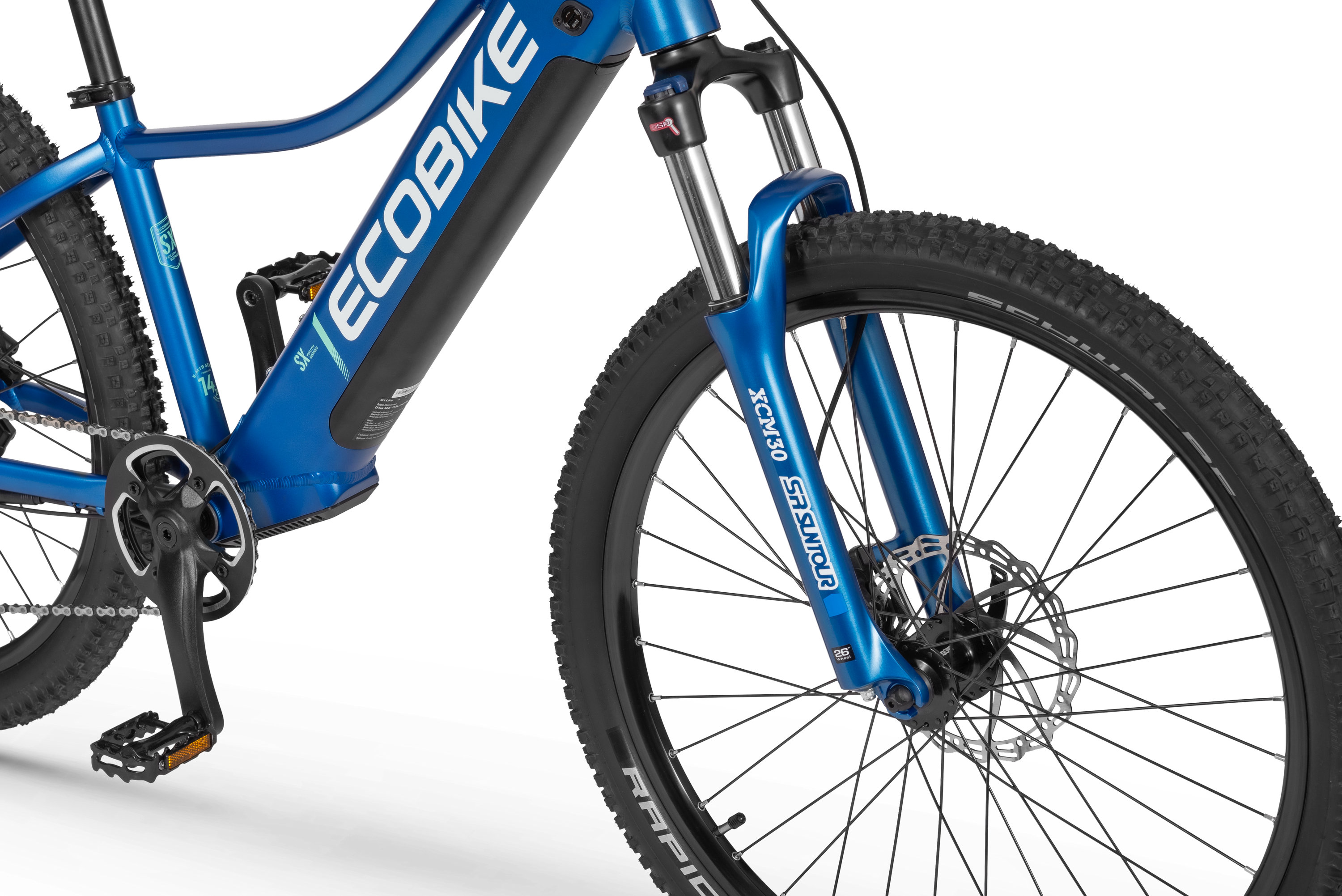

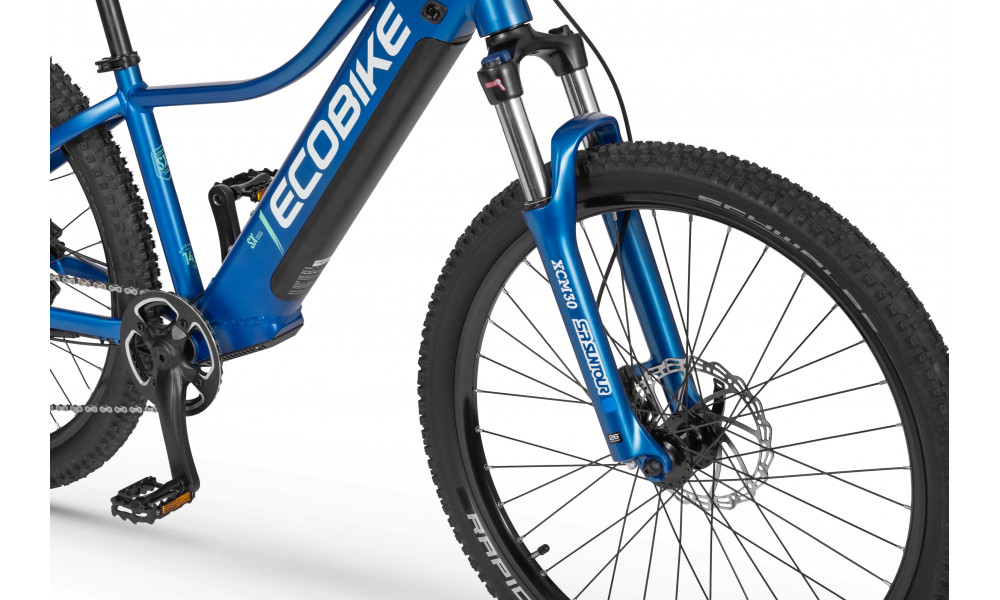

- FORK: SR SunTour XCM travel 100 mm
- BRAKES: Alhonga HJ-HT472 hydraulic
- CHAIN: KMC

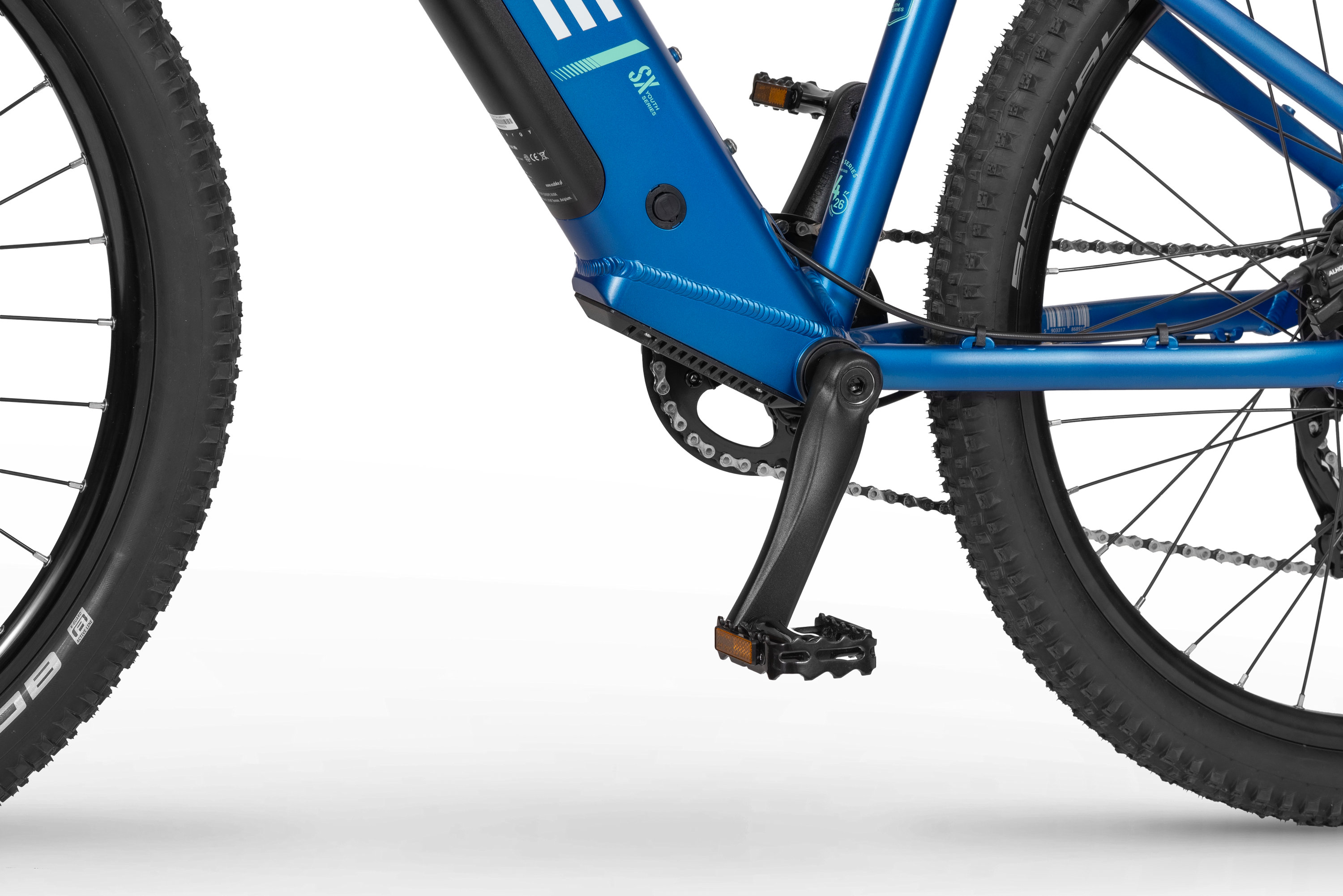

- CHAINWHEEL: Prowheel Pioneer 152 mm
- REAR DERAILLEUR: Shimano Alivio 9-speed
- FREEWHEEL: Shimano CS-HG200-9 11-36T 9-speed

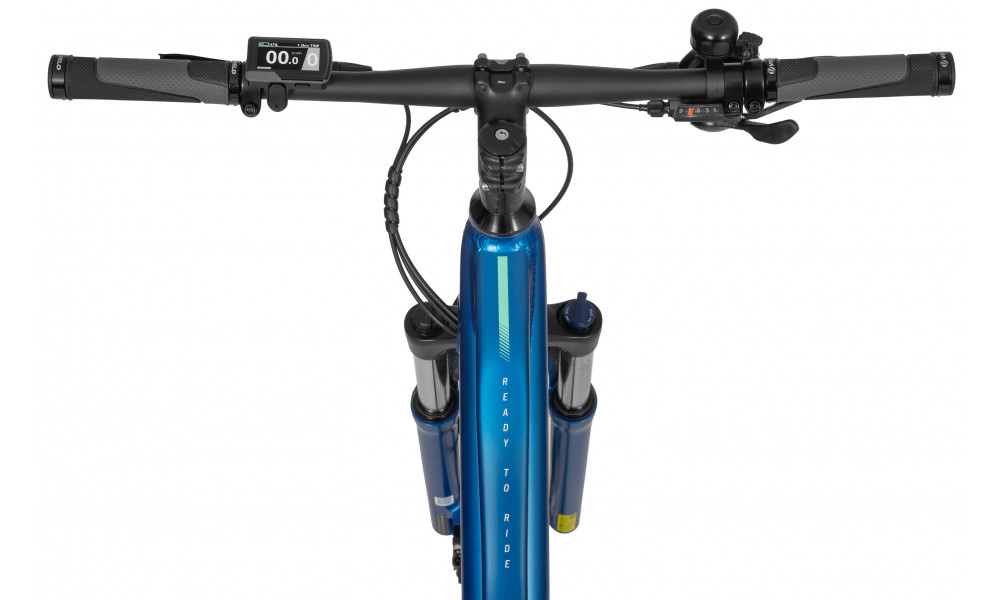

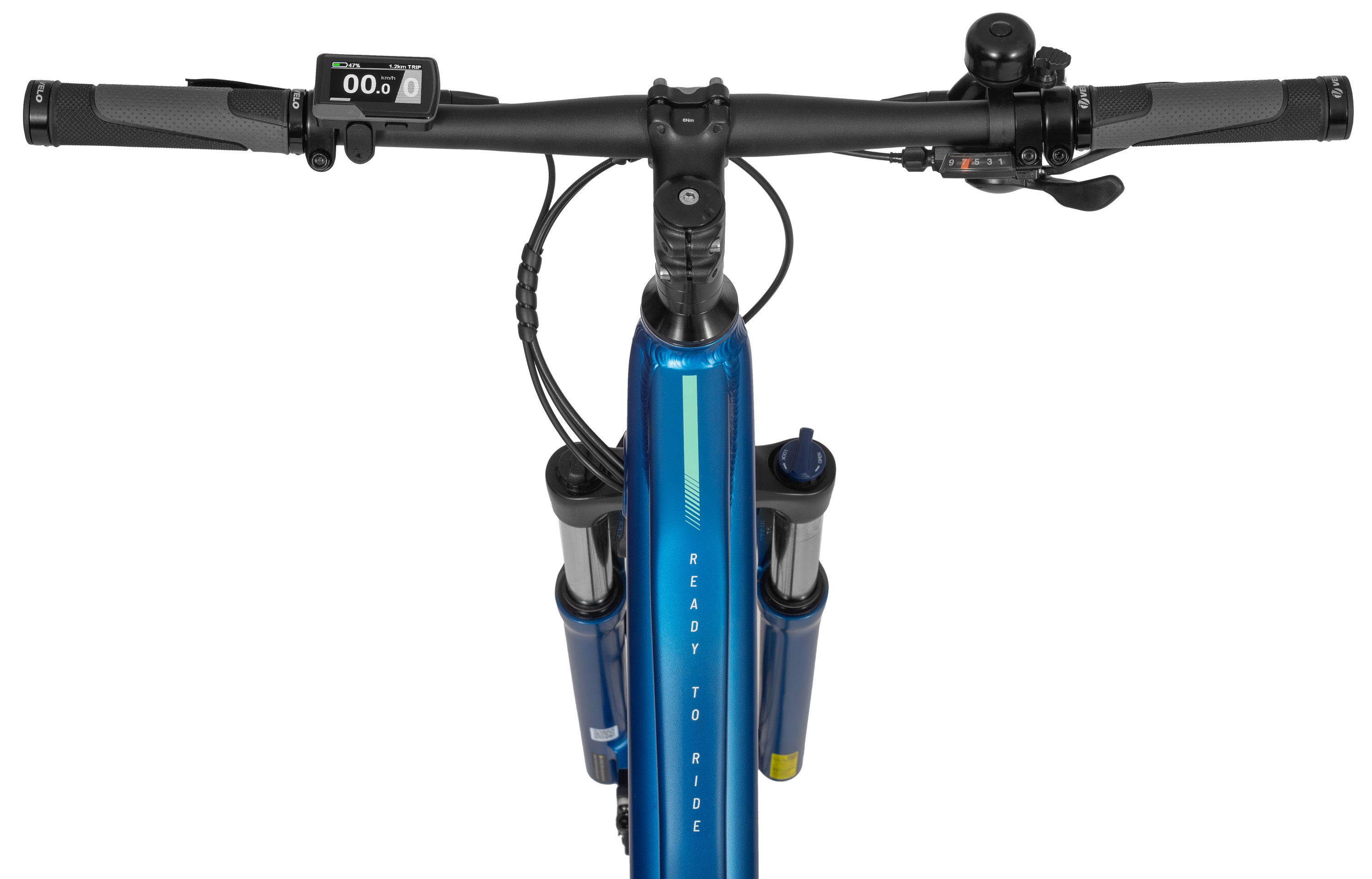

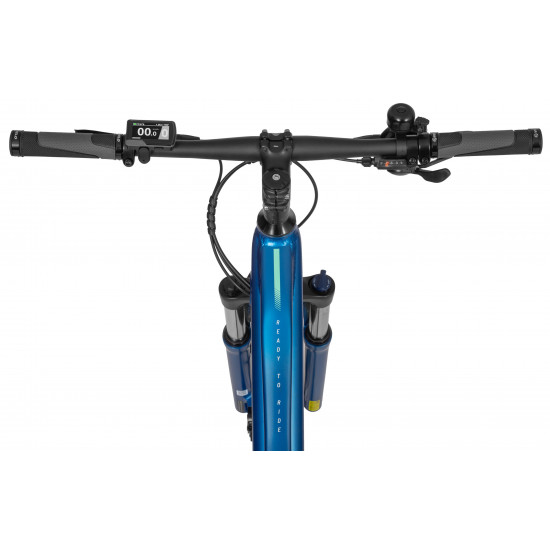

- HANDLEBAR: Zoom 640 mm, 31.8
- STEM: Promax 0 - 40 degrees / 60 mm
- HUBS: Front hub: Modus / Rear hub: Modus
- PEDALS: VP
- RIMS: 26" reinforced three-chambered rims, Sapim spokes
- SADDLE: Velo VL-4457
- SEAT POST: Promax 27.2 / 300 mm
- SHIFTERS: Shimano Altus 9-speed
- TYRES: 26" x 2.25 Schwalbe Rapid Robe
- WEIGHT: 22.9 kg
- SPEEDS: 9
- GRIPS: Herrmans RIB single lock
- Effective top tube length: 570 mm
- Head tube lenght: 160 mm
- Frame size: 356 mm
- Wheel base: 1068 mm
- Seat tube angle: 74.50
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
