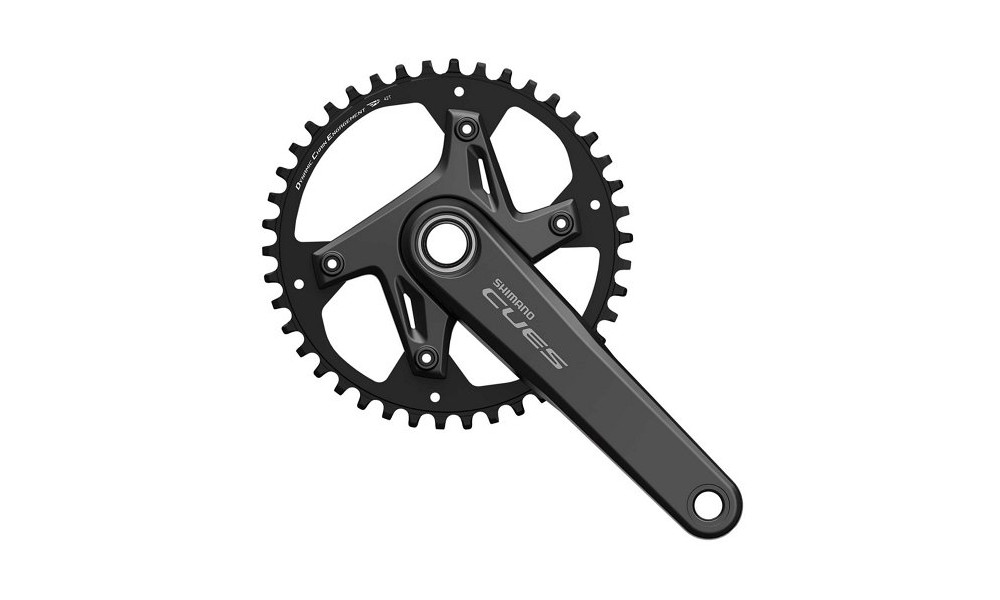

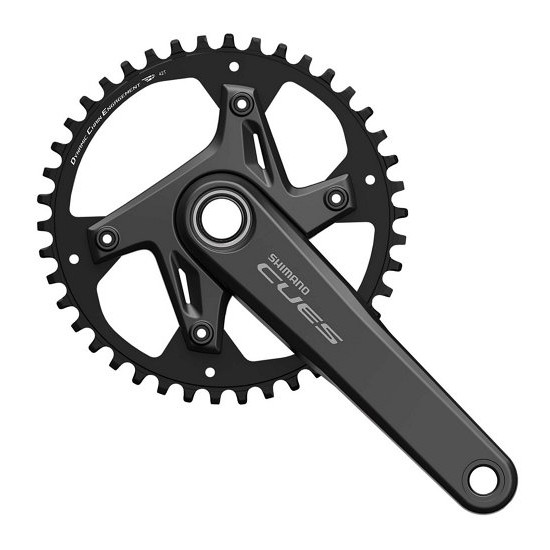

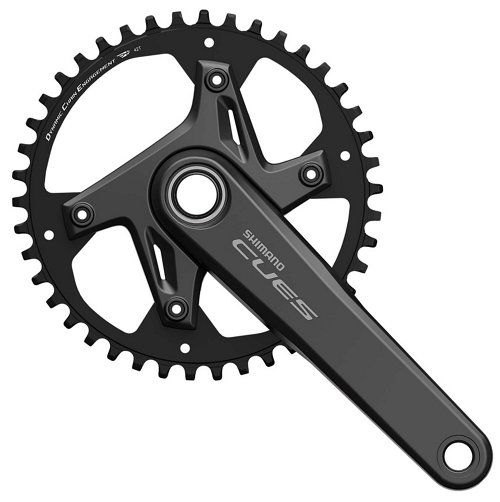

Crankset Shimano CUES FC-U6030-1 175mm 9/10/11-speed
Description - Crankset Shimano CUES FC-U6030-1 175mm 9/10/11-speed
SHIMANO is probably one of the most famous and popular manufacturers of quality bicycle parts and accessories in the world. Parts from this manufacturer are more or less used in most of the bicycles Founded in 1921 in Japan, the company currently has perhaps the widest range of products for both amateurs and professionals. Every year, innovations are introduced that allow cyclists to shift gears more precisely, brake more efficiently or finish the track faster. Currently the company is expanding the offer of electronic gear shifting mechanisms and electric bicycle parts more and more. The range of products is not limited to bicycle parts, clothing for cyclists is offered as well.
The highlight for all those who like to be active. Consistently developed for comfortable as well as safe movement and created with the aim of offering more versatility for the most diverse types of bikes. The experience-oriented CUES series combines incredibly smooth and stress-free shifting behavior with durability suitable for E-Bike use and up to three times greater longevity thanks to LinkGlide technology. With the U6030 components, Shimano is expanding the CUES family to make it easier for riders to get started in road bike and gravel sport.
The FC-U6030 crank from the Shimano CUES series was designed for reliable performance in gravel use. Accordingly, it not only ensures excellent chain retention, but also a smooth pedal stroke when riding off-road sections thanks to chainring options of 40 or 42 teeth.
While the special Dynamic Chain Engagement+ tooth design is responsible for the optimized chain guidance, the two-piece construction improves stiffness without unnecessarily increasing the weight. The result benefits not only efficient power transmission, but also riding enjoyment.
Product technical specifications
- Crank arm length: 175 mm
- Bottom bracket axle profile: 24mm Hollow Shaft
- Bottom bracket case width: 68 mm, 70 mm
- Chain line: 50 mm
- Q-factor: 152 mm
- Bolt Circle Diameter: 110 mm
- Rear Speeds: 9/10/11-speed
- Gear Combination: 40T
- Recommended bottom bracket Press-Fit: BB-RS500-PB
- Recommended bottom bracket Threaded (normal): BB-RS501
- Compatible bottom bracket type Outboard
- Compatibility chain: CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500
- Material: Crank Arms, Spider - Aluminum (painted), Chainring - Steel (anodized), Axle: - Steel (plated )
TECHNOLOGIES
DYNAMIC CHAIN ENGAGEMENT+ -The special tooth profile for chainrings of 1-speed drivetrains noticeably improves chain retention, which also makes pedaling easier in rough terrain and offers particular advantages in the MTB application areas of Cross County, Enduro and Trail. The optimized chain guidance also reduces abrasion and wear, regardless of the gear selected.
2-PIECE CRANKSET -The two-piece construction, in which the right-hand crank arm is firmly connected to the shaft of the bottom bracket, serves to optimize the ratio between stiffness and low weight. In combination with the external bearing, which also results in an increased bottom bracket distance, the power transmission is noticeably improved.
Product Details
- Product name
- Crankset Shimano CUES FC-U6030-1 175mm 9/10/11-speed
- Product code
- EFCU60301EXB0X
- Manufacturer
- Shimano
- Barcode
