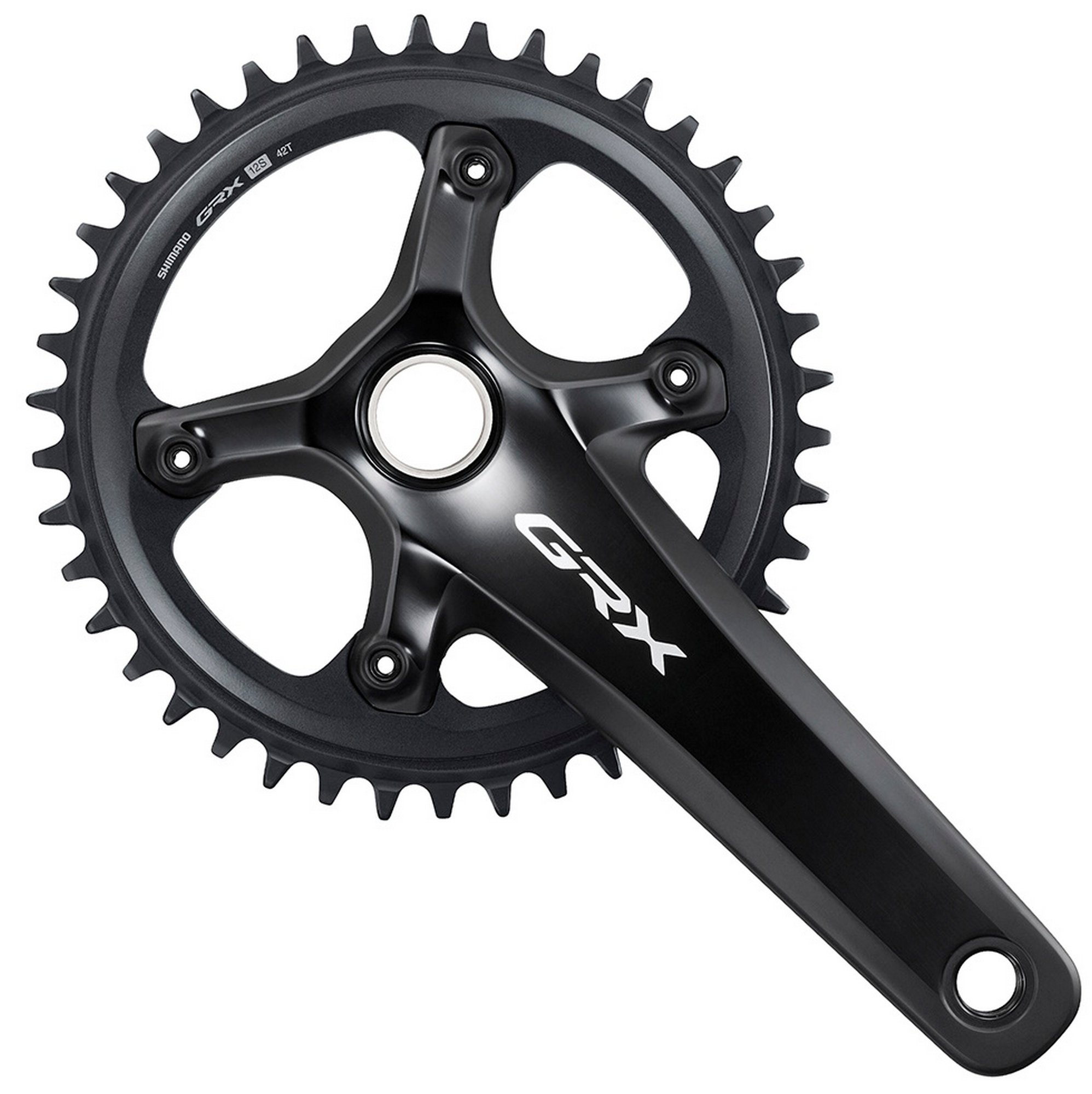

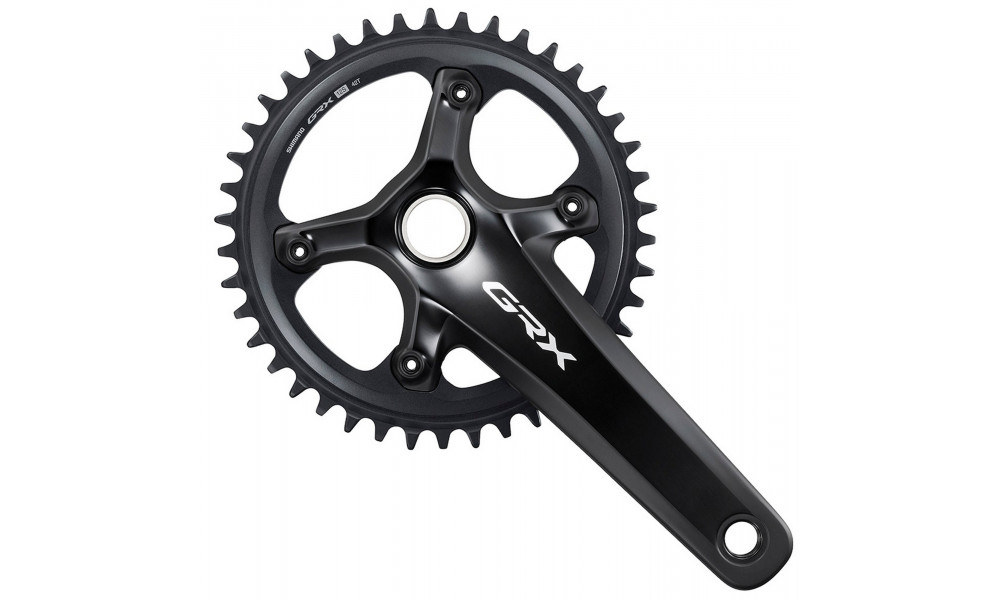

Description - Crankset Shimano GRX FC-RX820-1 170mm 1x12-speed
The SHIMANO FC-RX820-1 crank balances weight savings, optimized efficiency and an array of gearing options that cater to the segmented demands of mixed-terrain riding. By pairing a 10-45T or 10-51T cassette with 40T and 42T chainrings, riders can choose closer gear steps or ultimate range.
Product technical specifications
- Optimal gearing for mixed-terrain riding
- 42T and 40T chainrings available
- Crank arm length: 170 mm
- Compatibility (manufacturer recommendations, list is not complete):
- Rear derailleur: RD-RX820 (max. 45 teeth), RD-RX822 (max. 51 teeth)
- Cassette: CS-M8100, CS-R8101, CS-HG710
- Chain: CN-M9100, CN-M8100, CN-M7100, CN-M6100
- Bottom bracket (thread type): BB-RS501, BB-RS500, BB-R9100, SM-BB9000, SM-BBR60, SM-BB6700, SM-BB5700, SM-BB4600
- Bottom bracket (Press Fit): BB-RS500-PB, SM-BB92-41B, SM-BB72-41B, SM-BB71-41B
- Chainline: 49.7mm
- Q-factor: 151mm
- BCD: 110mm
Product Details
- Product name
- Crankset Shimano GRX FC-RX820-1 170mm 1x12-speed
- Product code
- IFCRX8201CXB0
- Manufacturer
- Shimano
- Barcode
