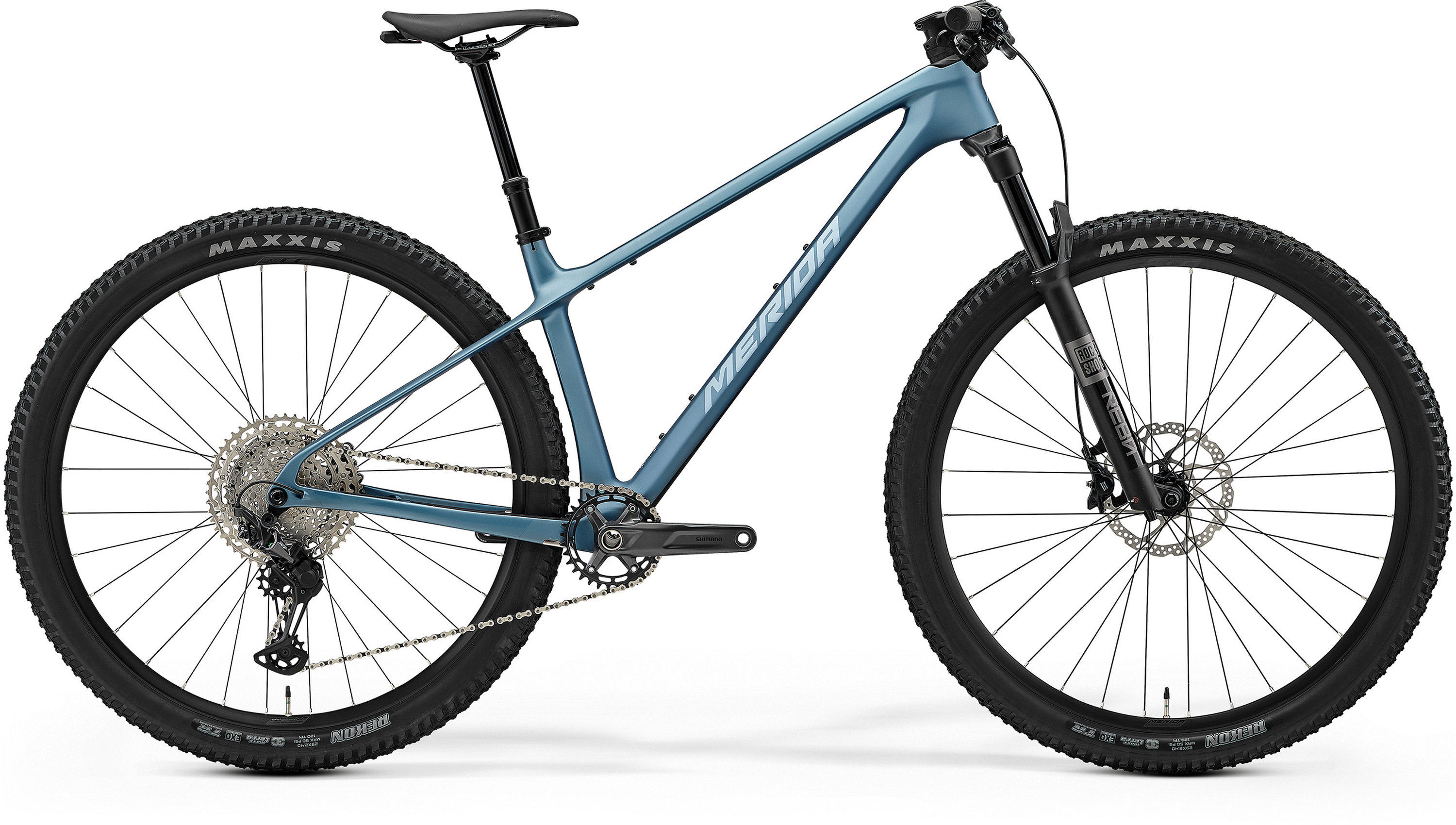

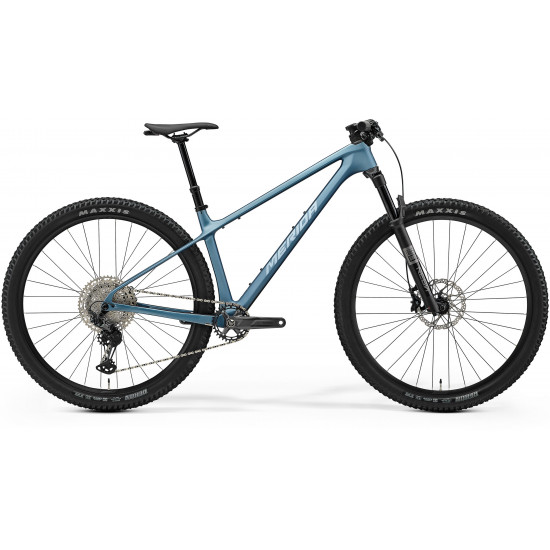

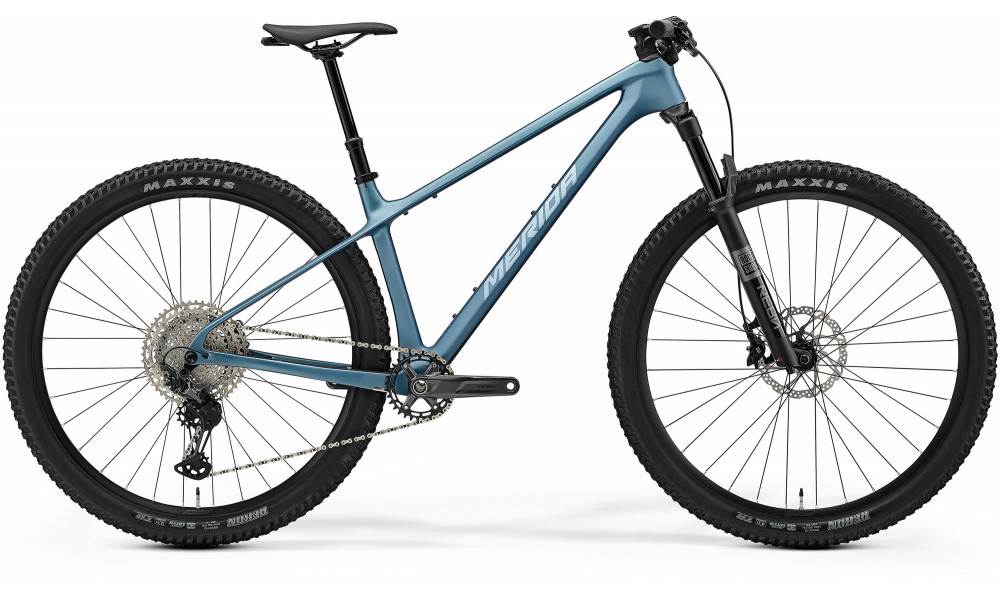

Description - Bicycle Merida Big.Nine TR 5000 2026 silk steel blue(blue)
Bicycle technical specifications
Frame and suspension
Frame:
BIG.NINE TR CF3 III; carbon; 29x2.4" max; 148x12mm; BSA
Fork:
Rock Shox Reba RL; Air; 120 STR; Tapered; 44 mm fork offset
Drivetrain type:
Drivetrain groupset:
Shimano XT
Speeds:
12
Speeds:
1x12
Rear derailleur:
Shimano XT; SGS
Front shifter:
JD-FL lever
Rear shifter:
Shimano Deore M6100
Crankset:
Shimano Deore MT512; 32T, Crank size: 170 mm for all sizes
Cassette:
Shimano Deore M6100; 10-51T; 12-speed
Chain:
KMC X12
Bottom bracket:
Shimano BB-MT-501; 24mm
Pedals:
Not included
Brake system
Front brakes:
Shimano SLX M7100; 2 piston
Rear brakes:
Shimano SLX M7100; 2 piston
Brake discs:
Front: Shimano RT54; 180mm, Rear: Shimano RT54; 160mm
Cockpit
Handlebar:
MERIDA EXPERT CC; aluminium; 760mm length; flat
Stem:
MERIDA TEAM CC III; aluminium; 31.8mm handlebar center diameter; -6° angle; incl. MERIDA SMART MOUNT, Length: 60mm
Grips:
MERIDA COMP TR
Headset:
Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing, Spacers: 1x10mm, 1x5mm, 1x2.5mm
Wheels
Wheel size:
29
Rims:
MERIDA EXPERT CC II; 25mm width; aluminium; Tubeless ready (tubeless tape and valves not included) , Rim tape: Stans 25mm tubeless tape installed
Front hub:
Shimano TC500-B; 110x15mm; 32H; Centerlock
Rear hub:
Shimano TC500-MS-B; 148x12mm; 32H; Centerlock, Axle: MERIDA EXPERT TR; including removable lever, 6/4mm allen key
Front tire:
Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO
Rear tire:
Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO
Tubes:
CST Ultralite
Spokes:
Double Butted Black stainless w/black nipples
Saddle and components
Saddle:
MERIDA COMP SL; 25% recycled material; V-mount
Seat post:
MERIDA EXPERT
Seat post clamp:
MERIDA TEAM TR SL; 30.9mm diameter; 0mm setback; S/M: 150 SPT - L/XL/XXL: 170 SPT
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
11.8 kg
Maximum load (bicycle+cyclist):
120 kg
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
