Bicycle specifications
PWseries ST Features
The PWseries ST features Yamaha's Quad Sensor System so that it can deliver assist optimized for all conditions despite weighing 100g less than the previous model. The unit also offers a broader assist range that can accommodate high-cadence pedaling. The tuning of the PWseries ST makes this drive unit the perfect all-rounder. Whether you're a newcomer to the sport or a veteran rider, and whether you're on- or off-road, the PWseries ST delivers fun, pleasant assistance for all riders.
Automatic Support Mode for all-round Sports and Trail
It's no simple feat to shift gears, adjust seat height, and change ride modes at roughly the same time. The Automatic Support Mode for the PWseries ST selects the right amount of assist based on riding conditions. Whether you're starting from a stop, accelerating, braking, riding on a level surface, or climbing a hill, you can leave ride mode changes to the system and focus on shifting and braking.
Natural and Powerful Assist Feeling
A powerful ride is the best thing about eMTBs, but a lack of control would leave you prone to wheelies during climbs and spinning tires on poor surfaces. The Yamaha tuning for the PWseries ST allows the drive unit software to handle power control. By combining power with stable control, this technology makes it easier for the rider to start with peace of mind even from halfway up the steepest of hills.
Technical Specifications
| Drive Unit | Center |
|---|---|
| Rated Power | 250 W |
| Max. Torque | 70 Nm |
| Support Mode | HIGH, STD, ECO, +ECO |
| Voltage | 36 V |
| Max. Support Speed | 25 km/h |
| Weight | 3.4 kg |
PWseries ST Savybės
PWseries ST turi Yamaha keturių jutiklių sistemą, todėl gali teikti visoms sąlygoms optimizuotą pagalbą, nors sveria 100 g mažiau nei ankstesnis modelis. Įrenginys taip pat siūlo platesnį pagalbos diapazoną, kuris gali būti pritaikytas dideliam pedalų mynimo greičiui. Nesvarbu, ar esate sporto naujokas, ar veteranas, ar važiuojate keliu, ar bekele, PWseries ST užtikrina smagią ir malonią pagalbą visiems dviratininkams.
Naujasis PWseries ST automatinis pagalbinis režimas
Naujasis PWseries ST automatinis pagalbinis režimas parenka reikiamą pagalbos kiekį pagal važiavimo sąlygas. Nesvarbu, ar pradedate važiuoti iš sustojimo, ar greitėjate, ar stabdote, ar važiuojate lygiu paviršiumi, ar kopiate į kalną, važiavimo režimo keitimą galite palikti sistemai ir sutelkti dėmesį į pavarų perjungimą ir stabdymą.
Natūralus ir galingas pagalbos pojūtis
Galingas važiavimas yra geriausias eMTB bruožas, tačiau dėl kontrolės trūkumo įkalnėse priekinis ratas gali pakilti nuo dangos, o ant prastos dangos prasisukti ratai. Dėl Yamaha atlikto PWseries ST derinimo galios valdymu rūpinasi variklio programinė įranga. Derinant galią su stabiliu valdymu, ši technologija palengvina dviratininkui ramiai pradėti važiuoti net įpusėjus stačiausią įkalnę.
Techninės savybės
| Variklis | Įmontuotas centre |
|---|---|
| Nominali galia | 250 W |
| Sukimo momentas | 70 Nm |
| Režimai | HIGH, STD, ECO, +ECO |
| Įtampa | 36 V |
| Didž. Palaikomas greitis | 25 km/val. |
| Svoris | 3,4 kg |

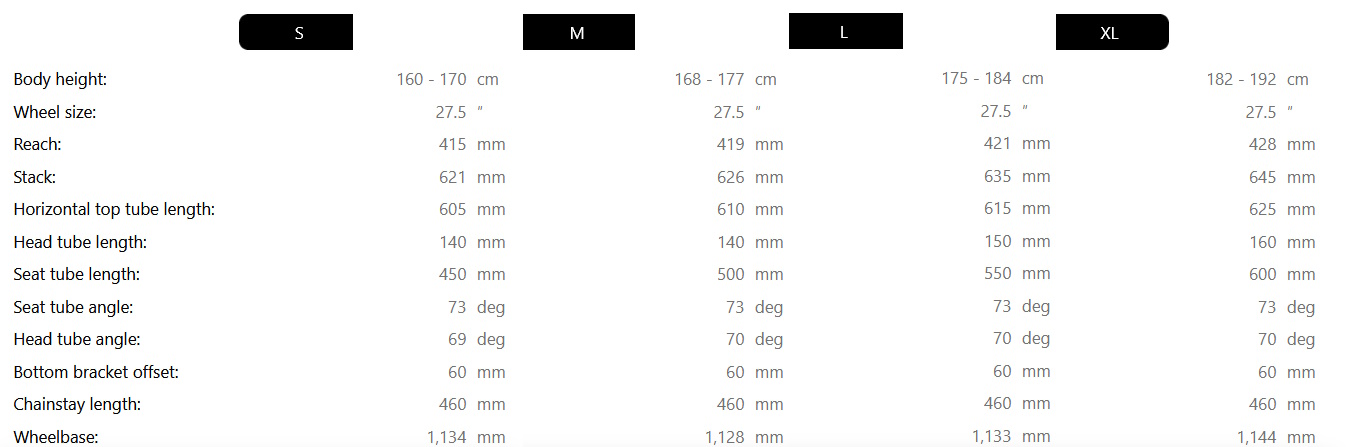

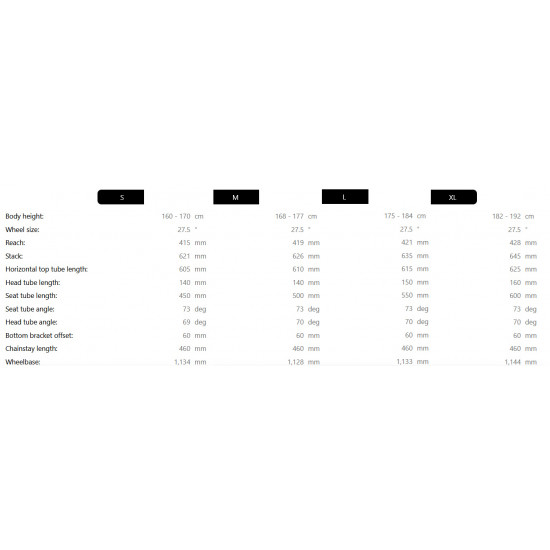

Frame geometry
- Seat tube length: 450 mm
- Reach: 415 mm
- Stack: 621 mm
- Top tube: 605 mm
- Steering angle: 69 mm
- Seat tube angle: 73 mm
- Head tube: 140 mm
- BB drop: 60 mm
- Wheelbase: 1134 mm
- Chain stay: 460 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 680 mm
- Seatpost length: 350 mm
- Ground clearance: 200 mm
- Standover: 800 mm
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
