Description - Bicycle Raymon Soreno Pro 2025 sand-black
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Carbon MLC Composite
Fork:
Carbon Gravel Disc
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Sram APEX XPLR AXS, 12-S
Shifters:
Sram APEX AXS
Crankset:
Sram Apex, 40T
Cassette:
Sram PG1231 XPLR, 11-44T
Chain:
Sram APEX
Brake system
Brakes:
Sram APEX, 2-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Aluminium 31,8mm
Stem:
Raymon 31,8mm
Grips:
Raymon tape, anti slip
Headset:
Acros AIX-526 IS52/28,6/ICR/P/IPS-IS52/40/IPS
Wheels
Wheel size:
28"
Wheelset:
Raymon VR32/DA210 12x100/12x142 mm
Front tire:
Continental Terra Trail ,45-622
Tires:
Continental Terra Trail ,45-622
Saddle and components
Saddle:
Raymon 140 SL VM Fit
Seat post:
Raymon, carbon offset: 8mm 31,6 mm
Seat post clamp:
integrated
Weight and dimensions
Weight:
9,9 kg
Maximum load (rider+bicycle):
120 kg

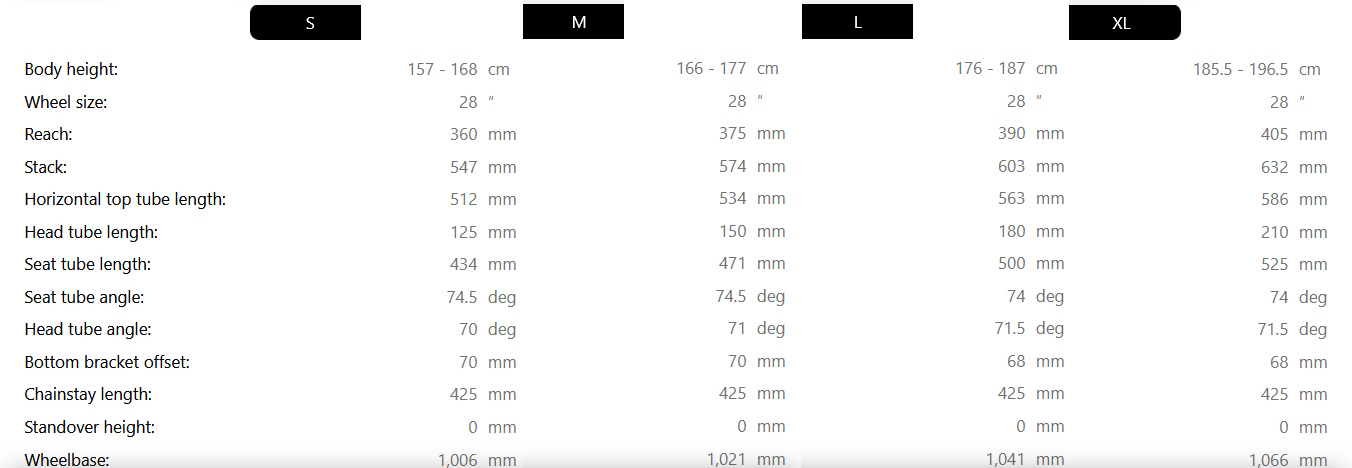

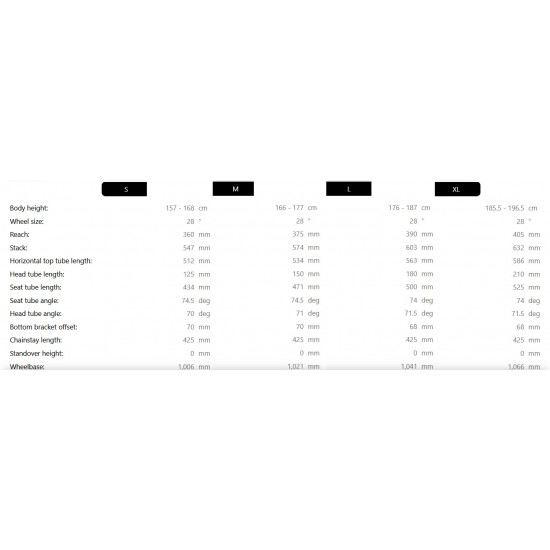

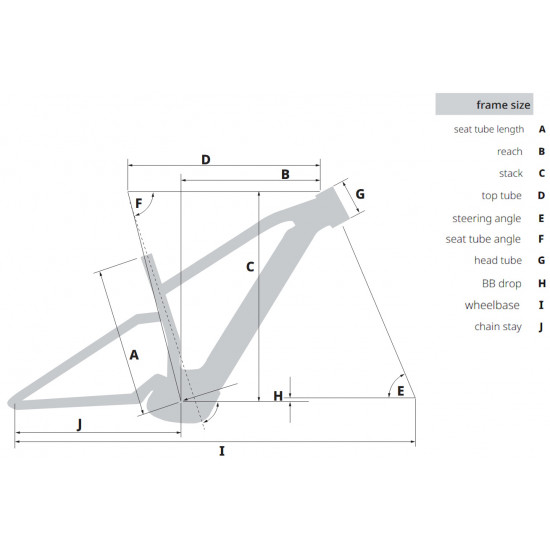

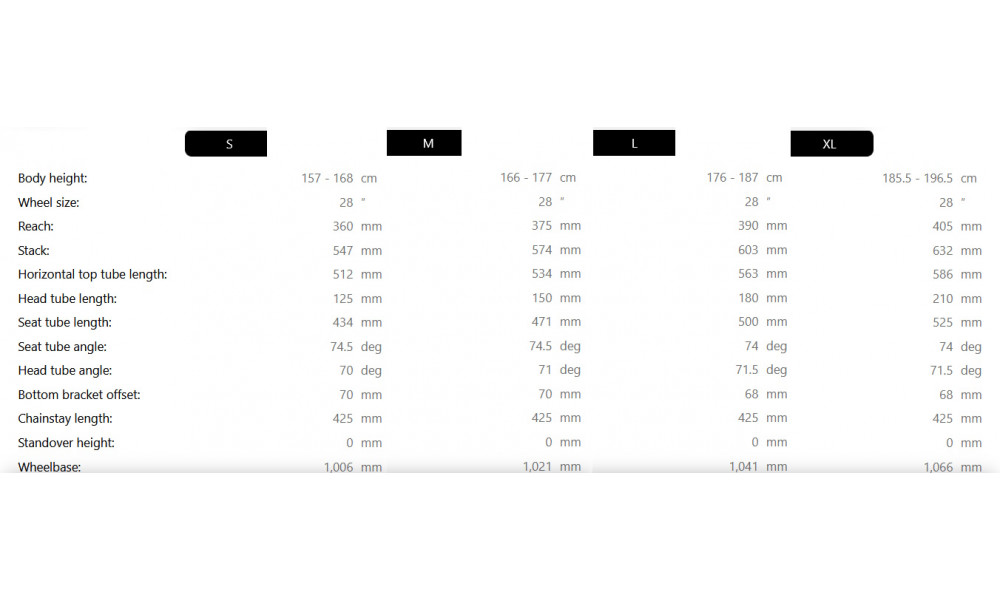

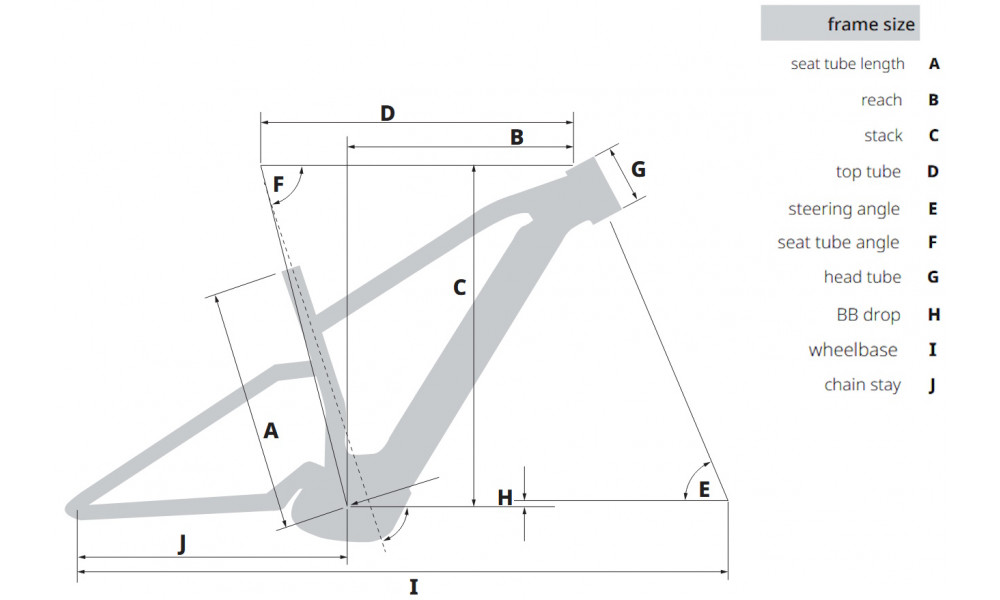

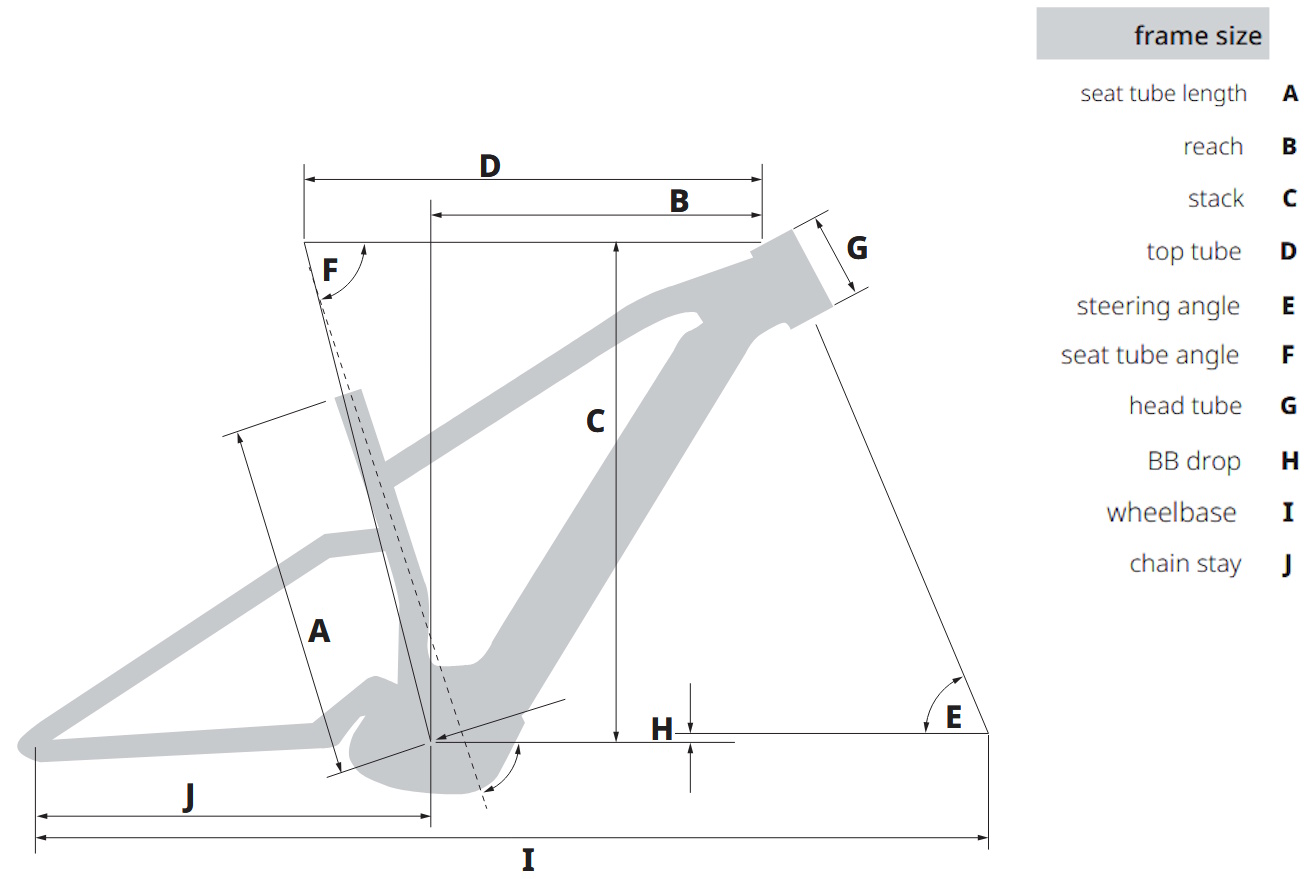

Frame geometry
- Seat tube length: 434 mm
- Reach: 360 mm
- Stack: 547 mm
- Top tube: 512 mm
- Steering angle: 70 mm
- Seat tube angle: 74,5 mm
- Head tube: 125 mm
- BB drop: 70 mm
- Wheelbase: 1006 mm
- Chain stay: 425 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 380 mm
- Seatpost length: 350 mm
- Ground clearance: 190 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
