Description - Bicycle Raymon Zayn Pro 2025 Trapeze anthracite
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Aluminium 6061
Fork:
SR Suntour NEX, coil, 63 mm
Drivetrain
Speeds:
18
Drivetrain system:
2x9
Drivetrain type:
External
Rear derailleur:
Shimano Cues, RD-U3020, 18-S
Front derailleur:
Shimano CUES, FD-4010
Shifters:
Shimano Cues, SL-U4000, Rapidfire Plus
Crankset:
Shimano Cues, FC-U4010, 46/30T
Cassette:
Shimano CS-LG300, 11-36T
Chain:
Shimano CN-LG500
Brake system
Brakes:
Shimano BR-MT200, 2-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Ergo 31,8 mm, Sweep: 15 °, Rise: 20 mm
Stem:
Raymon 31.8, Ahead, adjustable
Grips:
Raymon Ergo, lock on
Headset:
Raymon ZS44/ZS44
Wheels
Wheel size:
28"
Wheelset:
Ryde Disc19/Shimano 3D37/QC300, QR
Front tire:
Schwalbe Road Cruiser, Reflex, 47-622, 28x1.75
Tires:
Schwalbe Road Cruiser, Reflex, 47-622, 28x1.75
Saddle and components
Saddle:
Raymon MIMA VM fit
Seat post:
Raymon, 27,2 mm
Seat post clamp:
31,8, hex screw
Accessories
Mudguards:
Raymon 28 PET
Kickstand:
Aluminium, adjustable
Carrier:
Raymon, MIK, clamp
Front light:
AXA Nxt 30, 30 lx
Rear light:
AXA Blueline Steady
Weight and dimensions
Weight:
17,3 kg
Maximum load (rider+bicycle):
120 kg

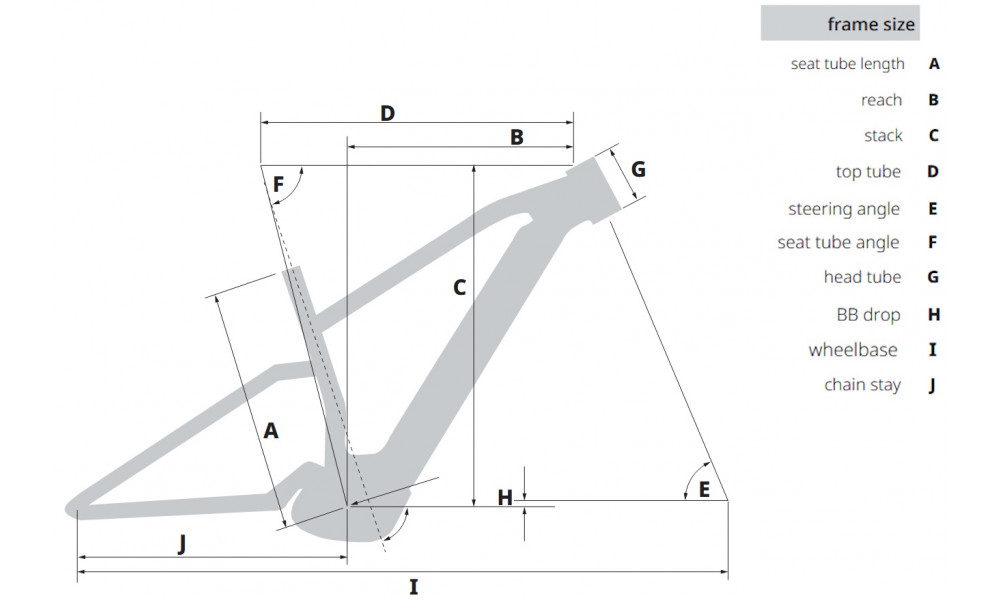

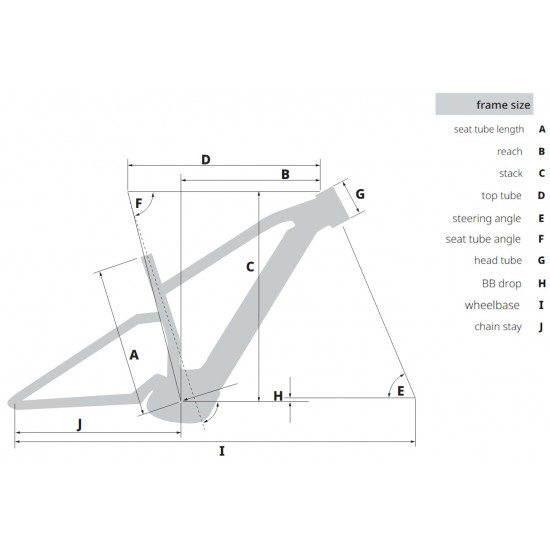

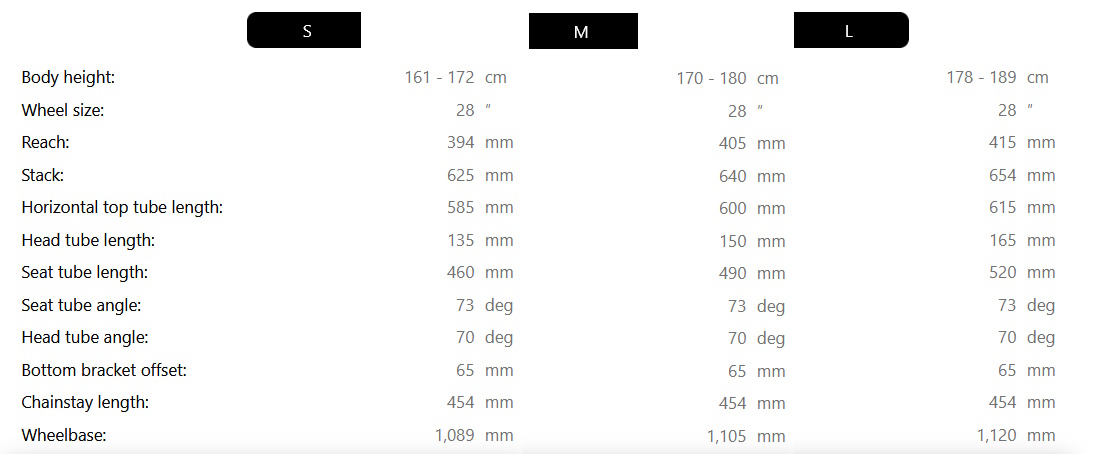

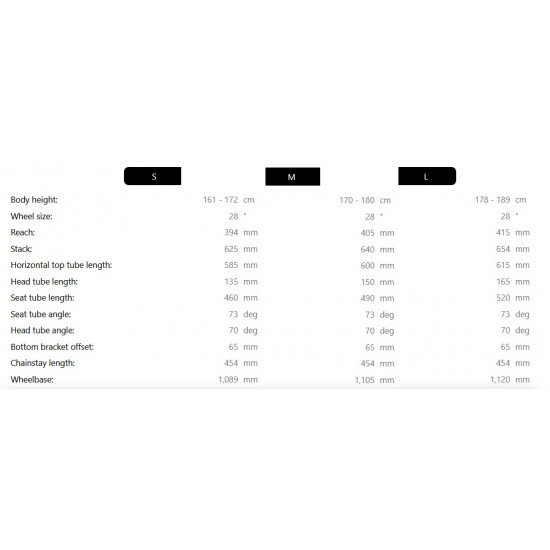

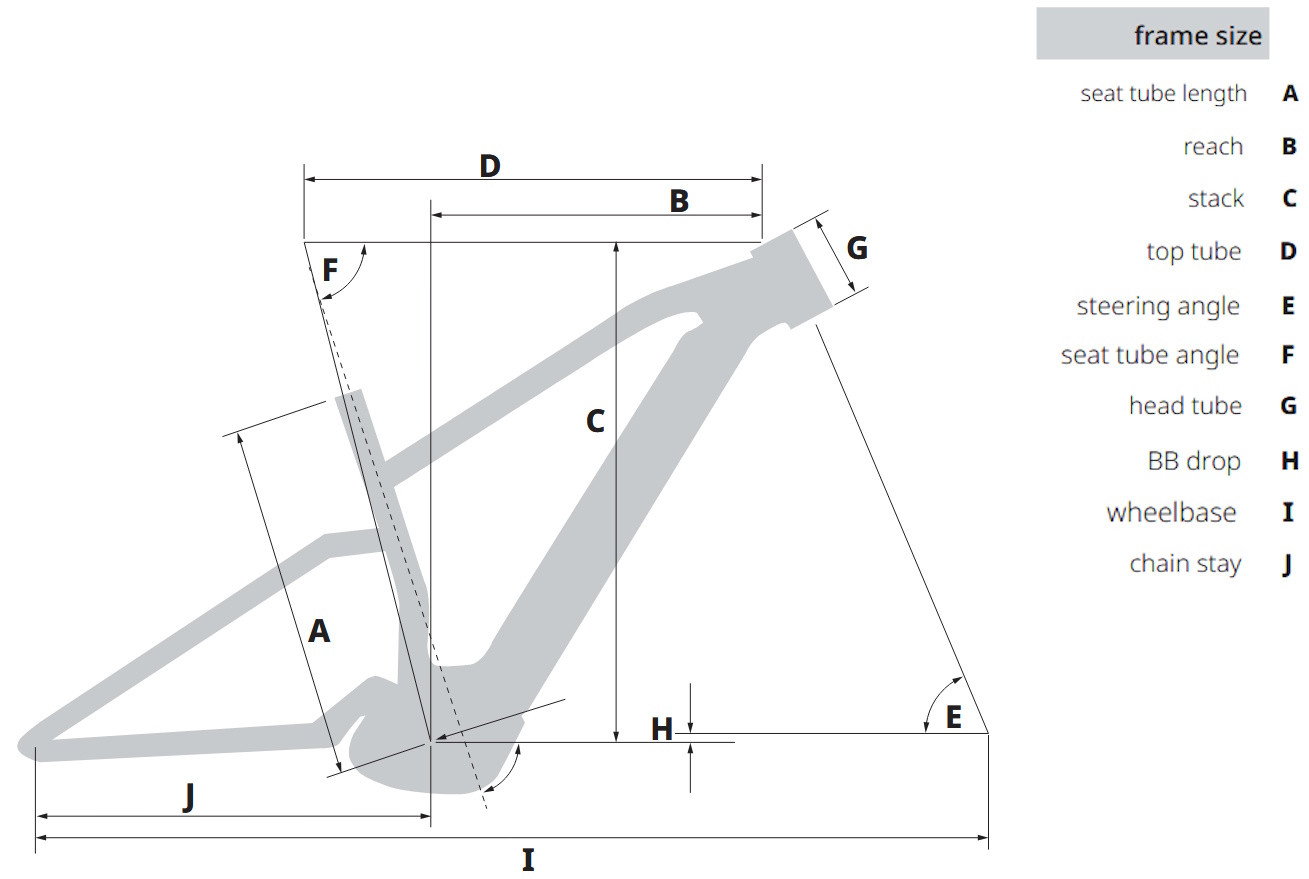

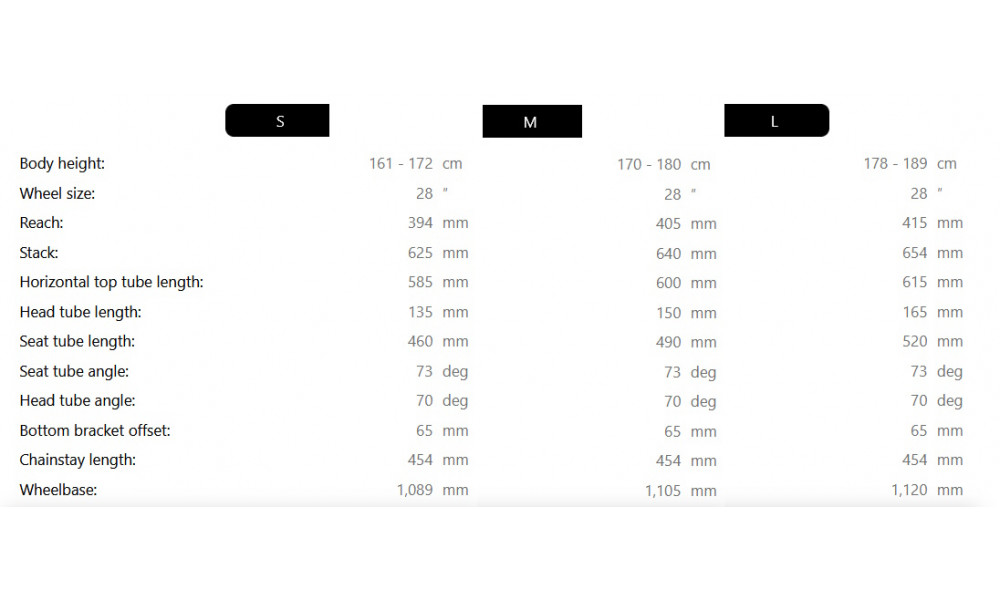

Frame geometry
- Seat tube length: 460 mm
- Reach: 394 mm
- Stack: 625 mm
- Top tube: 585 mm
- Steering angle: 70 mm
- Seat tube angle: 73 mm
- Head tube: 135 mm
- BB drop: 65 mm
- Wheelbase: 1089 mm
- Chain stay: 454 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 680 mm
- Seatpost length: 350 mm
- Ground clearance: 0 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
