Bicycle specifications
E-bike system
Engine:
Bosch Performance Line CX, 250/600 W, 85 Nm
Bicycle computer:
Bosch LED Remote, Bluetooth
Battery:
Bosch PowerTube, 800 Wh, 36 V
Charger:
Bosch Charger, 4 A
Frame and suspension
Frame:
Aluminium 6061, removeable battery, boost
Fork:
RockShox Recon Gold RL, air, 80 mm, tapered
Drivetrain
Drivetrain type:
External
Rear derailleur:
Shimano Deore XT, RD-M8100, Shadow Plus, 12-speed
Shifters:
Shimano Deore, SL-M8100, Rapidfire Plus
Crankset:
Raymon, Narrow Wide, 40T, CG
Cassette:
Shimano CS-M7100, 10-51T
Brake system
Brakes:
Shimano BR-M8120, 4-piston, Hydraulic Disc
Cockpit
Handlebar:
Raymon Riser 31,8 mm, Sweep: 15 °, Rise: 30 mm
Stem:
Raymon 31.8, Ahead, adjustable
Grips:
Raymon Ergo, lock on
Headset:
FSA CR, Internal Cable Routing
Wheels
Wheelset:
Raymon VR24/DT210, 15x110/12x148 mm
Front tire:
Schwalbe Marathon E-Plus, Reflex, 55-622, 29x2.15
Tires:
Schwalbe Marathon E-Plus, Reflex, 55-622, 29x2.15
Saddle and components
Saddle:
Raymon MIMA VM fit
Seat post:
Raymon, 34,9 mm, Dropper Post
Seat post clamp:
38,9, hex screw
Accessories
Kickstand:
Ursus MOOI, KSA40, adjustable
Carrier:
Raymon, MIK HD, 27 kg
Front light:
Litemove SEC-150, 150 lx
Rear light:
Spanninga Glow

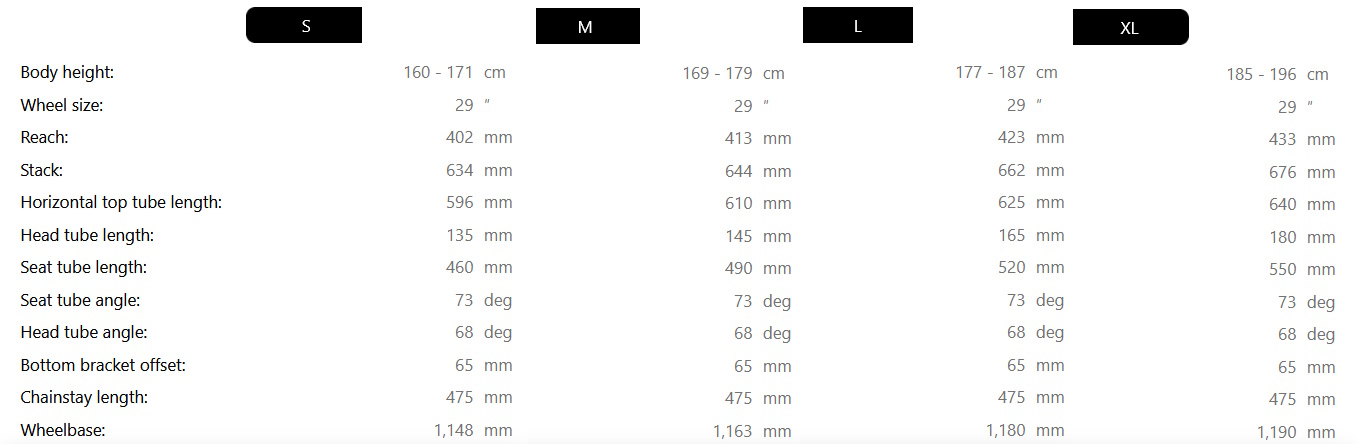

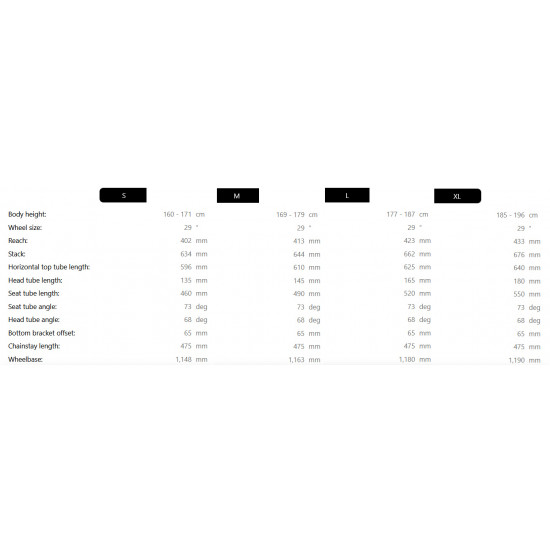

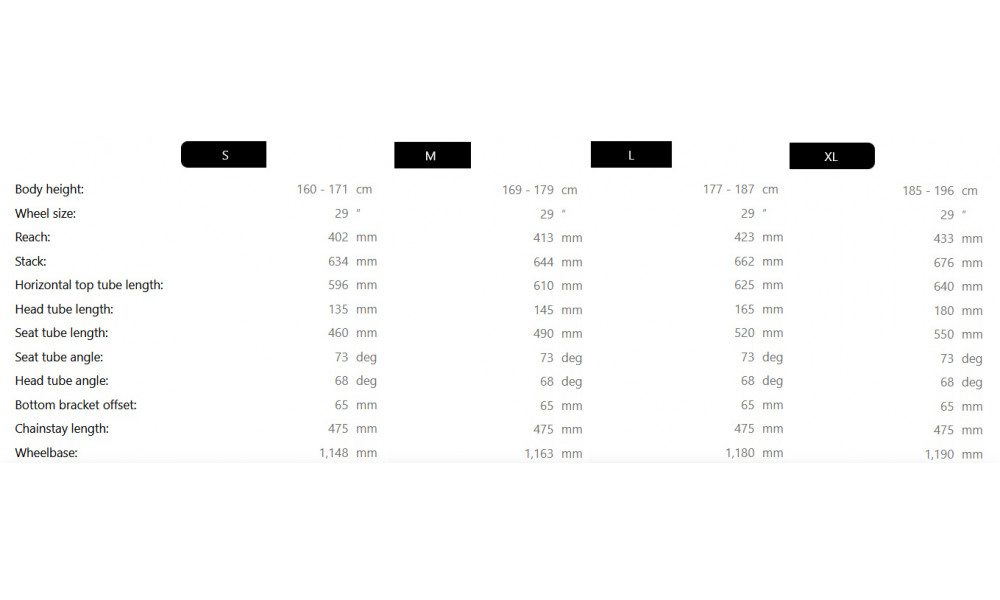

Weight and dimensions
Maximum load (rider+bicycle):
150 kg
The Performance Line CX takes riding dynamics and agility to a whole level. It is powerful, light and quiet. Ten years of experience and countless trail rides all over the world have gone into its further development. The Performance Line CX combines power, dynamics, efficiency and altitude. 85-600-340: These values represent the ideal balance between performance and riding fun in relation to wear and range. 85 Nm Max. Torque; 600 W Max. motor power; 340 % Max. support factor.
