Description - E-bike Raymon Metmo base 27.5" 2025 aqua-mint
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle specifications
E-bike system
Engine:
Bosch Active Line Plus, 250/600 W, 50 Nm
Bicycle computer:
integrated in display
Remote:
Bosch Purion 200, Bluetooth
Battery:
Bosch PowerTube, 600 Wh, 36 V
Charger:
Bosch Charger, 4 A
Frame and suspension
Frame:
Aluminium 6061, removeable battery
Fork:
SR Suntour XCM32-ATB, coil, 80 mm, tapered
Drivetrain
Speeds:
8
Drivetrain system:
1x8
Drivetrain type:
External
Rear derailleur:
Shimano Acera, RD-M3020-8, 8-S
Shifters:
Shimano SL-M315, Rapidfire Plus
Crankset:
Raymon, 38T
Cassette:
Shimano CS-HG400-8, 11-40T
Chain:
KMC e8S
Brake system
Brakes:
Tektro Vela, 2-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Ergo 31,8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Stem:
Raymon 31.8, Ahead, adjustable
Grips:
Raymon Ergo, lock on
Headset:
FSA CR, Internal Cable Routing
Wheels
Wheel size:
27.5"
Wheelset:
Raymon VR18/DN619
Front tire:
Continental eContact Plus, Reflex, 55-584, 27.5x2.20
Tires:
Continental eContact Plus, Reflex, 55-584, 27.5x2.20
Saddle and components
Saddle:
Raymon MIMA VM fit
Seat post:
Raymon, 34,9 mm
Seat post clamp:
38,9, hex screw
Accessories
Mudguards:
Curana Apollo
Kickstand:
Raymon, KSA18, adjustable
Carrier:
Raymon, MIK HD, 27 kg
Front light:
AXA Nxt 30, 30 lx
Rear light:
Litemove TX3 Raymon
Weight and dimensions
Weight:
27,7 kg
Maximum load (rider+bicycle):
130 kg
Active Line Plus Features
Experience something new: The Active Line Plus is the ideal companion for commuting to work and for excursions within and outside the city. The drive unit ensures smooth, agile acceleration and enables easy handling. The barely perceptible pedal resistance above 25 km/h or in Off mode increases the fun factor when exploring and on every ride.
Dynamic riding
Smooth, agile, natural: The Active Line Plus drives you forward with dynamic start-up behaviour.
Relaxation on tour
Easy to pedal even without electric support or above 25 km/h for more relaxation during every trip.
Safe and convenient
Optionally with backpedal brake for a feeling of safety especially when riding short distances with frequent braking manoeuvres.
Glide quietly along
The quietest drive from Bosch: suitable for cities with steep hills or excursions into the countryside.
Super quiet
The quietest drive unit in the Bosch portfolio.
Backpedal brake
Comfort option for eBikes with hub gear system.
Auto mode
Automatic adjustment of support.
Max. 50 Newton metres
Smooth, agile support.
Active Line Plus Savybės
Patirkite kažką naujo: Active Line Plus yra idealus partneris keliaujant į darbą ir į ekskursijas mieste ir už jo ribų. Variklis užtikrina sklandų, veržlų pagreitį ir leidžia lengvai valdyti dviratį. Vos juntamas pasipriešinimas pedalams važiuojant didesniu nei 25 km/val. greičiu arba be elektros pagalbos padidina malonumo faktorių tyrinėjant kiekvienoje kelionėje.
Dinamiškas važiavimas
Sklandus, veržlus, natūralus: Active Line Plus jus veda į priekį, pasižymėdama dinamišku įsibėgėjimu.
Atsipalaidavimas kelionėje
Lengvas pedalų mynimas net be elektros pagalbos arba važiuojant didesniu nei 25 km/val. greičiu - daugiau atsipalaidavimo kiekvienoje kelionėje.
Saugumo jausmas
Pasirinktinai su atbulinės eigos stabdžiu - ypač važiuojant trumpus atstumus ir dažnai atliekant stabdymo manevrus.
Bosch užtikrina tyliausią važiavimą
Tinka miestuose su stačiomis įkalnėmis arba išvykose į užmiestį.
Atgalinis stabdys
Komfortiška parinktis eBikes dviračiams su vidine pavarų sistema.
Automatinis režimas
Automatinis galios reguliavimas.
50Nm
Sklandi, judri elektros variklio pagalba.

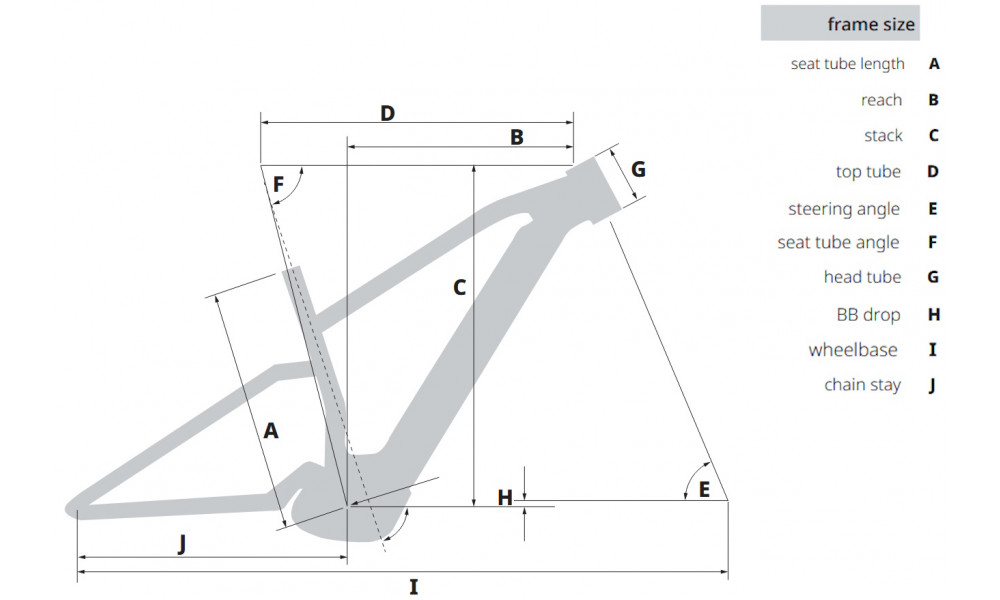

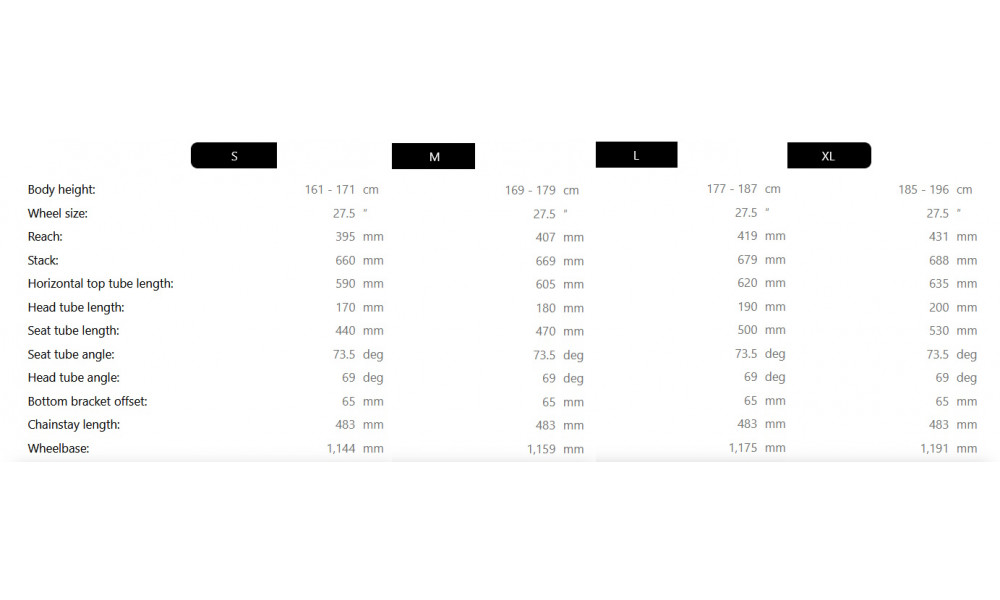

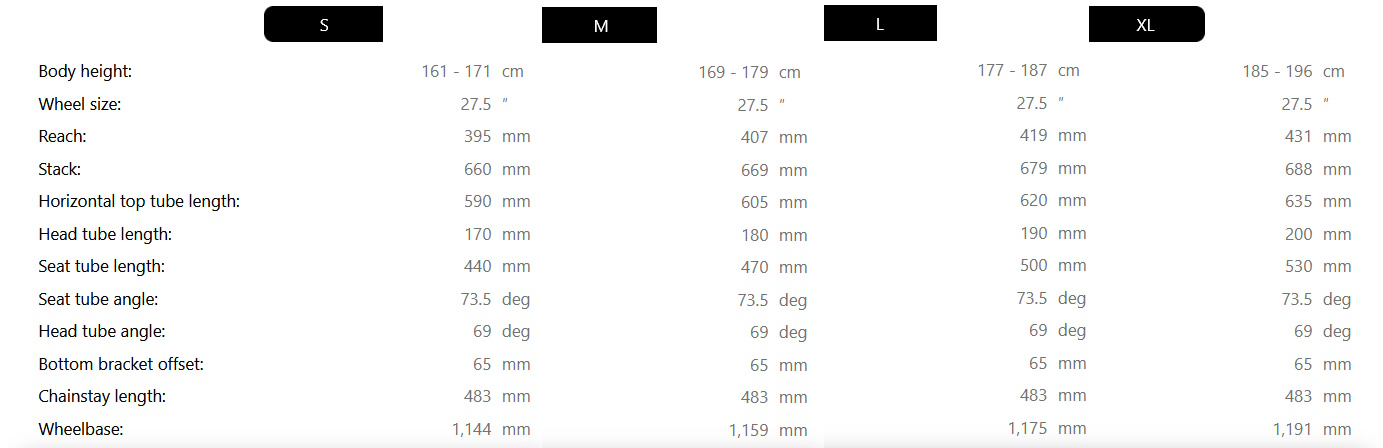

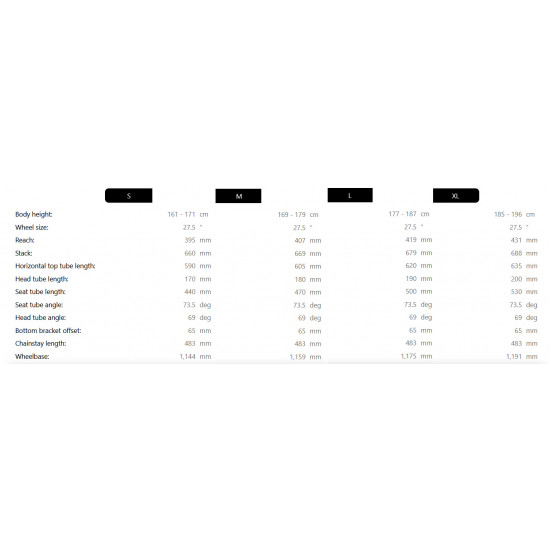

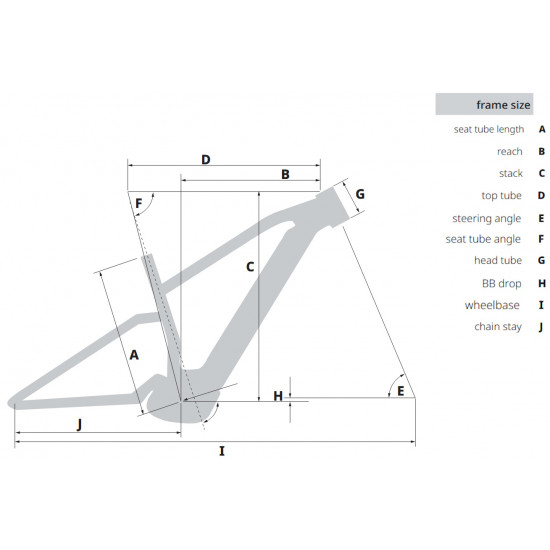

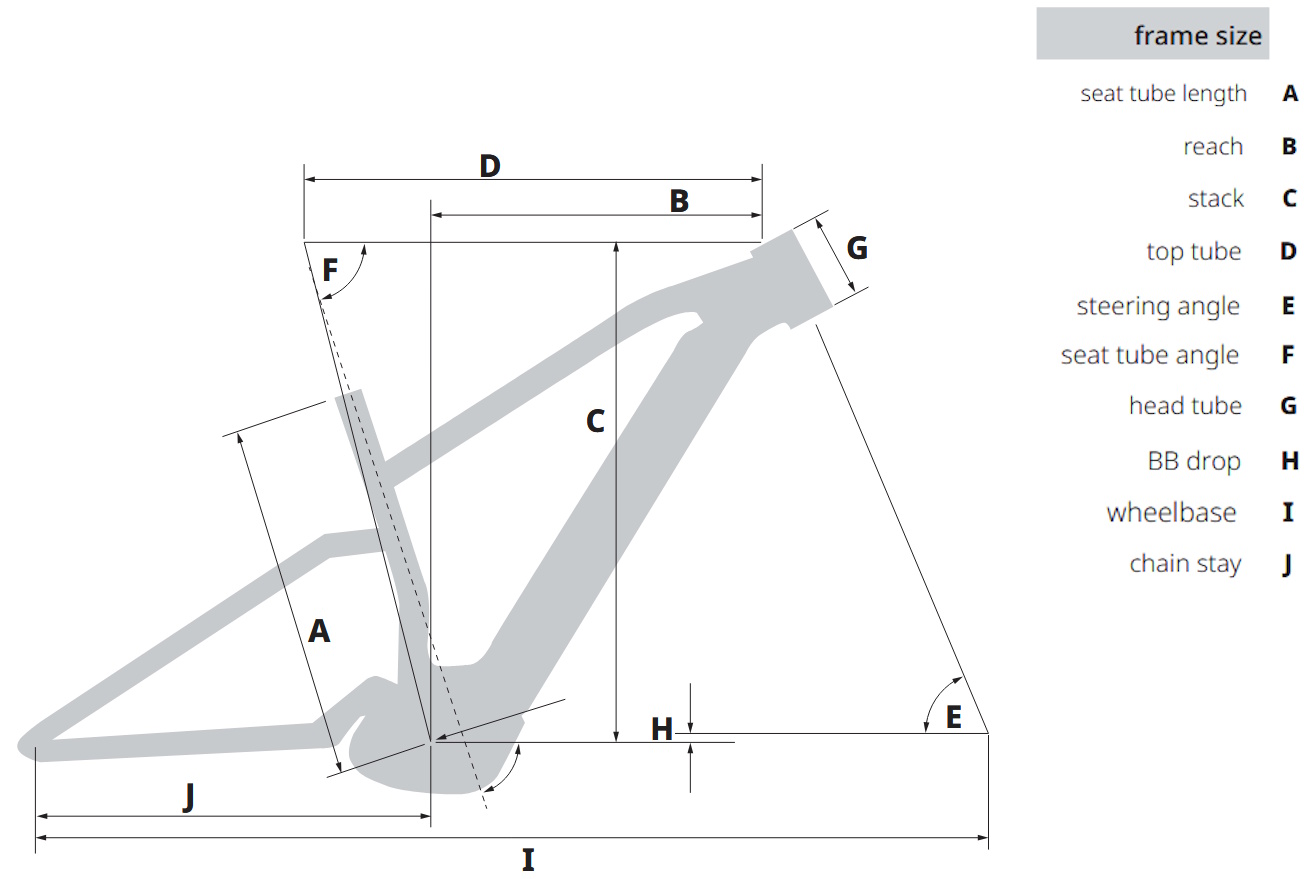

Frame geometry
- Seat tube length: 440 mm
- Reach: 395 mm
- Stack: 660 mm
- Top tube: 590 mm
- Steering angle: 69 mm
- Seat tube angle: 73,5 mm
- Head tube: 170 mm
- BB drop: 65 mm
- Wheelbase: 1144 mm
- Chain stay: 483 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 640 mm
- Seatpost length: 300 mm
- Ground clearance: 190 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
