Description - Bicycle Raymon Nayta 29" 2025 mustard-lime-black
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Aluminium 6061
Fork:
SR Suntour XCE28, coil, 100 mm
Drivetrain
Speeds:
21
Drivetrain system:
3x7
Drivetrain type:
External
Rear derailleur:
Shimano Tourney, RD-TX800, 21-S
Shifters:
Shimano ST-EF515, EZfire Plus
Crankset:
Shimano Tourney, FC-TY301, 42/34/24T
Cassette:
Shimano CS-HG200, 12-32T
Chain:
KMC Z7
Brake system
Brakes:
Shimano BR-MT200, 2-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Riser 31,8mm, Sweep: 9°, Rise: 20mm
Stem:
Raymon 31,8, Ahead
Grips:
Raymon MTB, lock on
Headset:
ZS44/ZS44
Wheels
Wheel size:
29"
Wheelset:
Raymon X21/Shimano QC300/TY505-7, QR
Front tire:
Maxxis Ikon, 29x2.2
Tires:
Maxxis Ikon, 29x2.2
Saddle and components
Saddle:
Raymon 145 HM Fit
Seat post:
Raymon, 27,2 mm
Seat post clamp:
31,8, quick release
Accessories
Weight and dimensions
Weight:
14,2 kg
Maximum load (rider+bicycle):
120 kg

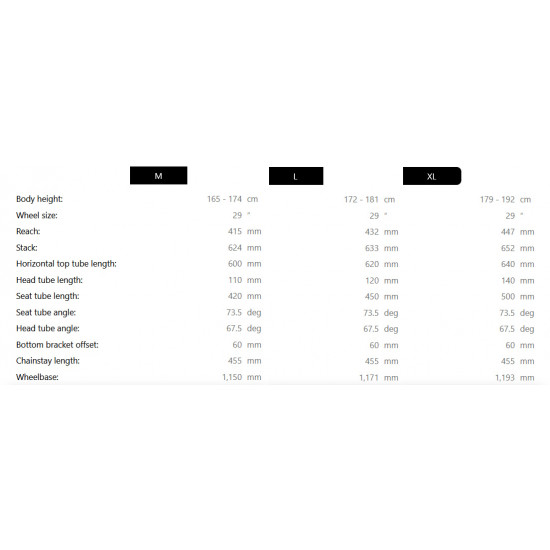

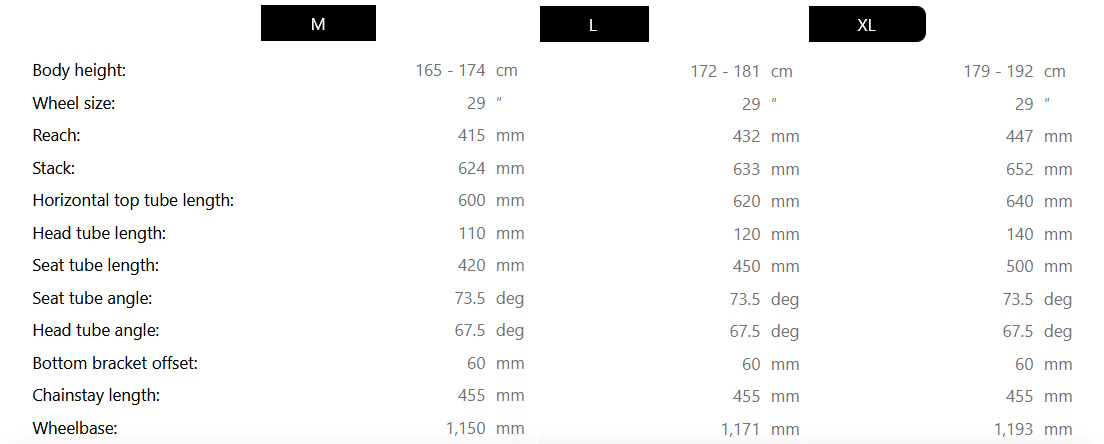

Frame geometry
- Seat tube length: 420 mm
- Reach: 415 mm
- Stack: 624 mm
- Top tube: 600 mm
- Steering angle: 67,5 mm
- Seat tube angle: 73,5 mm
- Head tube: 110 mm
- BB drop: 60 mm
- Wheelbase: 1150 mm
- Chain stay: 455 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 680 mm
- Seatpost length: 350 mm
- Ground clearance: 210 mm
- Standover: 750 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
