Description - E-bike Raymon Tahona Pro 800 29" 2025 mint-cotton-violet
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle specifications
E-bike system
Engine:
Bosch Performance Line CX, 250/600 W, 85 Nm
Bicycle computer:
Bosch LED Remote, Bluetooth
Remote:
Bosch Kiox 300
Battery:
Bosch PowerTube, 800 Wh, 36 V
Charger:
Bosch Charger, 4 A
Frame and suspension
Frame:
Aluminium 6061, removeable battery, boost
Fork:
SR Suntour MOBIE34 D-Boost LO, air, 80 mm, tapered
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Shimano Deore, RD-M6100, Shadow Plus, 12-S
Shifters:
Shimano Deore, SL-M6100, Rapidfire Plus
Crankset:
Raymon, Narrow Wide, 40T, CG
Cassette:
Shimano CS-M6100, 10-51T
Chain:
Shimano CN-M6100
Brake system
Brakes:
Tektro Volans, 4-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Riser 31,8 mm, Sweep: 15 °, Rise: 30 mm
Stem:
Raymon 31.8, Ahead, adjustable
Grips:
Raymon Ergo, lock on
Headset:
FSA CR, Internal Cable Routing
Wheels
Wheel size:
29"
Wheelset:
Raymon VR24/DT210, 15x110/12x148 mm
Front tire:
Schwalbe Advancer Hybrid, Reflex 57-622, 29x2.25
Tires:
Schwalbe Advancer Hybrid, Reflex 57-622, 29x2.25
Saddle and components
Saddle:
Raymon MIMA VM fit
Seat post:
Raymon, 34,9 mm
Seat post clamp:
38,9, hex screw
Accessories
Mudguards:
Curana Apollo
Kickstand:
Ursus MOOI, KSA40, adjustable
Carrier:
Raymon, MIK HD, 27 kg
Front light:
Litemove HKSE-70, 70 lx
Rear light:
Spanninga Glow
Weight and dimensions
Weight:
28,3 kg
Maximum load (rider+bicycle):
150 kg
The Performance Line CX takes riding dynamics and agility to a whole level. It is powerful, light and quiet. Ten years of experience and countless trail rides all over the world have gone into its further development. The Performance Line CX combines power, dynamics, efficiency and altitude. 85-600-340: These values represent the ideal balance between performance and riding fun in relation to wear and range. 85 Nm Max. Torque; 600 W Max. motor power; 340 % Max. support factor.
Su Performance Line CX važiavimo dinamika ir vikrumas pakyla į visiškai naują lygį. Jis galingas, lengvas ir tylus. Jį tobulinant buvo sukaupta dešimties metų patirtis ir nesuskaičiuojama daugybė važiavimų visame pasaulyje. Performance Line CX sujungia galią, dinamiką, efektyvumą ir maksimalų pagalbos koeficientą. 85-600-340: šios vertės atspindi idealią pusiausvyrą tarp našumo ir važiavimo malonumo atsižvelgiant į nusidėvėjimą ir ridą. 85 Nm maksimalus sukimo momentas; 600 W maksimali variklio galia; 340 % maksimalus pagalbos koeficientas.

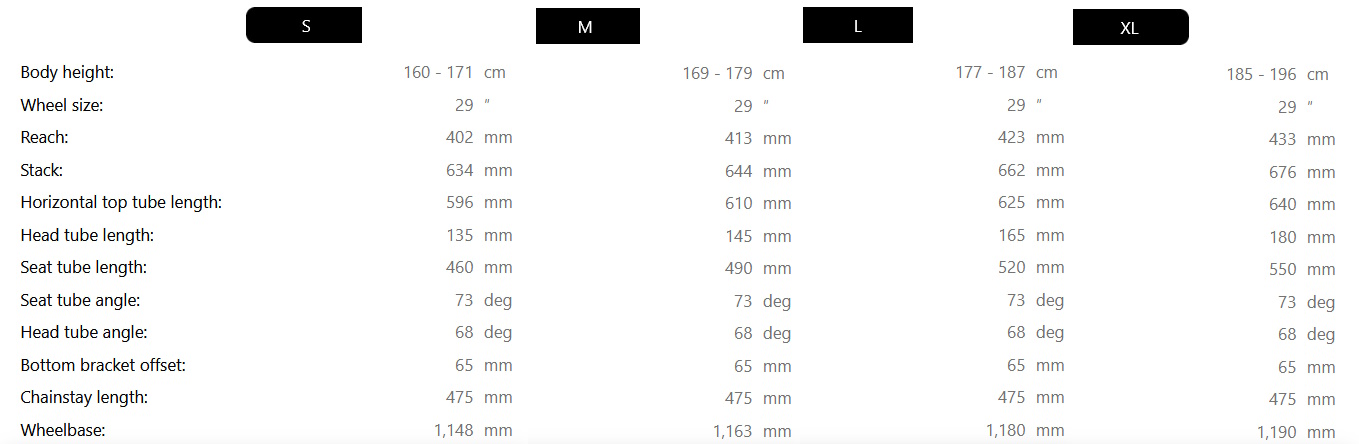

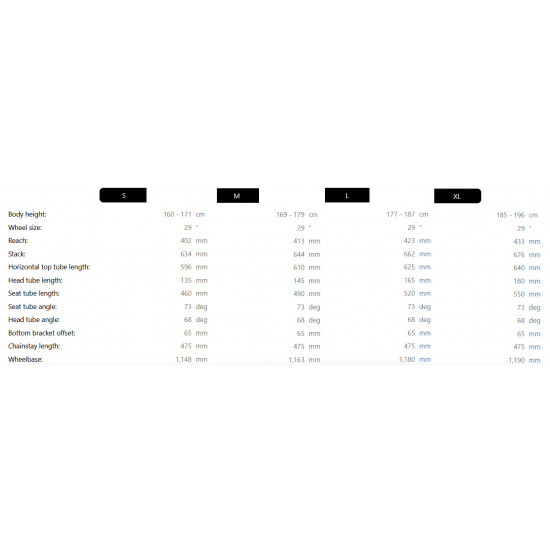

Frame geometry
- Seat tube length: 460 mm
- Reach: 402 mm
- Stack: 634 mm
- Top tube: 596 mm
- Steering angle: 68 mm
- Seat tube angle: 73 mm
- Head tube: 135 mm
- BB drop: 65 mm
- Wheelbase: 1148 mm
- Chain stay: 475 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 680 mm
- Seatpost length: 300 mm
- Ground clearance: 220 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
