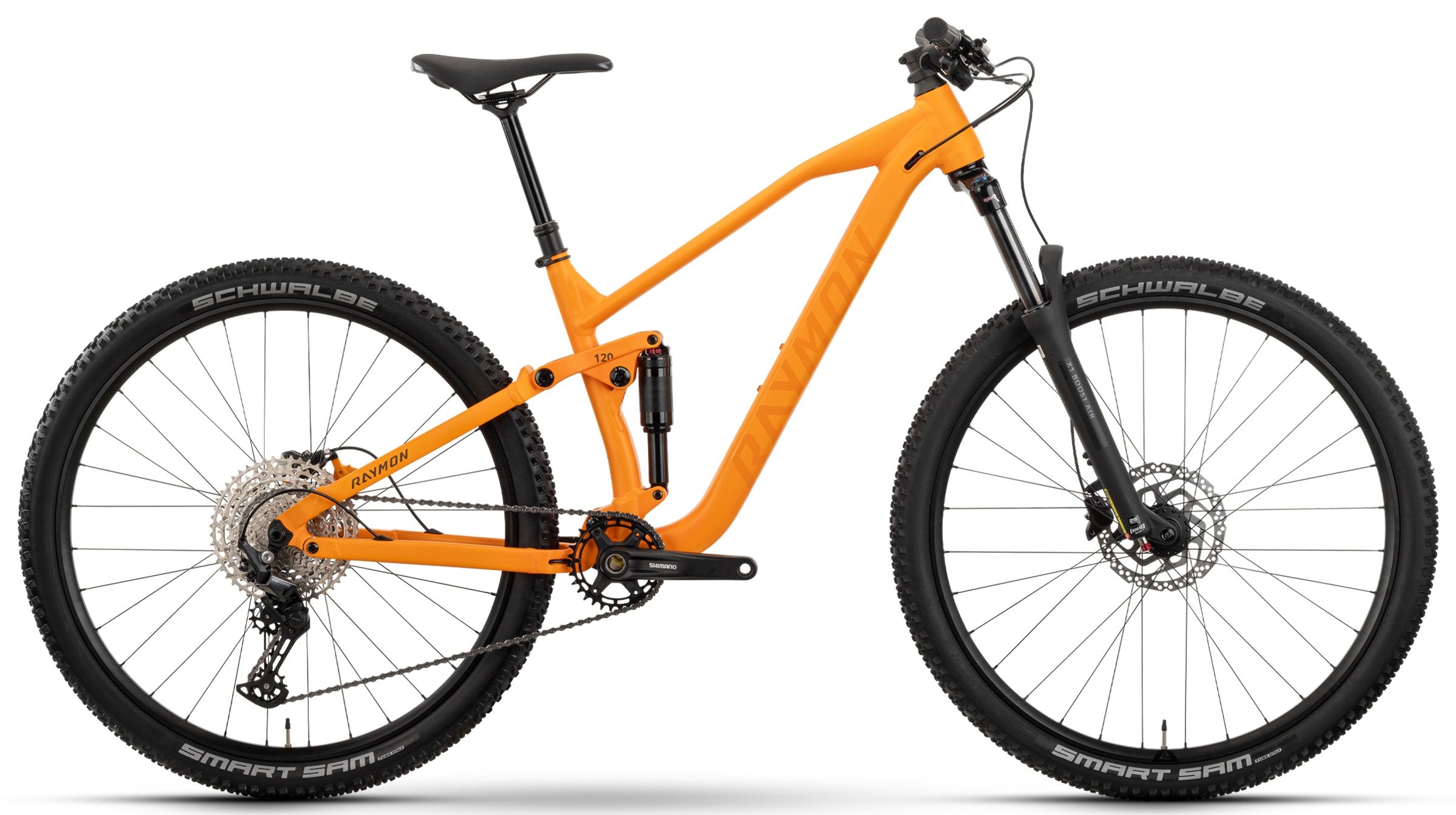

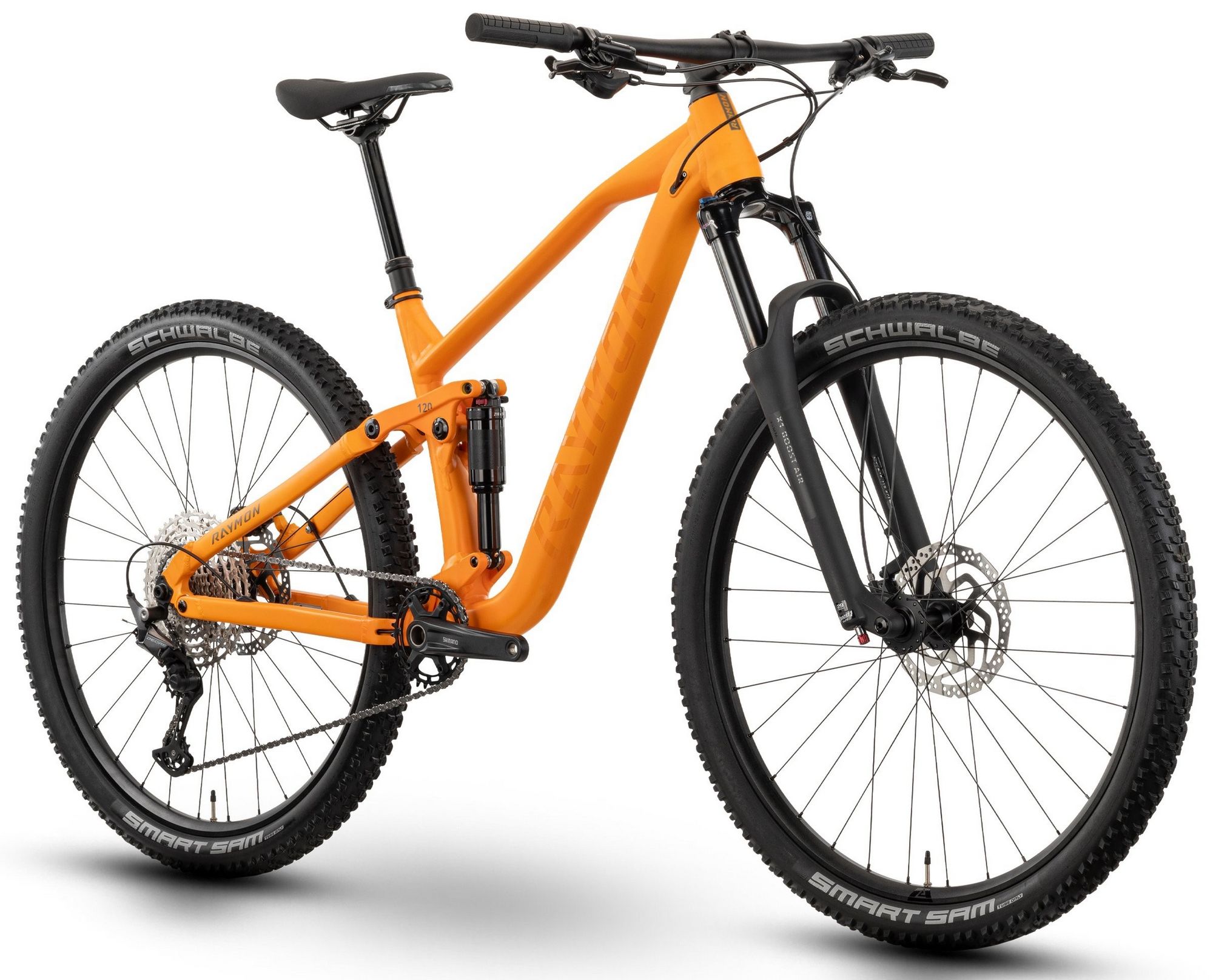

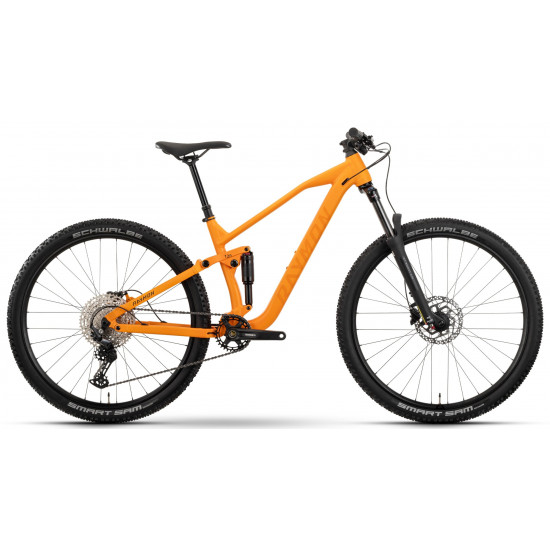

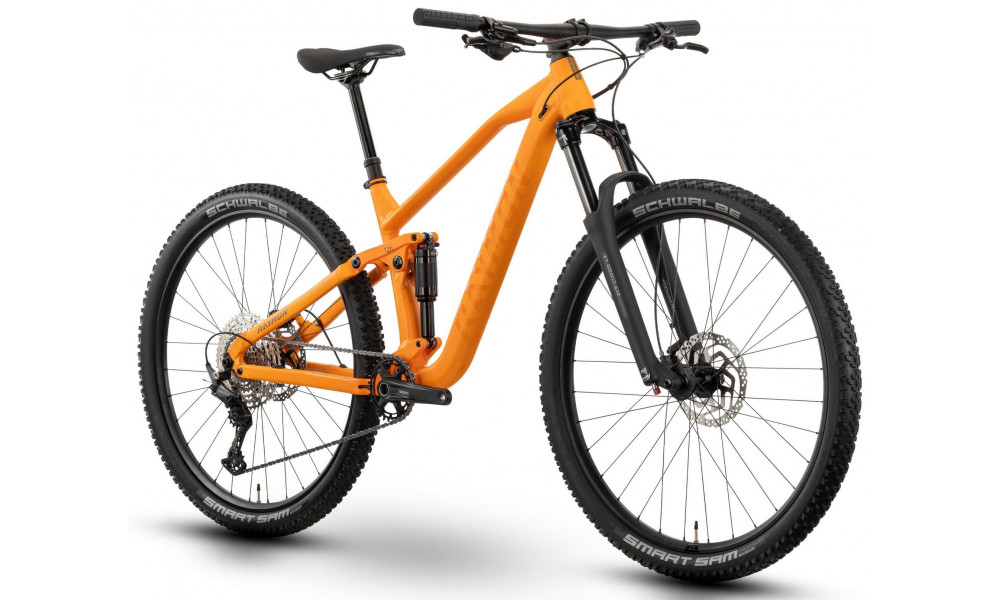

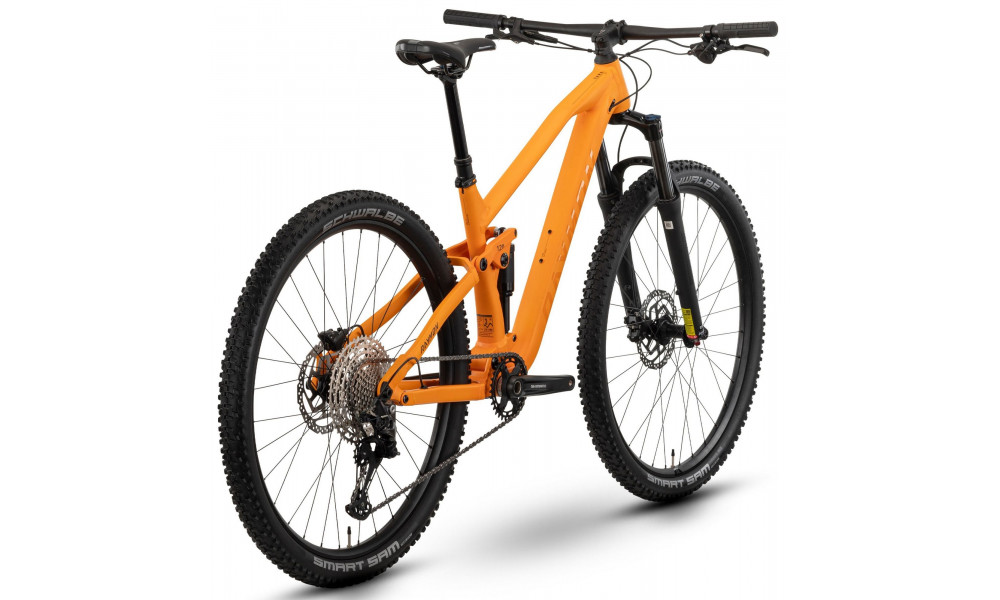

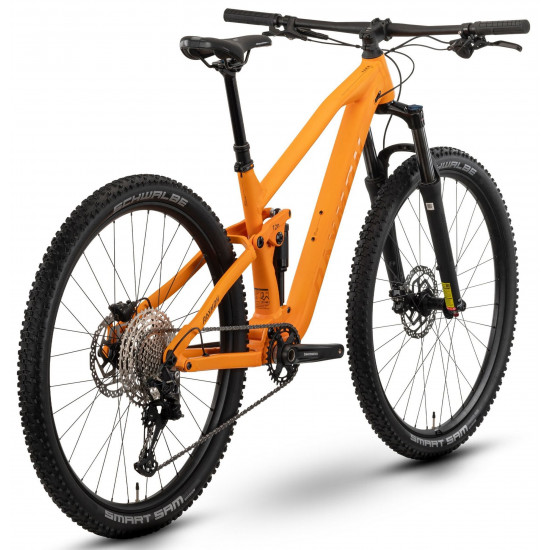

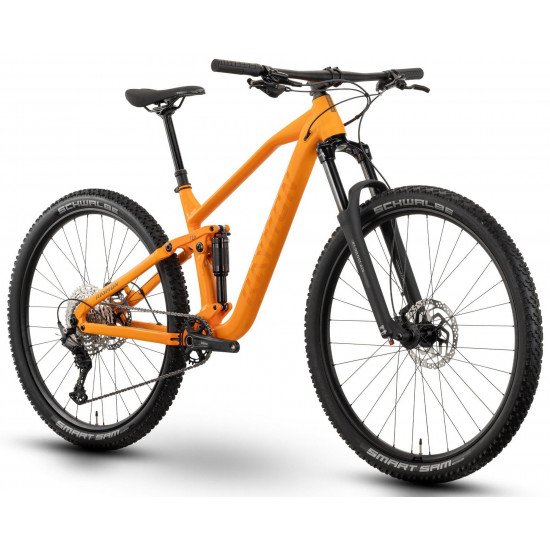

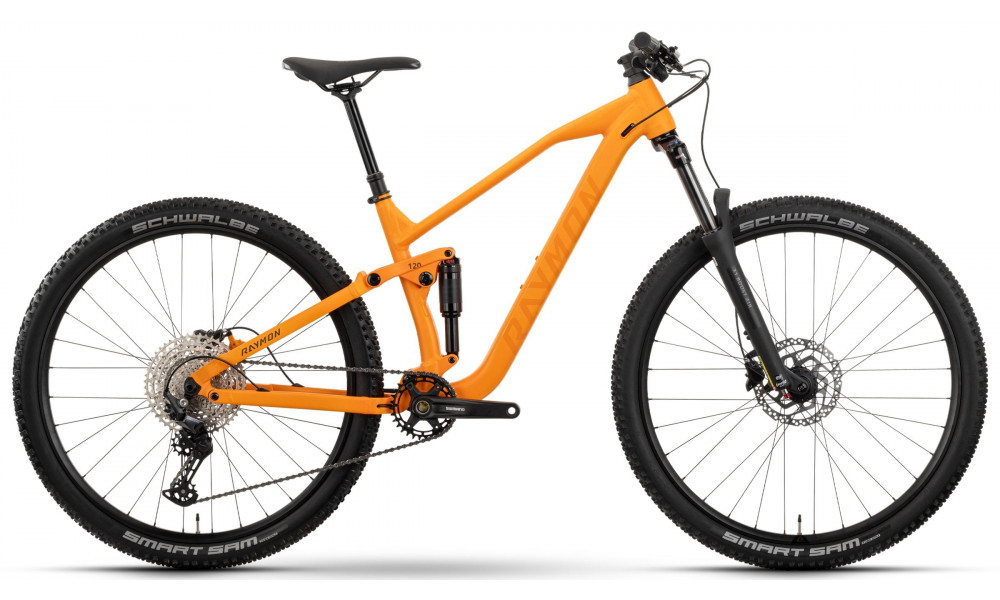

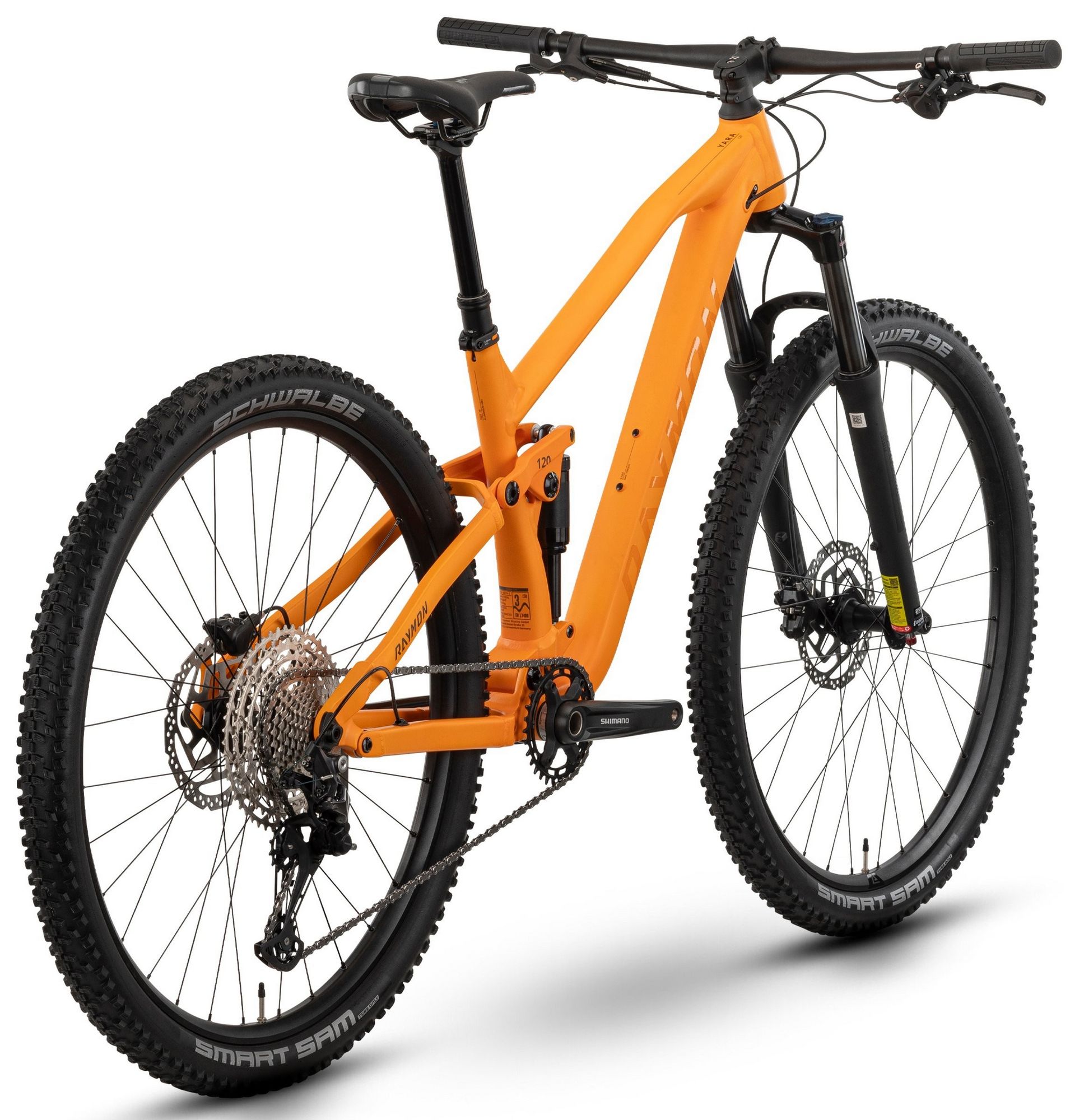

Description - Bicycle Raymon Yara 120 29" 2025 corn matt
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Aluminium 6061, boost, 120 mm
Shock:
SR Suntour Raidon R, air, 210x50 mm
Fork:
SR Suntour X1, air, 120 mm, tapered
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Shimano Deore, RD-M6100, Shadow Plus, 12-S
Shifters:
Shimano Deore, SL-M6100, Rapidfire Plus
Crankset:
Shimano FC-MT510-1, 32T
Cassette:
Shimano CS-M6100, 10-51T
Chain:
Shimano CN-M6100
Brake system
Brakes:
Shimano BR-MT200, 2-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Riser 31.8 mm, Sweep: 9 °, Rise: 15 mm
Stem:
Raymon 31.8, 0 °, Ahead
Grips:
Raymon Ergo, lock on
Headset:
Raymon ZS44/ZS56
Wheels
Wheel size:
29"
Wheelset:
Raymon VR23/DT210, 15x110/12x148 mm
Tires:
Schwalbe Smart Sam, Performance, 57-622, 29x2.25
Saddle and components
Saddle:
Raymon HM Fit
Seat post:
Raymon, 31,6 mm, Dropper Post
Seat post clamp:
34,9, hex screw
Weight and dimensions
Weight:
17,1 kg
Maximum load (rider+bicycle):
120 kg

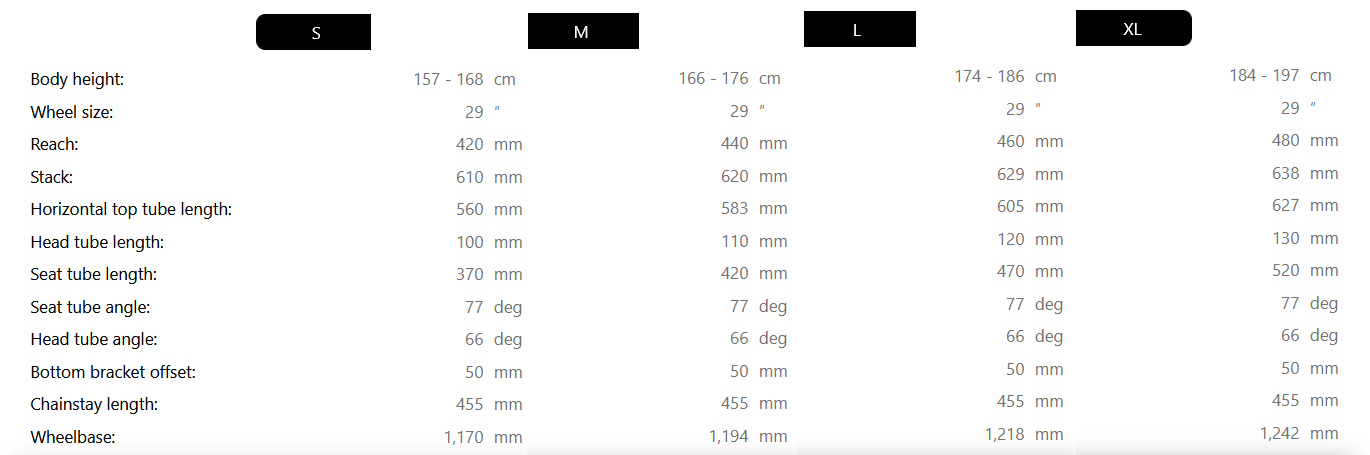

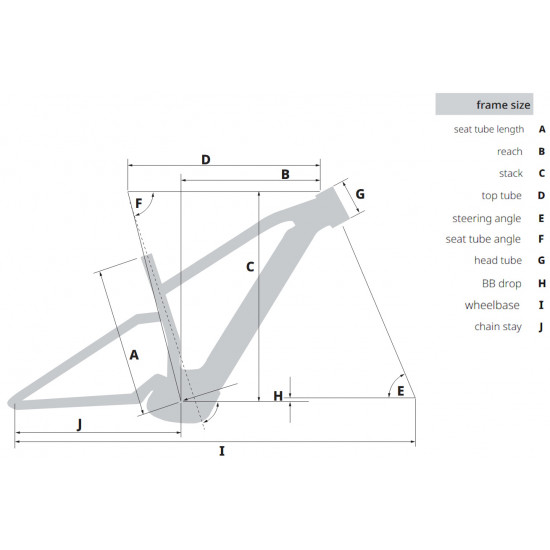

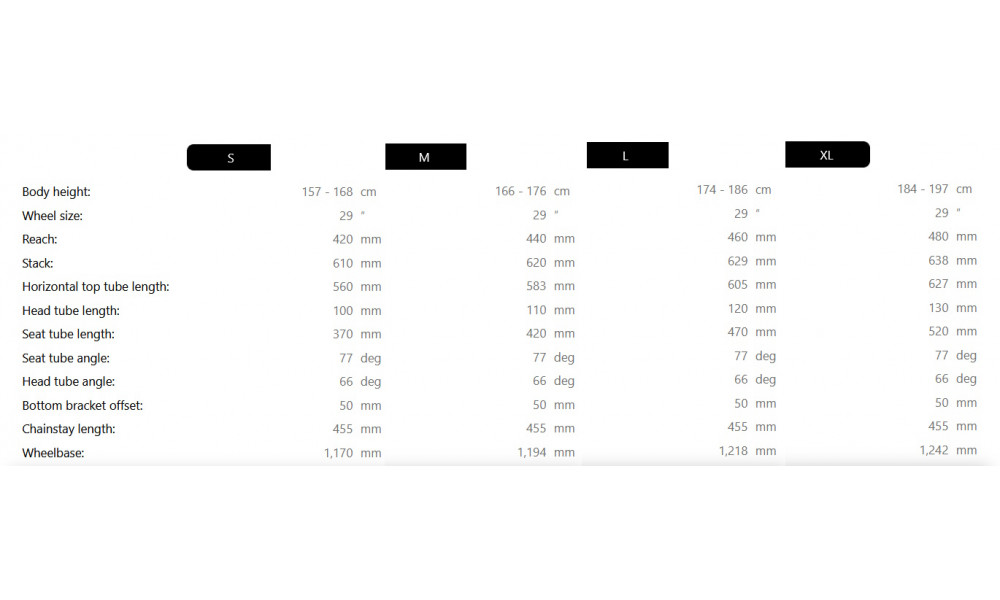

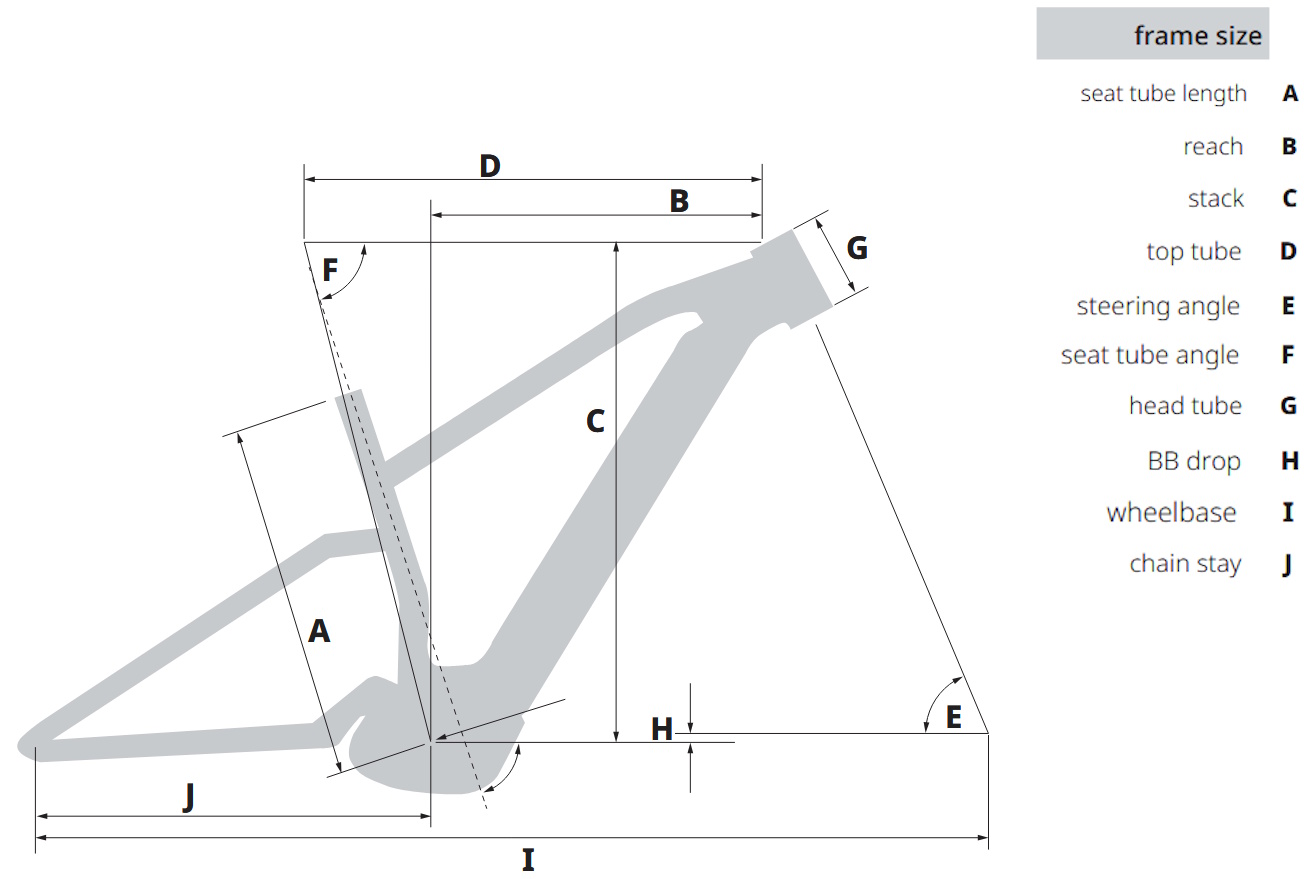

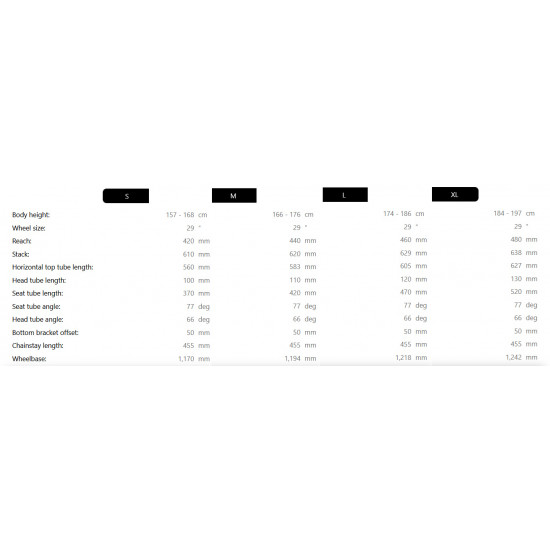

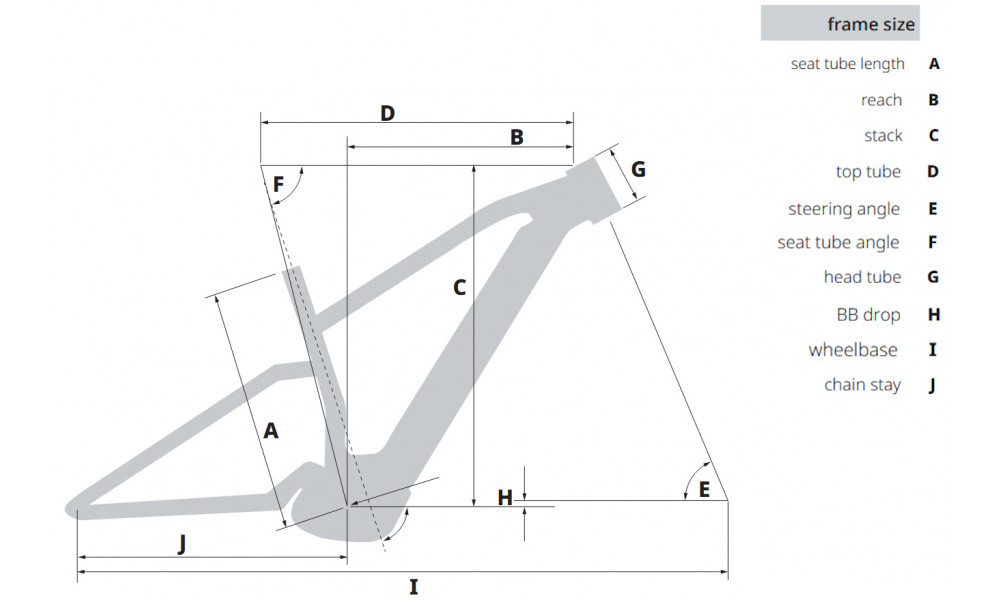

Frame geometry
- Seat tube length: 370 mm
- Reach: 420 mm
- Stack: 610 mm
- Top tube: 560 mm
- Steering angle: 66 mm
- Seat tube angle: 77 mm
- Head tube: 100 mm
- BB drop: 50 mm
- Wheelbase: 1170 mm
- Chain stay: 455 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 780 mm
- Seatpost drop: 125 mm
- Ground clearance: 250 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
