Bicycle Raymon Rokua 170 Ultra 29" 2025 carbon matt

Product code: 7102500130

Frame size:

Product availability will be shown after you select the product size
Ask about a product
close
INQUIRY ABOUT PRODUCT
Bicycle Raymon Rokua 170 Ultra 29" 2025 carbon matt

Bicycle preparation options
Description - Bicycle Raymon Rokua 170 Ultra 29" 2025 carbon matt
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.

Bicycle technical specifications

Frame and suspension
Frame:
Carbon MLC Composite, boost, 170 mm
Shock:
FOX Float X Factory, air, 225x75 mm
Fork:
FOX Float 38 Factory, Grip X, air, 170 mm, tapered
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Shimano Deore XT, RD-M8100, Shadow Plus, 12-S
Shifters:
Shimano Deore XT, SL-M8100, Rapidfire Plus
Crankset:
Shimano Deore XT, FC-M8100, 34T
Cassette:
Shimano CS-M7100, 10-51T
Chain:
Shimano CN-M7100
Brake system
Brakes:
Shimano Deore XT, BR-M8120, 4-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm
Stem:
Raymon 35, 0 °, Ahead
Grips:
Raymon Ergo, lock on
Headset:
FSA NO.69/62, Internal Cable Routing
Wheels
Wheel size:
29"
Wheelset:
DT Swiss E 1900 Spline, Tubeless ready, Center Lock, 15x110/12x148mm
Front tire:
Continental Kryptotal-F, Enduro, SuperSoft, 60x622, 29x2.40
Rear tire:
Continental Kryptotal-R, Enduro, Soft, 60x622, 29x2.40
Tires:
Continental Kryptotal-F, Enduro, SuperSoft, 60x622, 29x2.40
Saddle and components
Saddle:
Raymon 143 VM Fit
Seat post:
Raymon, 31,6 mm, Dropper Post
Seat post clamp:
34,9, hex screw
Weight and dimensions
Weight:
15,1 kg
Maximum load (rider+bicycle):
120 kg

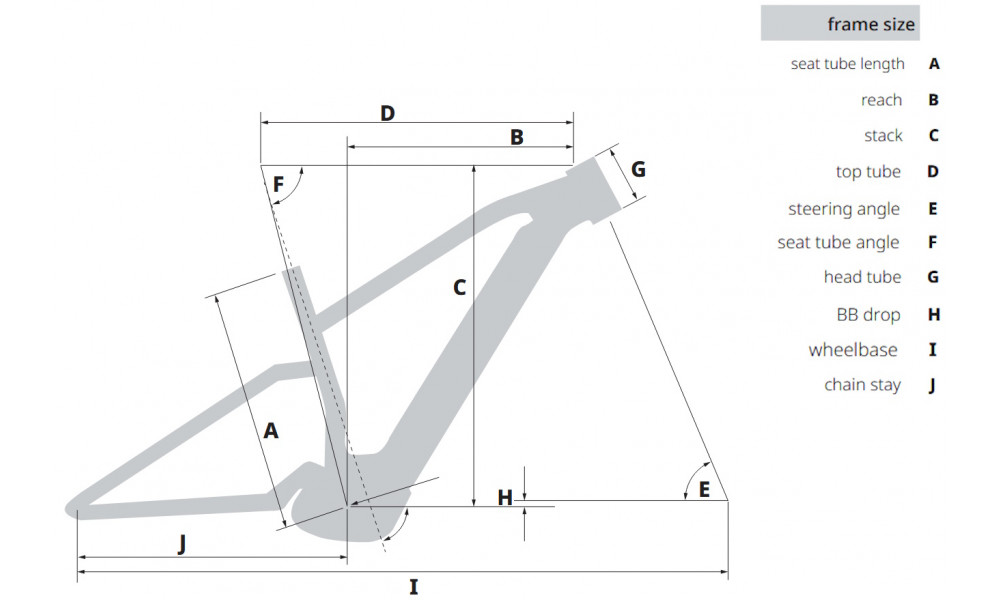

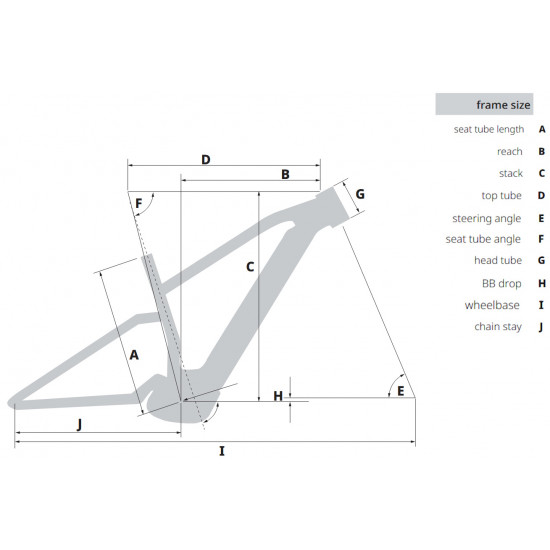

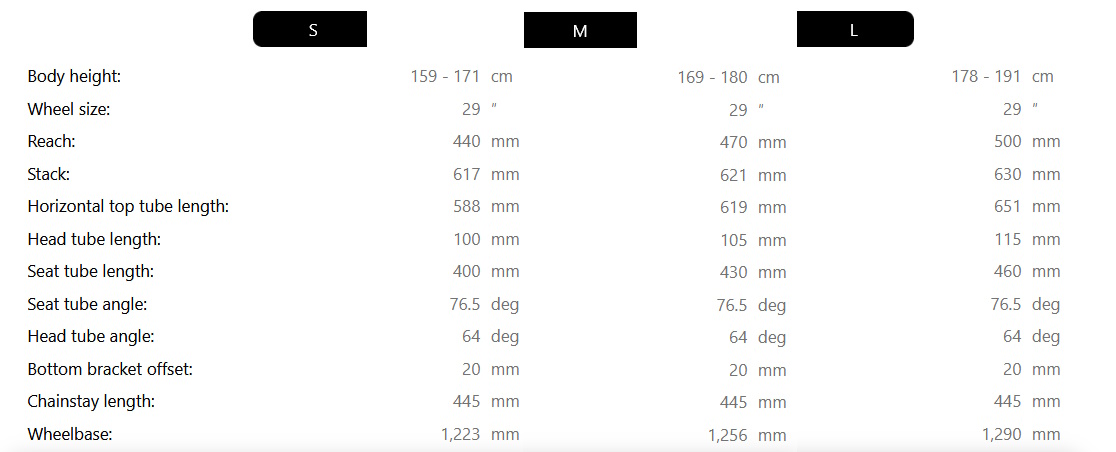

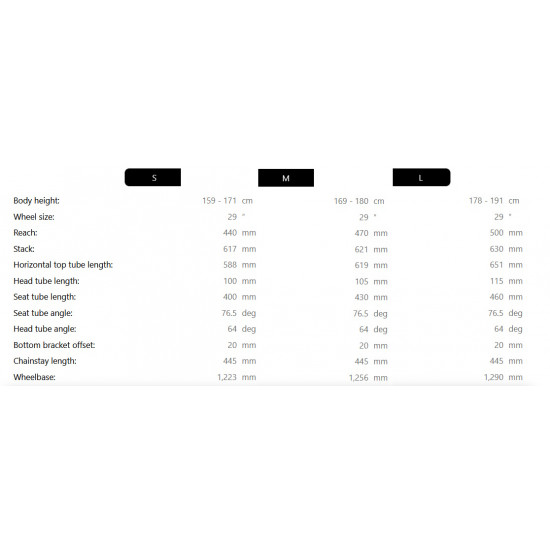

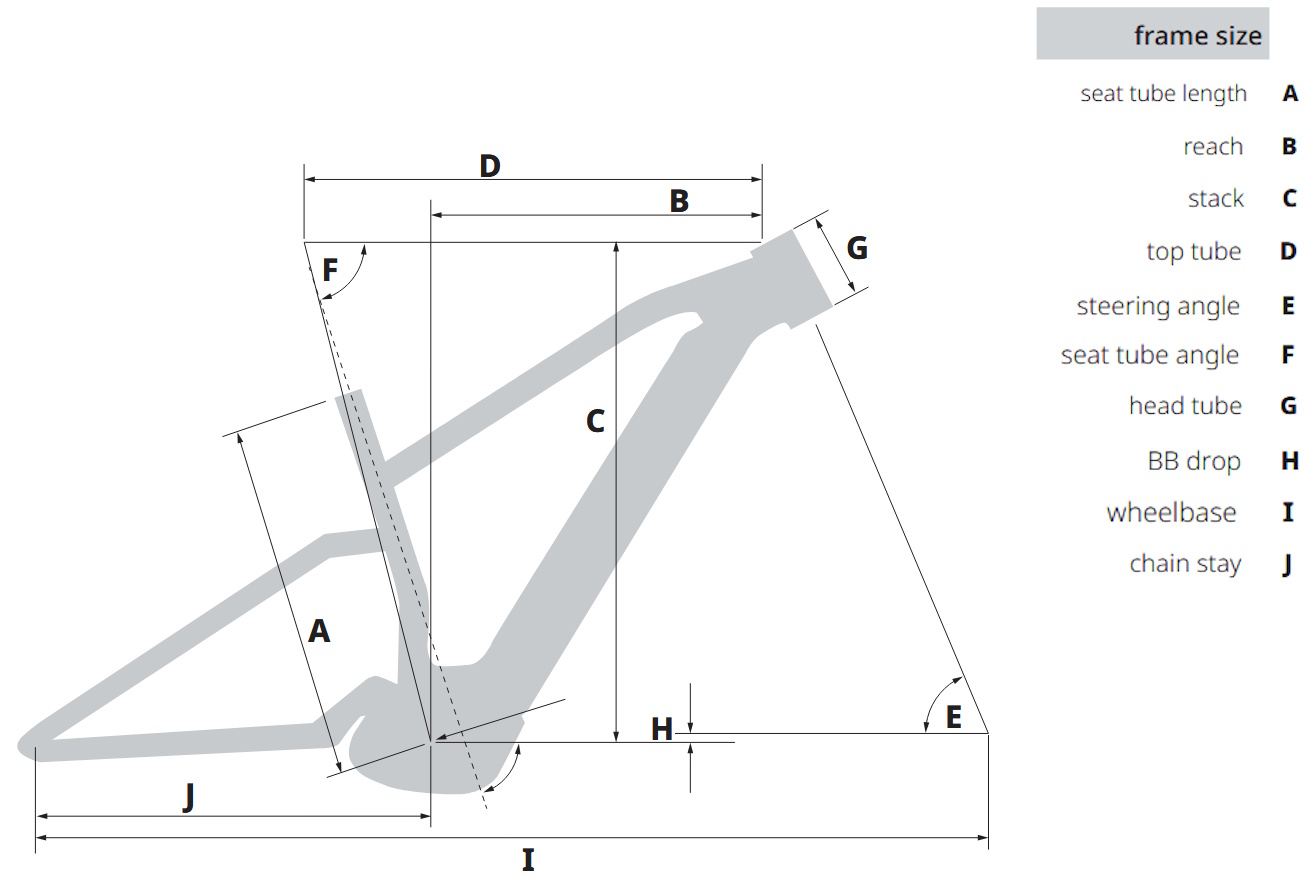

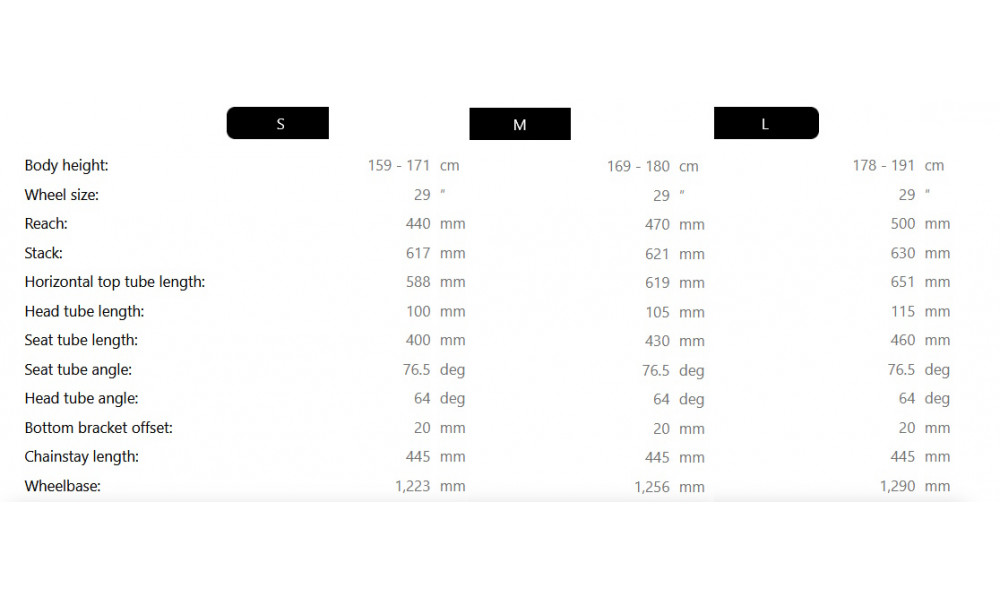

Frame geometry

  • Seat tube length: 400 mm
  • Reach: 440 mm
  • Stack: 617 mm
  • Top tube: 588 mm
  • Steering angle: 64 mm
  • Seat tube angle: 76,5 mm
  • Head tube: 100 mm
  • BB drop: 20 mm
  • Wheelbase: 1223 mm
  • Chain stay: 445 mm
  • Crank length: 114 mm
  • Stem length: 40 mm
  • Handlebar width: 780 mm
  • Seatpost drop: 125 mm
  • Ground clearance: 280 mm
  • Standover: 756 mm
Product Details
Product name
Bicycle Raymon Rokua 170 Ultra 29" 2025 carbon matt
Product code
7102500130
Manufacturer
RAYMON
Barcode
710497327268
Type
Man
Frame material
Carbon
Front suspension
Yes
Rear suspension
Yes
Disc brakes
Yes
Year
2025
Color
BLACK
More
Less
Bicycle preparation options
Delivery
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself - Free / Delivery time 5-10 business days

The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
