Description - Bicycle Raymon Yanga 20 2025 orange-purple
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Aluminium 6061
Fork:
HiTen unicrown
Drivetrain
Speeds:
7
Drivetrain system:
1x7
Drivetrain type:
External
Rear derailleur:
Shimano Tourney, RD-TY200, 7-S
Shifters:
Shimano SL-RV200, RevoShift
Crankset:
Prowheel, 36T
Freewheel:
Shimano MF-TZ500, 14-34T
Chain:
YBN S50
Brake system
Brakes:
V-Brake
Cockpit
Handlebar:
Raymon Riser 25,4mm, 540mm, 40mm
Stem:
Raymon 25,4, Ahead
Grips:
Raymon Kid, lock on
Headset:
Raymon EC34/EC34
Wheels
Wheel size:
20"
Wheelset:
Raymon A-M1/A52, QR
Front tire:
Schwalbe Smart Sam, 20x2.4
Tires:
Schwalbe Smart Sam, 20x2.4
Saddle and components
Saddle:
Raymon 134 active control
Seat post:
Raymon, 27,2x250mm
Seat post clamp:
31,8, quick release
Accessories
Kickstand:
Aluminium, adjustable
Weight and dimensions
Weight:
9,3 kg
Maximum load (rider+bicycle):
60 kg

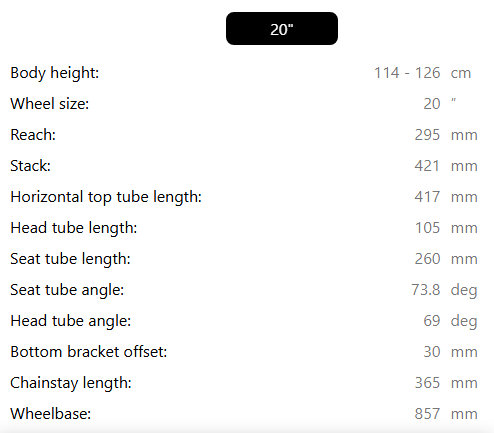

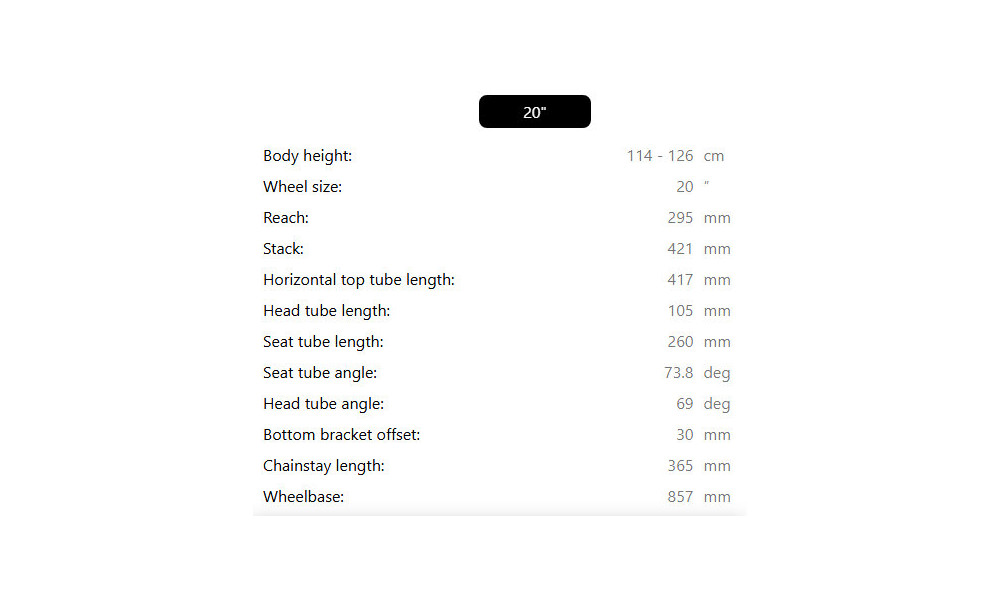

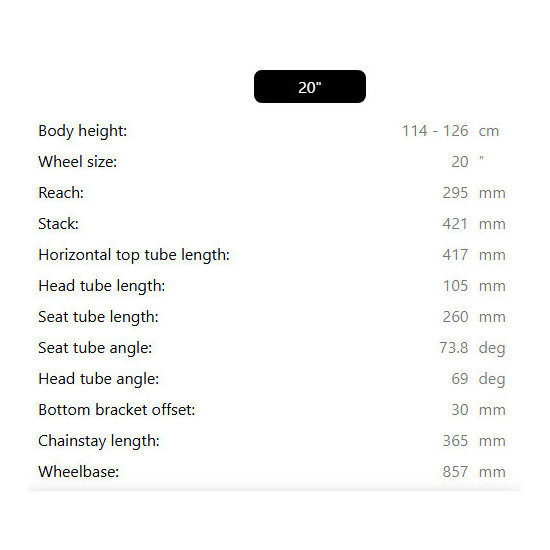

Frame geometry
- Seat tube length: 260 mm
- Reach: 295 mm
- Stack: 421 mm
- Top tube: 417 mm
- Steering angle: 69 mm
- Seat tube angle: 72 mm
- Head tube: 105 mm
- BB drop: 30 mm
- Wheelbase: 857 mm
- Chain stay: 365 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 540 mm
- Seatpost length: 250 mm
- Ground clearance: 135 mm
- Standover: 515 mm
Product Details
More
Bicycle preparation options

Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
