Description - E-bike Raymon Tarok Ultra 29/27.5" 2025 carbon-silver-taupe
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle specifications
E-bike system
Engine:
ZF CentriX, 250/600 W, 90 Nm
Bicycle computer:
ZF Pure Remote
Remote:
ZF Color Display
Battery:
ZF SI756, 756 Wh, 48 V
Charger:
ZF BC200, 4 A
Frame and suspension
Frame:
Carbon HSC Composite, removeable battery, boost, 160 mm
Shock:
FOX Float X2 Factory, air, 205x65 mm
Fork:
FOX Float 38 Factory, Grip X2, E-Optimized, air, 160 mm, tapered
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Sram X0 Eagle Transmission, 12-S
Shifters:
Sram AXS Pod Controller
Crankset:
Sram Eagle Transmission E-MTB, 34T
Cassette:
Sram XS 1295, 10-52T
Chain:
Sram X0 Eagle Transmission Flattop
Brake system
Brakes:
Sram Maven Silver, 4-piston, hydr. disc brake
Cockpit
Handlebar:
Race Face Next Carbon 35 mm, Sweep: 8 °, Rise: 20 mm
Stem:
Race Face Affect 35 mm, 0 °, Ahead
Grips:
Raymon MTB, lock on
Headset:
Acros AZF-644, HBS, Internal Cable Routing
Wheels
Wheel size:
29"/27.5"
Wheelset:
Newmen Phase 30 base/strong, Tubeless ready, 6-bolt, 15x110/12x148mm
Front tire:
Continental Kryptotal-F, Enduro, SuperSoft, 60x622, 29x2.40
Rear tire:
Continental Kryptotal-R, Downhill, Soft, 60x584, 27.5x2.40
Tires:
Continental Kryptotal-F, Enduro, SuperSoft, 60x622, 29x2.40
Saddle and components
Saddle:
Raymon 143 VM Fit
Seat post:
Raymon, 34,9 mm, Dropper Post
Seat post clamp:
Semi integrated, 40, hex screw
Accessories
Weight and dimensions
Weight:
22,9 kg
Maximum load (rider+bicycle):
130 kg

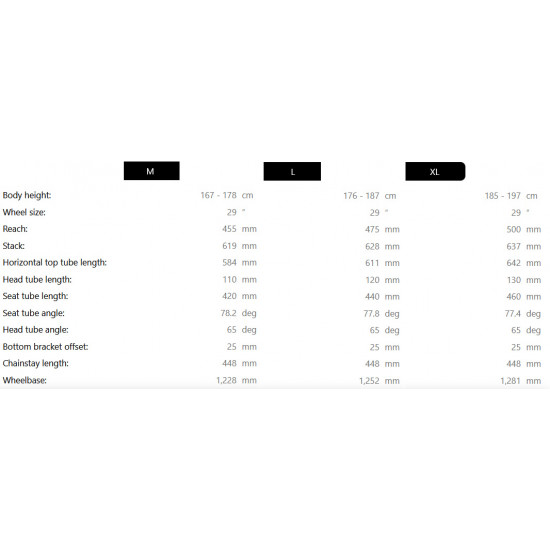

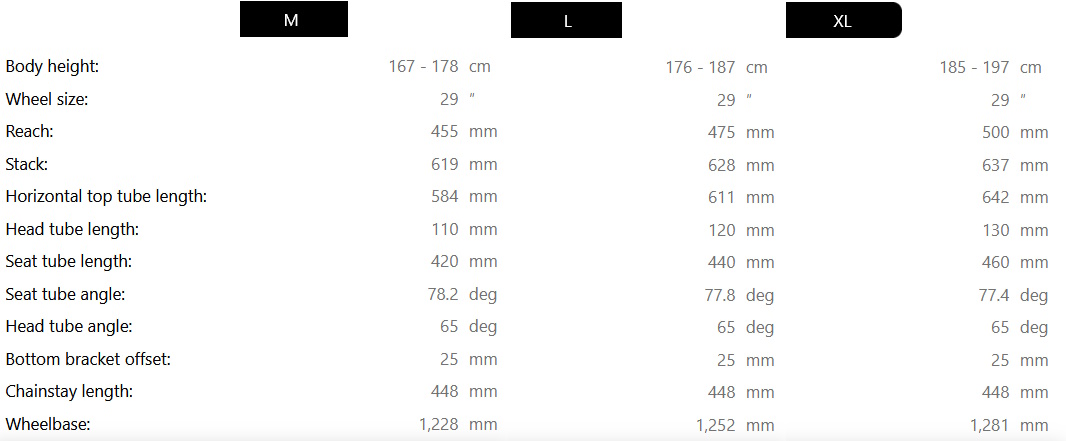

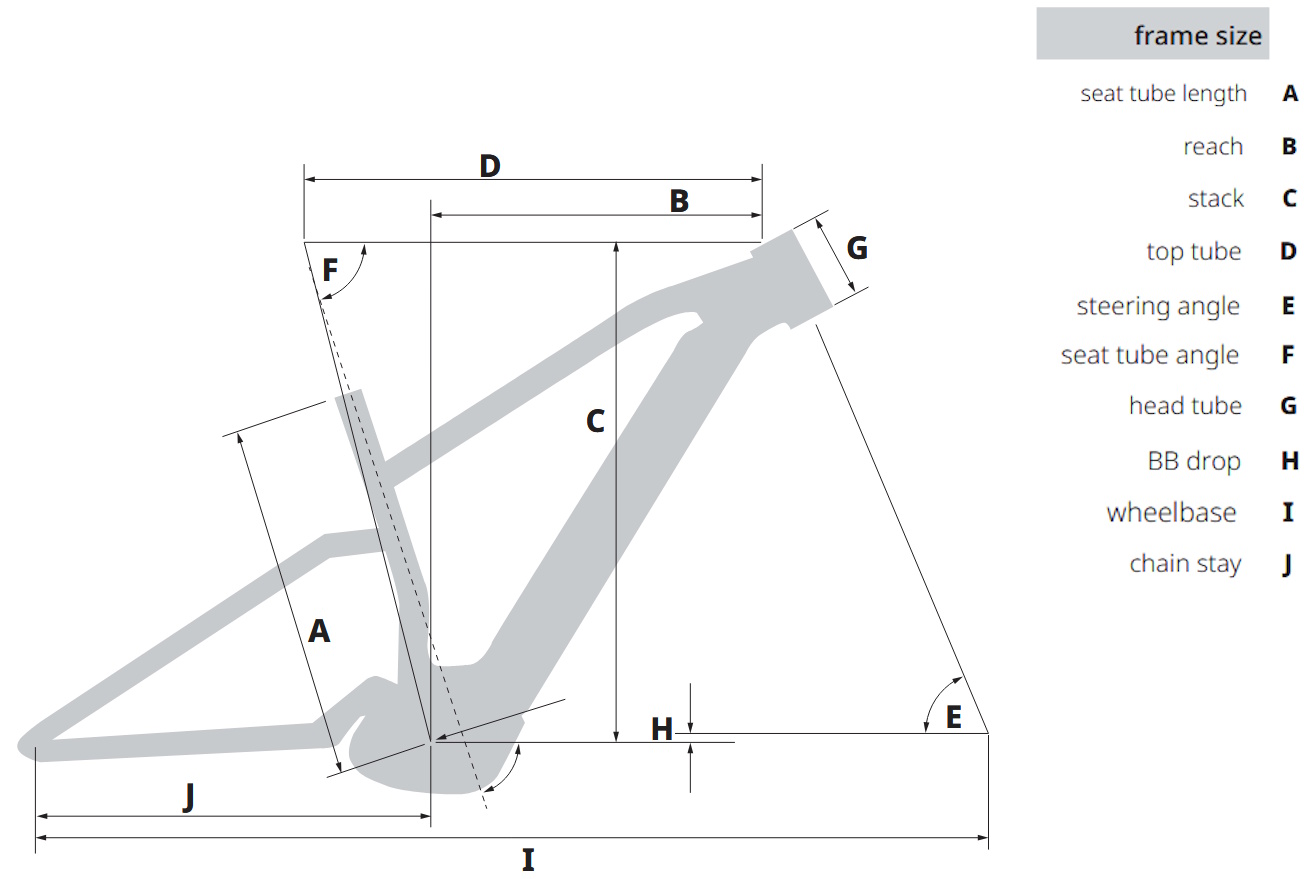

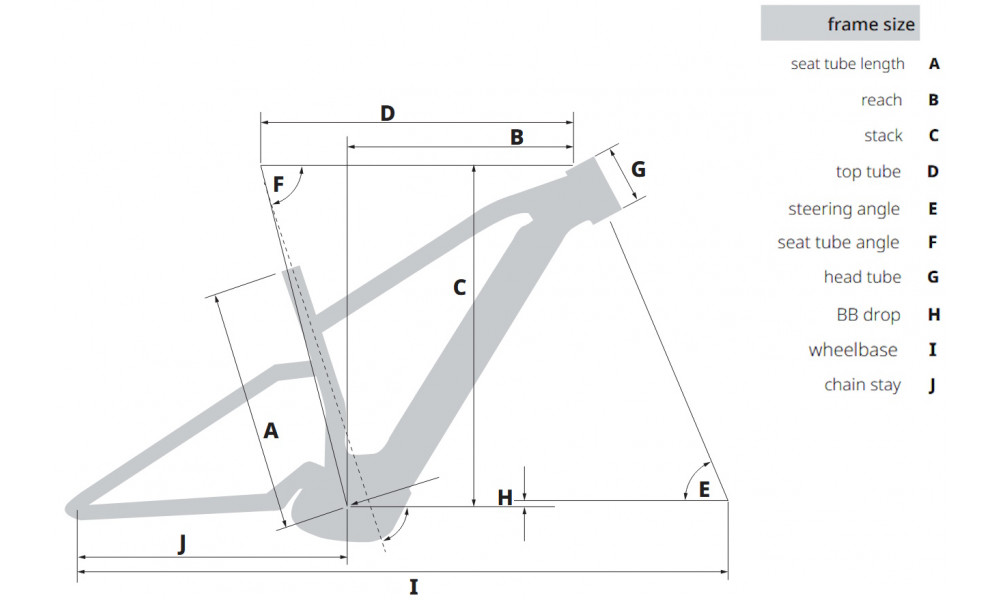

Frame geometry
- Seat tube length: 420 mm
- Reach: 453 mm
- Stack: 627 mm
- Top tube: 581 mm
- Steering angle: 64,7 mm
- Seat tube angle: 78,4 mm
- Head tube: 110 mm
- BB drop: 22 mm
- Wheelbase: 1231 mm
- Chain stay: 443 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 780 mm
- Seatpost drop: 150 mm
- Ground clearance: 270 mm
- Standover: 730 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
