Description - Bicycle Raymon Yanga 24 Pro 2025 grey-white-lime
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Aluminium 6061
Fork:
Aluminium Disc
Drivetrain
Speeds:
8
Drivetrain system:
1x8
Drivetrain type:
External
Rear derailleur:
Shimano Acera, RD-M3020-8, 8-S
Shifters:
Shimano SL-M315, Rapidfire Plus
Crankset:
Prowheel, 36T
Cassette:
Shimano CS-HG400, 11-40T
Chain:
YBN S50
Brake system
Brakes:
Tektro HD-J290, hydr. disc brake
Cockpit
Handlebar:
Raymon Riser 25,4mm, 580mm, 40mm
Stem:
Raymon 25,4, Ahead
Grips:
Raymon Kid, lock on
Headset:
Raymon EC34/EC34
Wheels
Wheel size:
24"
Wheelset:
Raymon A-M1/K68, QR
Front tire:
Schwalbe Smart Sam, 24x2.4
Tires:
Schwalbe Smart Sam, 24x2.4
Saddle and components
Saddle:
Raymon 134 active control
Seat post:
Raymon, 27,2x250mm
Seat post clamp:
31,8, quick release
Accessories
Kickstand:
Aluminium, adjustable
Weight and dimensions
Weight:
10,8 kg
Maximum load (rider+bicycle):
80 kg

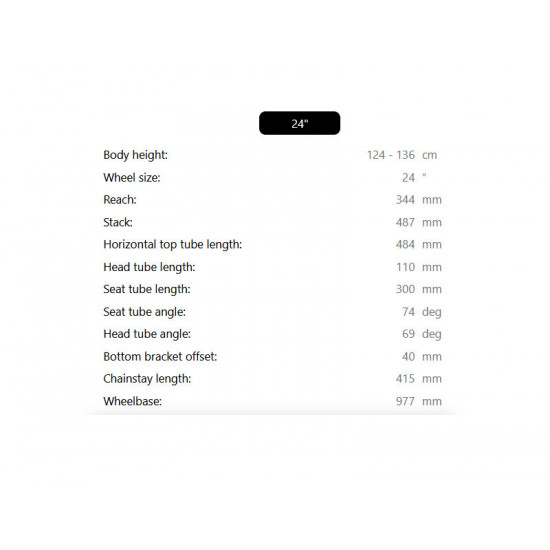

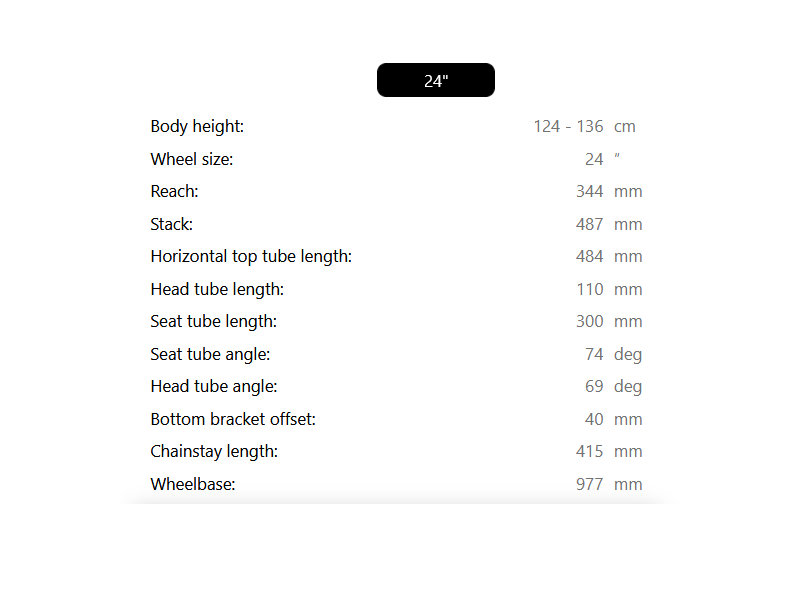

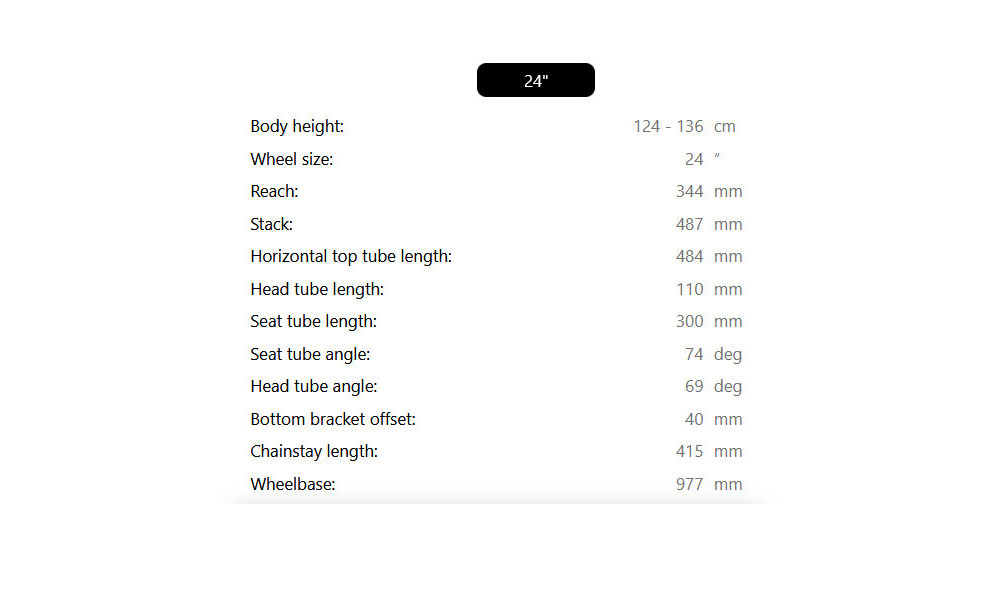

Frame geometry
- Seat tube length: 300 mm
- Reach: 344 mm
- Stack: 487 mm
- Top tube: 484 mm
- Steering angle: 69 mm
- Seat tube angle: 72 mm
- Head tube: 110 mm
- BB drop: 40 mm
- Wheelbase: 977 mm
- Chain stay: 415 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 580 mm
- Seatpost length: 300 mm
- Ground clearance: 180 mm
- Standover: 600 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
