Description - Bicycle Raymon Arid Pro 29" 2025 carmine red matt
Over 100 years of bicycle DNA. Our family stands for courage, experience and vision - qualities that live on in every Raymon bike. With this tradition behind us, we create bikes that offer exactly what you are looking for on and off road.
Bicycle technical specifications
Frame and suspension
Frame:
Carbon MLC Composite, boost
Fork:
RockShox Recon Silver, Solo Air, air, 100 mm
Drivetrain
Speeds:
12
Drivetrain system:
1x12
Drivetrain type:
External
Rear derailleur:
Shimano Deore XT, RD-M8250, 12-S
Shifters:
Shimano SLX, SL-M7100, Rapidfire Plus
Crankset:
Shimano Deore XT, FC-M8100, 34T
Cassette:
Shimano CS-M6100, 10-51T
Chain:
Shimano CN-M6100
Brake system
Brakes:
Magura MT4, 2-piston, hydr. disc brake
Cockpit
Handlebar:
Raymon Aluminium 31,8mm, Sweep: 6°, Rise: 10mm
Stem:
Raymon Aluminium 31,8mm
Grips:
Raymon MTB, lock on
Headset:
FSA NO.69/62/SRS/Dual/CUP
Wheels
Wheel size:
29"
Wheelset:
Raymon VR23/DT210, 15x110/12x148 mm
Front tire:
Schwalbe Racing Ralph, Performance, 57-622, 29x2.25
Tires:
Schwalbe Racing Ralph, Performance, 57-622, 29x2.25
Saddle and components
Saddle:
Raymon 143 VM Fit
Seat post:
Raymon, 31,6 mm
Seat post clamp:
34,9, hex screw
Weight and dimensions
Weight:
12,6 kg
Maximum load (rider+bicycle):
120 kg

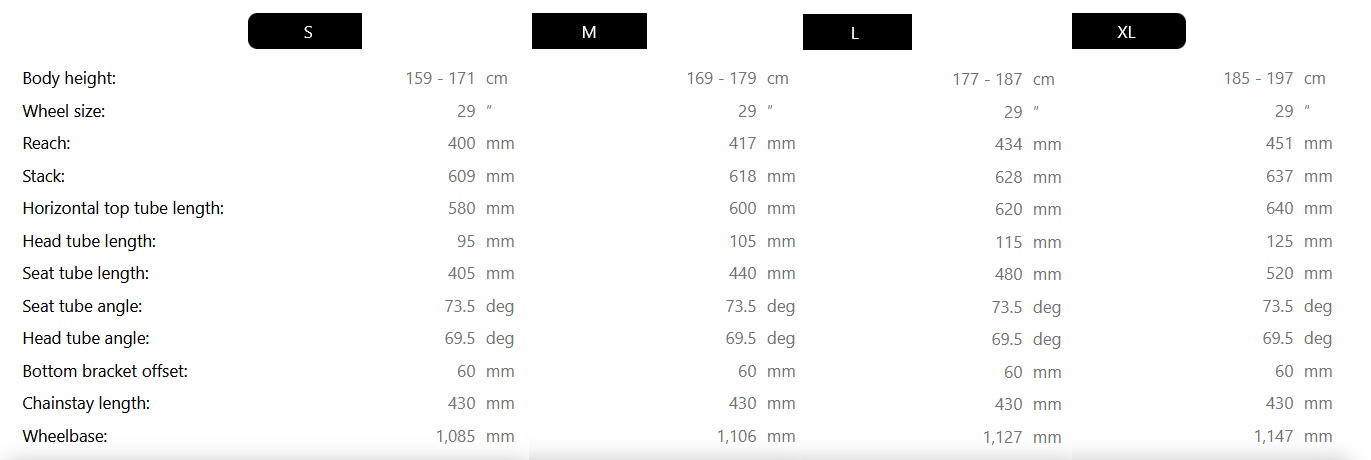

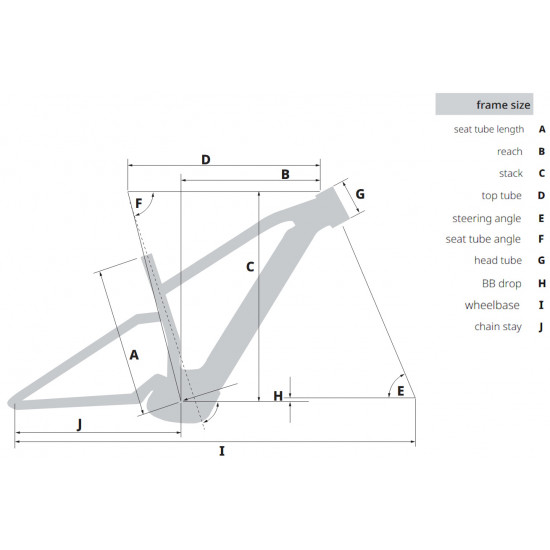

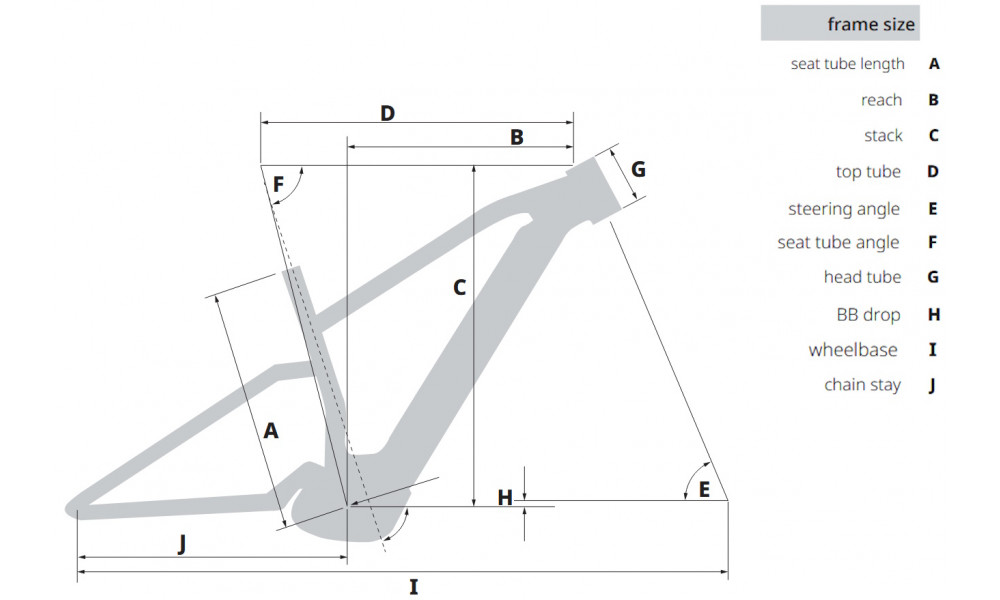

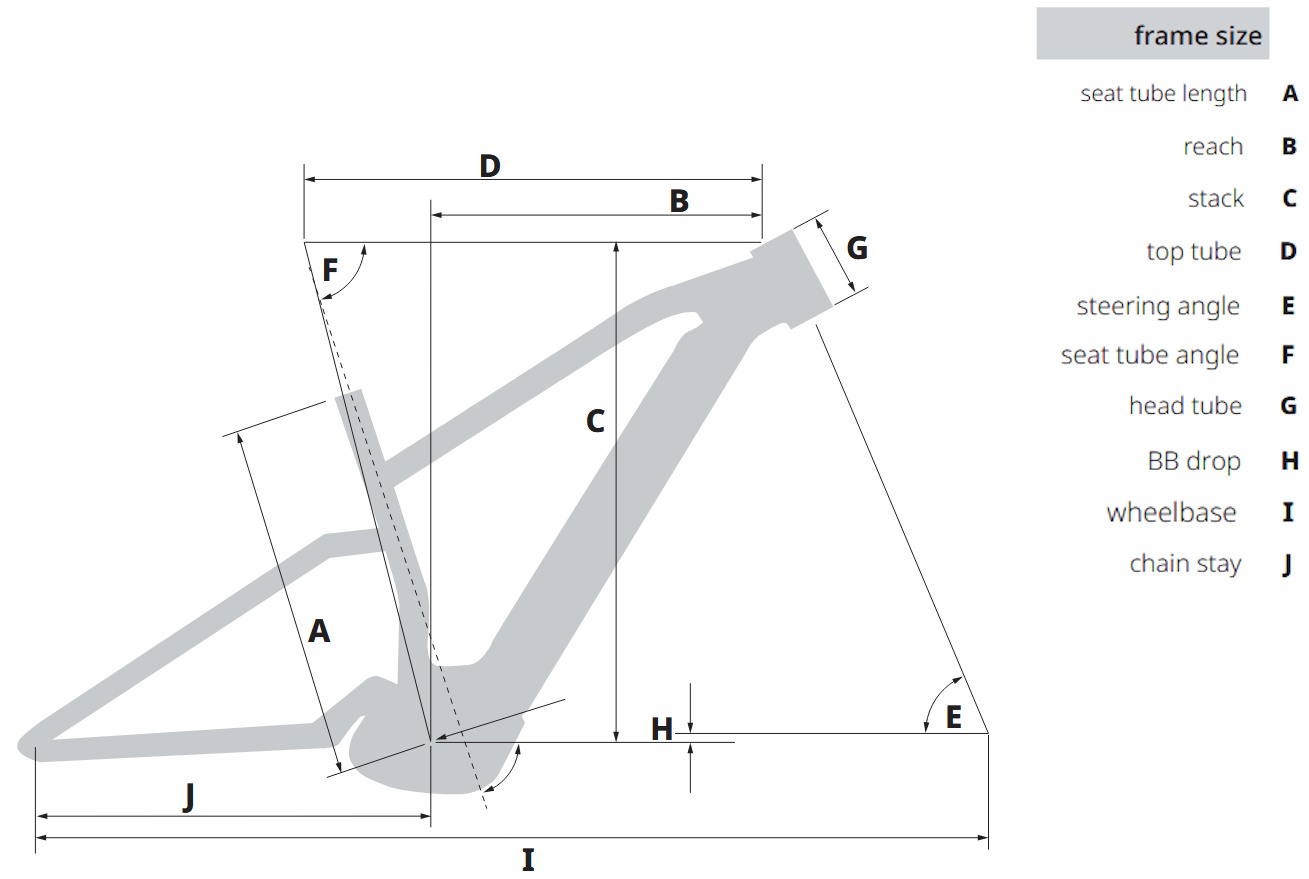

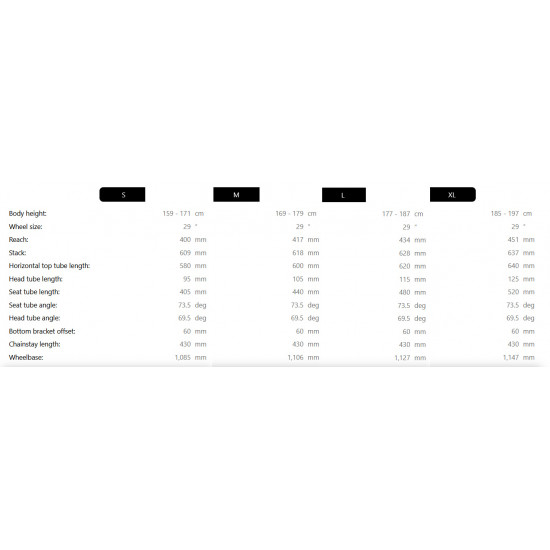

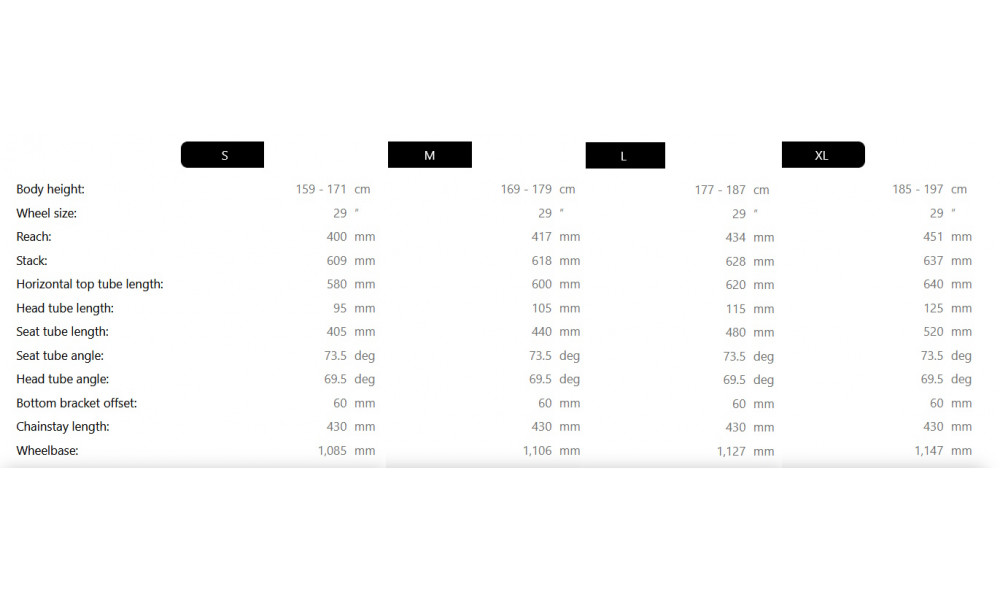

Frame geometry
- Seat tube length: 405 mm
- Reach: 400 mm
- Stack: 609 mm
- Top tube: 580 mm
- Steering angle: 69,5 mm
- Seat tube angle: 71 mm
- Head tube: 95 mm
- BB drop: 60 mm
- Wheelbase: 1085 mm
- Chain stay: 430 mm
- Crank length: 114 mm
- Stem length: 40 mm
- Handlebar width: 740 mm
- Seatpost length: 350 mm
- Ground clearance: 240 mm
- Standover: 740 mm
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
