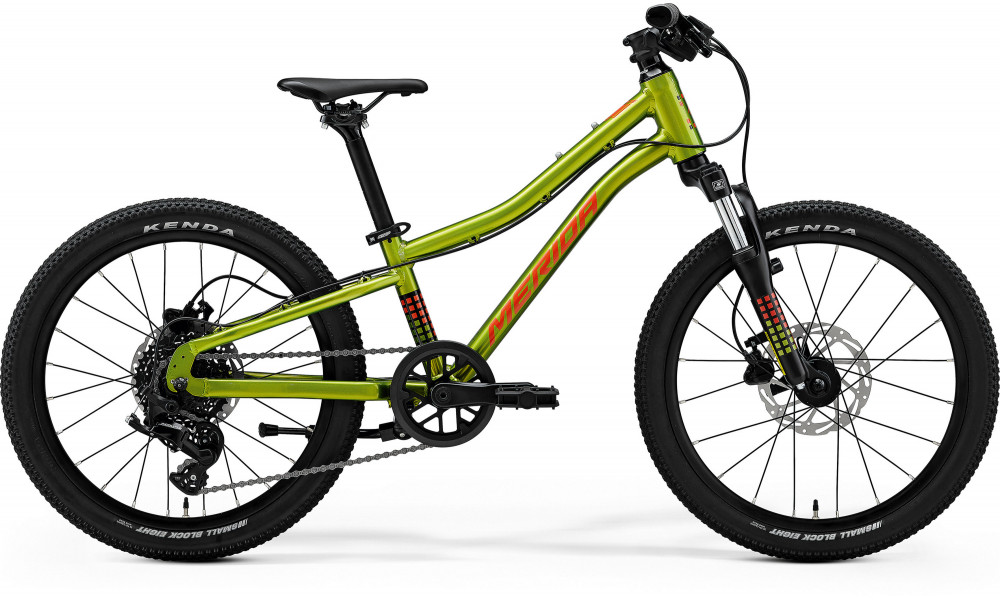

Description - Bicycle Merida Matts J.20 2026 fall green(red/black)
Bicycle technical specifications
Frame and suspension
Frame:
MATTS J. 20+; aluminium; 20x2.4" maximum wheel size; 135x9/100x9mm; BSA
Fork:
SR Suntour XCT-JR P; Custom coil; 40 STR; 20x2.2" maximum wheel size
Drivetrain type:
Drivetrain groupset:
Microshift Acolyte
Speeds:
8
Speeds:
1x8
Rear derailleur:
Microshift Acolyte Speed Super Short Cage; RD-M5180S; Super short cage
Rear shifter:
Microshift Acolyte Quick Trigger Pro; SL-M6285-ER; Super short reach; Gear indicator; single click
Crankset:
Prowheel A10PP; 32T; aluminium, Crank size: 114 mm
Cassette:
Sun Race M55; 11-34T; 8-speed
Chain:
KMC Z8.3
Bottom bracket:
Squared LL116
Pedals:
VP-225
Brake system
Front brakes:
Tektro HD-J2820; hydraulic disc brake; short reach
Rear brakes:
Tektro HD-J2820; hydraulic disc brake; short reach
Brake discs:
Front: Tektro TR160-52; 160mm, Rear: Tektro TR160-52; 160mm
Cockpit
Handlebar:
MERIDA EXPERT JR; aluminium; 560mm length; 25mm rise
Stem:
MERIDA COMP CC; aluminium; 31.8mm handlebar center diameter; 7° angle, Length: 50mm
Grips:
MERIDA EXPERT JR
Headset:
FSA NO.10P Neck15, Compressor: FSA-TH-874-1, Spacers: Plastic 10mmx2+5MMx2
Wheels
Wheel size:
20
Rims:
MERIDA JR 20+; aluminium
Front hub:
KT-K68F; 100x9mm; 20H
Rear hub:
KT-TD7R-M10; 135x9mm; 24H
Front tire:
Kenda Small Black 8; 20x1.95"; wired
Rear tire:
Kenda Small Black 8; 20x1.95"; wired
Tubes:
F.V lite
Spokes:
Black steel
Saddle and components
Saddle:
MERIDA COMP JR
Seat post:
MERIDA COMP QR
Seat post clamp:
MERIDA COMP CC; 27.2mm diameter; 0mm setback; aluminium
Accessories
Kickstand:
kickstand adjustable alloy
Bell:
YWS-Alloy
Weight and dimensions
Weight:
10.2 kg
Maximum load (bicycle+cyclist):
60 kg
Product Details
More
Bicycle preparation options
Manufacturer’s packaging
You will need to prepare the bicycle for riding yourself
- Free
/ Delivery time 5-10 business days
The bicycle is sent in the original manufacturer’s packaging (usually with the front wheel, handlebar, and saddle removed), which ensures the safety of the items during storage and transportation. When purchasing of a bicycle in such a packaging, the Buyer himself or his chosen bicycle mechanic must properly prepare it for use - assemble, tighten, and adjust it.
